Cisco GLC-TE Compatible Module - 1000BASE-T Copper Industrial Gigabit Ethernet Transceiver - SFP to
- Cisco GLC TE Compatible Transceiver | 1000BASE-TX (1 Gbps)
- Up to 328' (100 m)/Industrial Temp Gigabit Ethernet SFP
- RJ-45 Connector/Cat5e/CAT6 Copper/SFP to LAN
- For Cisco switches like C1000 | C2960S | C3560 | C3750 | C9400 | C9500 | N3500 | N2000 | N5000 | N7000 | N7700 | IE2000 | Firepower | ISR4000 | F3-Series
- Hot-Swappable/MSA Compliant
- Backed by StarTech.com on the module itself and not the life of the OEM switch/router and will not void OEM warranty
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The GLCTEST is a Cisco GLC-TE compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers for extended temperatures. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Copper
- Maximum data transfer rate
- 1250 Mbit/s
- Interface type
- SFP
- Maximum transfer distance
- 100 m
- Networking standards
- IEEE 802.3
- Copper ethernet cabling technology
- 1000BASE
- Digital Diagnostics Monitoring (DDM)
- No
Features
- Product colour
- Silver
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 4655371 h
- Brand compatibility
- Cisco
- Compatible products
- C1000, C2960S, C3560, C3750, C9400, C9500, N3500, N2000, N5000, N7000, N7700, UCSB, IE2000, Firepower, ISR4000
Power
- Power consumption (typical)
- 1.3 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, REACH
Operational conditions
- Operating temperature (T-T)
- -40 - 85 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 30 - 75%
Weight & dimensions
- Width
- 14 mm
- Depth
- 65 mm
- Height
- 12 mm
- Weight
- 72 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 113 mm
- Package depth
- 91 mm
- Package height
- 34 mm
- Package weight
- 50 g
Logistics data
- Master (outer) case width
- 430 mm
- Master (outer) case length
- 345 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 359 mm
- Products per master (outer) case
- 120 pc(s)
- Country of origin
- China
Downloads
More in Connectors & Cable Management

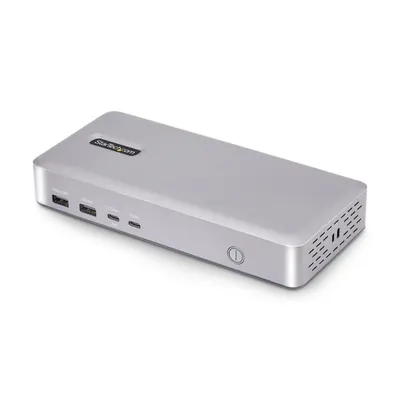

StarTech.comUSB4 USBC 40Gbps docking station with driverless setup; Dock works wit155NA-USB4-DOCK

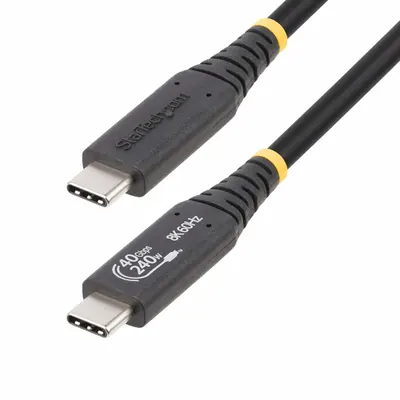

StarTech.com3.3ft/1m Certified USB4 cable supports 40 Gbps 8K video and 240W Exten1M-40G-USB4-CABLE

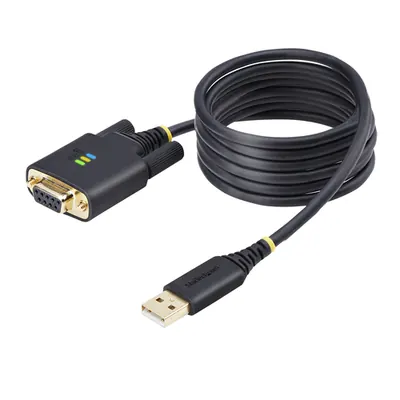

StarTech.comAdd a Null Modem DB9 RS-232 serial port to a desktop/laptop using a US1P6FFCN-USB-SERIAL

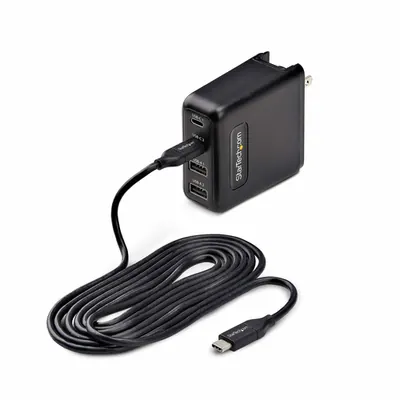

StarTech.com100W GaN USBC wall charger with PD 3.0 for fast charging with multiple2210GCN-WALL-CHARGER

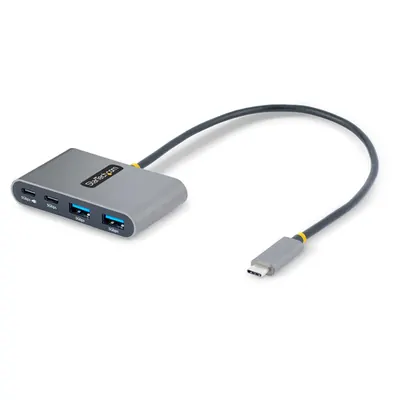

StarTech.comUSB-C laptop expansion hub with 2x USB-A and 2x USB-C incl. 1x USB PD 5G2A2CPDB-USB-C-HUB

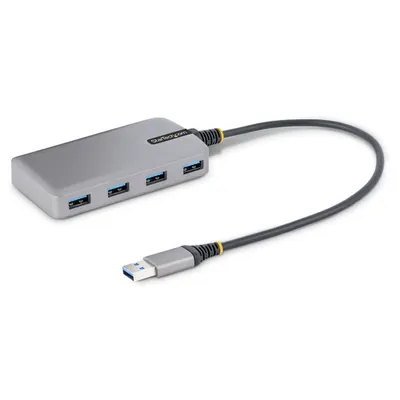

StarTech.comPortable USB-A expansion hub for laptop or desktop computers - USB 3.25G4AB-USB-A-HUB

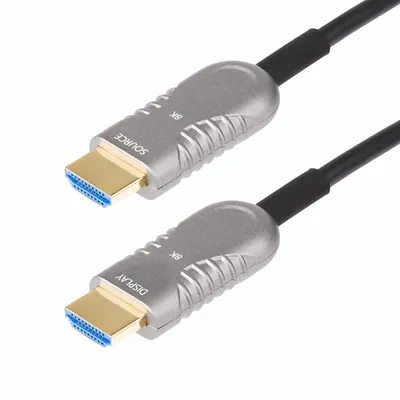

StarTech.comRoute this Ultra High Speed HDMI 2.1 Hybrid Active Optical Cable (AOC)8K-A-100F-HDMI-CABLE

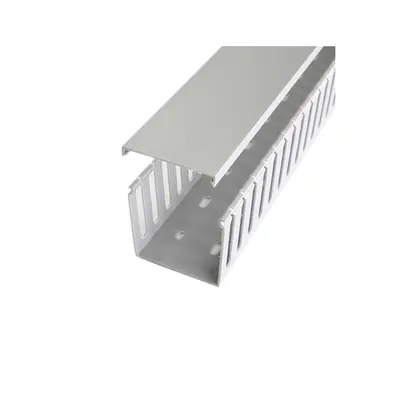

StarTech.com3X3 Inch Open Slot Wiring Raceway Duct With LidAD3X3
