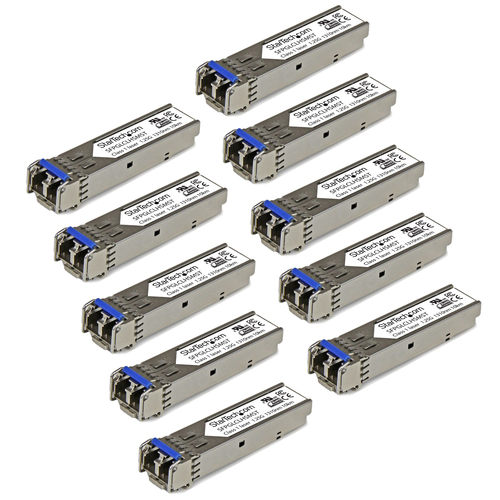

10 Pack Cisco GLC-LH-SM Compatible SFP Module (10 Pack) - 1000BASE-LX/LH - 1GbE Single Mode Fiber
- Cisco GLC-LH-SM Compatible SFP 1000BASE-LX/LH (1 Gbps) Gigabit Ethernet
- 1310nm | Single Mode (SMF)/Multi Mode (MMF)
- Up to 10km (6.2mi)
- LC Connector DDM
- For Cisco switches like: Firepower ASR920 IE2000 IE4000 ASR1000 ASR9000 C9300 IE3000
- Hot-Swappable and MSA Compliant
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The GLCLHSM10PST is a Cisco GLC-LH-SM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode / Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): No
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 1250 Mbit/s
- Interface type
- SFP
- Multi-mode fiber (MMF) supported
- Yes
- Fiber optic connector
- LC
- SFP transceiver standard
- LH, LX
- Maximum transfer distance
- 10000 m
- Wavelength
- 1310 nm
- Networking standards
- IEEE 802.3z
- Duplex system
- Full
- Auto MDI/MDI-X
- Yes
- Digital Diagnostics Monitoring (DDM)
- No
- Fiber ports quantity
- 1
Features
- Product colour
- Silver
- Housing material
- Steel, Aluminium
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 3092408 h
Power
- Power consumption (typical)
- 1 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, UL
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 13.7 mm
- Depth
- 56.6 mm
- Height
- 12.5 mm
- Weight
- 25 g
Packaging content
- Quantity per pack
- 10 pc(s)
Packaging data
- Package width
- 120 mm
- Package depth
- 201 mm
- Package height
- 36 mm
- Package weight
- 250 g
Logistics data
- Master (outer) case width
- 362 mm
- Master (outer) case length
- 416 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 347 mm
- Products per master (outer) case
- 50 pc(s)
