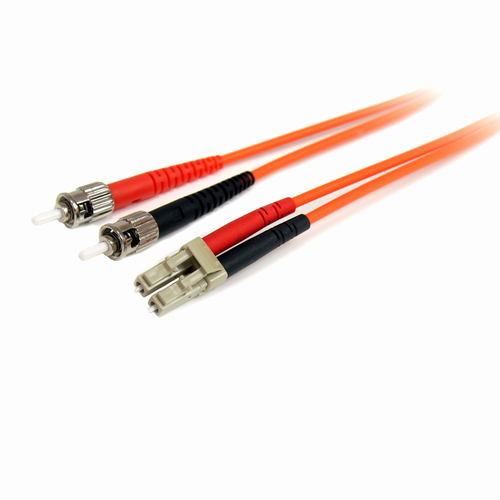

2m Fiber Optic Cable - Multimode Duplex 62.5/125 LSZH Fiber Jumper Cord - LC/ST
- Connect fiber network devices for high-speed transfers with LSZH rated cable
- 2 meter Duplex Fiber Cable/LC to ST/Multimode Patch Cable/2m Multimode 62.5/125 Duplex Fiber Optic Cable LC to ST
- OM1 (62.5/125) multimode fiber
- LSZH (Low-Smoke, Zero-Halogen) cable jacket
- Immune to electrical interference
- Ideal solution for data applications requiring high speed data transmission
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Connect fiber network devices for high-speed transfers with LSZH rated cable
The FIBLCST2, 2-meter (6.6ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated with one LC (male) connector and one ST (male) connector, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
This LC-ST patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our LC-ST Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.
Specifications
Features
- Cable length
- 2 m
- Fibre optic type
- OM1
- Connector 1
- LC
- Connector 2
- ST
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Orange
- Full duplex
- Yes
- Core diameter
- 62.5 µm
- Cladding diameter
- 125 µm
- Fiber mode structure
- Multi-mode
- Data transfer rate
- 10 Gbit/s
- Jacket material
- Low smoke zero halogen (LSZH)
Sustainability
- Doesn't contain
- Halogen
Certificates
- Compliance certificates
- RoHS, CE
Operational conditions
- Operating temperature (T-T)
- -20 - 60 °C
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Weight
- 40 g
Packaging data
- Package width
- 199 mm
- Package depth
- 150 mm
- Package height
- 21 mm
- Package weight
- 49 g
Packaging content
- Quantity per pack
- 1 pc(s)
Logistics data
- Master (outer) case width
- 400 mm
- Harmonized System (HS) code
- 85447000
- Master (outer) case length
- 406 mm
- Master (outer) case height
- 432 mm
- Products per master (outer) case
- 240 pc(s)
