1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km - TAA
- Convert and extend a Gigabit Ethernet connection up to 24.8 miles (40km) over Single Mode LC fiber
- GbE Single Mode Fiber Media Converter/Gigabit Ethernet Media Converter
- Fiber Optic Converter/1000 Base-SX Fiber Converter
- RJ45 Gigabit to Fiber/1000Mbps RJ45 to LC Converter
- Convert Ethernet to fiber as a standalone device

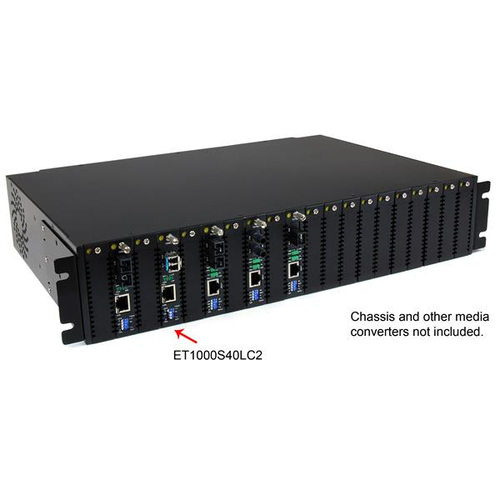

- Can be installed into the ETCHS2U 20 slot chassis
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Network
- Maximum data transfer rate
- 2000 Mbit/s
- Converter input interface
- 1000Base-T
- Converter output interface
- 1000Base-LX, 1000Base-SX
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Auto MDI/MDI-X
- Yes
- Duplex system
- Full, Half
Performance
- Maximum transfer distance
- 40000 m
- Wavelength
- 1310 nm
- Fiber mode structure
- Single-mode
- Mean time between failures (MTBF)
- 65000 h
Features
- Internal
- No
- Plug and Play
- Yes
- Product colour
- Black
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- Fiber ports quantity
- 1
- Fiber optic connector
- LC

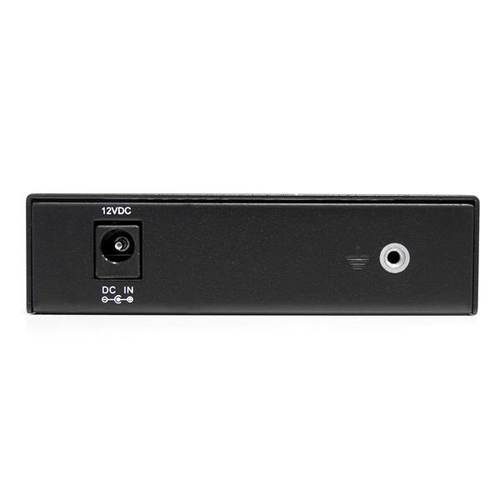

- DC-in jack
- Yes
Power
- Output voltage
- 12 V
- Output current
- 1 A
- External power adapter
- Yes
Weight & dimensions
- Weight
- 620 g
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
- Storage temperature (T-T)
- -10 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
Packaging content
- Manual
- Yes
Packaging data
- Package width
- 206 mm
- Package depth
- 137 mm
- Package height
- 91 mm
- Package weight
- 754 g
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC
Logistics data
- Harmonized System (HS) code
- 85176990
- Master (outer) case width
- 441 mm
- Master (outer) case length
- 365 mm
- Master (outer) case height
- 302 mm
- Products per master (outer) case
- 15 pc(s)
Other features
- Dimensions (WxDxH)
- 95 x 160 x 20 mm
- Full duplex
- Yes
