Home/Catalogue/StarTech.com/DVI2DP2

StarTech.com DVI2DP2 Drag to turn · 14 views
StarTech.comVideo Cable Adapters

DVI to DisplayPort Adapter - USB Power - 1920 x 1200 - DVI to DisplayPort Converter - Video Adapter

Part # DVI2DP2UPC 065030875851Warranty: 2 Years0.35 lb

  • Use this DVI to DisplayPort converter to connect your DVI computer to a DisplayPort monitor or projector
  • Easy setup with USB power and plug-and-play installation
  • Resolutions up to 1920x1200
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

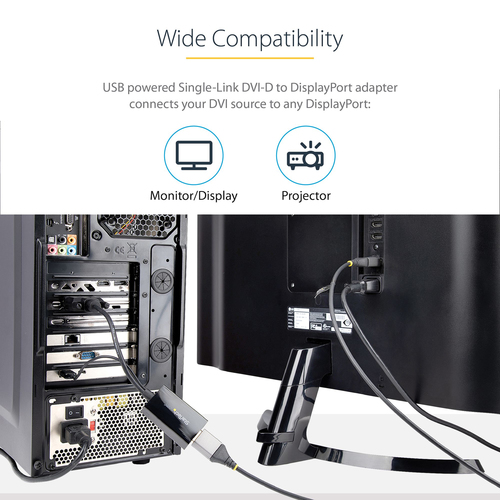

Use this DVI to DisplayPort converter to connect your DVI computer to a DisplayPort monitor or projector

This DVI to DisplayPort adapter lets you connect a DVI video source, such as your desktop computer, to your DisplayPort (DP) monitor or projector.

01

Get hassle-free DVI-D to DP conversion

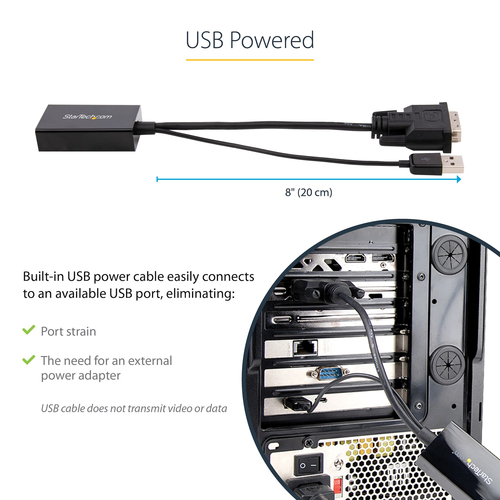

The DVI to DisplayPort converter is USB powered, giving you the freedom to power it using a USB port on your computer, unlike some converters that require bulky external power adapters. USB powered devices don't require an AC outlet, so you can connect a DVI computer to a DP projector or display where power outlets are limited or inaccessible, such as your boardroom or workstation.

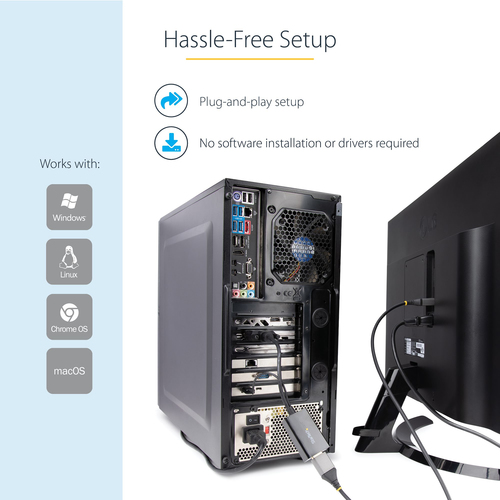

The DVI to DP adapter also supports plug-and-play installation, so you won’t need to load any drivers or software on your computer.

02

Be more productive

Using the DVI to DisplayPort adapter, you can connect a secondary monitor through a vacant DVI port on your computer. The added screen space makes it easier to multitask, so you can work more efficiently and accomplish more in less time. It's perfect for office use, or wherever you view documents, spreadsheets, or web pages across multiple screens.

03

Keep your high-definition video quality

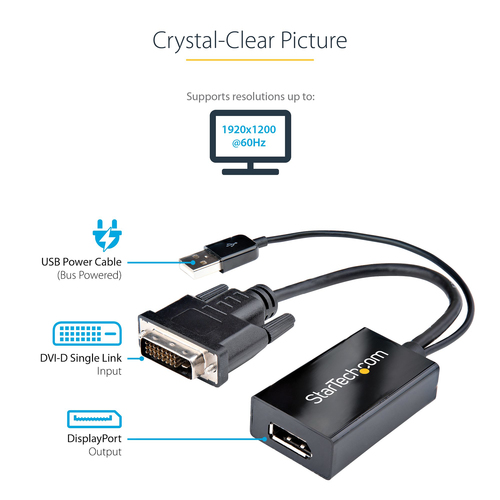

With support for display resolutions up to 1920x1200 or 1080p, the DVI to DisplayPort adapter lets you take full advantage of the single-link DVI-D capabilities that are built into your computer’s graphics card.

The DVI2DP2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Features

Connector 1 form factor
Straight
Connector 2 form factor
Straight
Power source
USB
Cable length
0.254 m
Connector 1
DVI-D
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Female
Maximum resolution
1920 x 1200 pixels
Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 800, 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes
480p, 720p, 1080p
Maximum refresh rate
60 Hz
Product colour
Black
Chipset
Mega Chip - STDP2600
Plug and Play
Yes

Operational conditions

Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
40 - 50%

Certificates

Compliance certificates
CE, RoHS
Certification
CE, FCC, RoHS

Weight & dimensions

Weight
25 g
Width
35 mm
Depth
58 mm
Height
17 mm

Packaging data

Package width
145 mm
Package depth
172 mm
Package height
33 mm
Package weight
64 g

Packaging content

Quantity per pack
1 pc(s)

Logistics data

Harmonized System (HS) code
84733080
Master (outer) case width
484 mm
Master (outer) case length
344 mm
Master (outer) case height
451 mm
Products per master (outer) case
70 pc(s)
