StarTech.comDisplayPort Cables

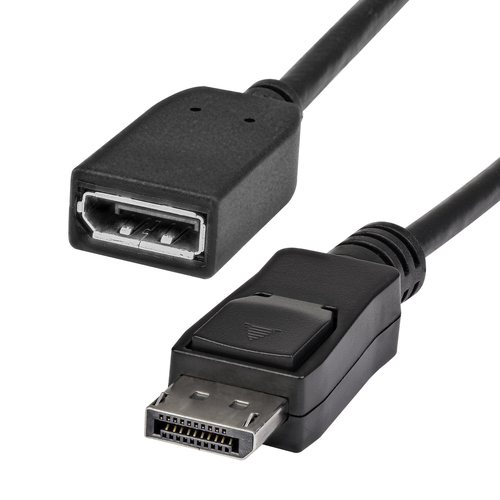

6ft (1.8m) DisplayPort Extension Cable - 4K x 2K Video - DisplayPort Male to Female Extension Cable
- 6ft (1.8m) DisplayPort extension cable (male to female) | 4K x 2K video (3840x2400p 60Hz)
- DP 1.2/21.6 Gbps bandwidth/ HBR2/8Ch Audio/MST/GTC/3D Stereo (2560x1600p 120Hz)

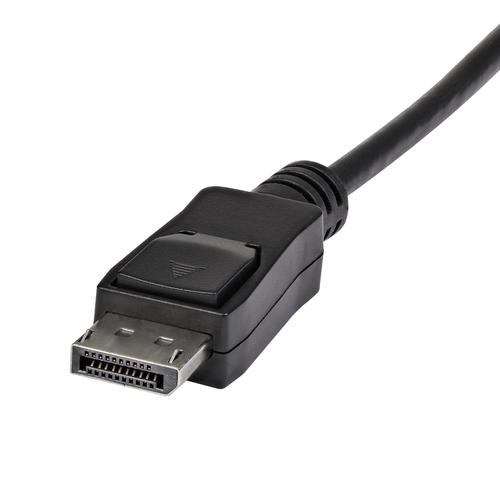

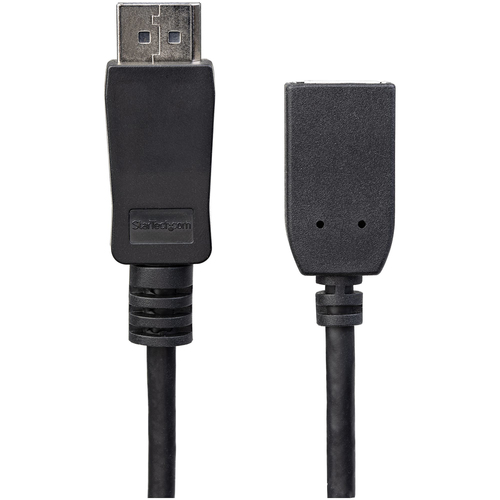

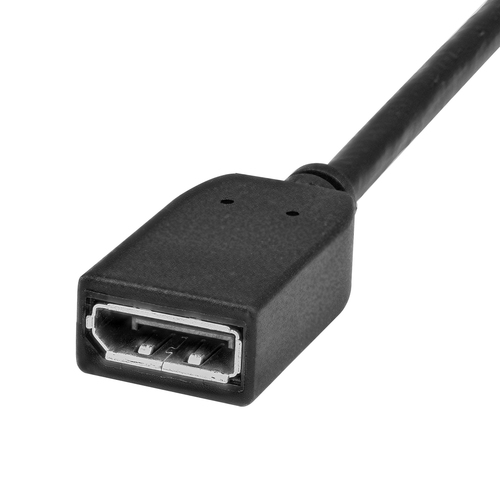

- DP extension cable has durable ABS connectors w/ flexible PVC strain relief | latching DP connector
- DP extender cord for home/office | Connect laptop w/Standard DP port (Toshiba Tecra) or workstations w/ FirePro™ S9000/7000/W8100/7100 graphic cards to a UHD/4K monitor/projector/display
- Backwards compatible with DP1.1
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Extend the reach of your DisplayPort devices by 6ft
The DPEXT6L 6-foot, DisplayPort Video Extension Cable supports 21.6 Gbps bandwidth, giving a full 4K x 2K (3840 x 2400 at 60Hz) resolution and 3D Stereo display (2560 x 1600 at 120Hz). This DP1.2 cable also provides additional features such as High Bit Rate 2 (HBR2), 8 Audio Channels, Multi-Stream Transport (MST) for connecting multiple displays and Global Time Code (GTC) for sub-micro video/audio sync.
This DisplayPort v1.2 Video Extension Cable adds an extra 6ft to any DisplayPort cable. The extension cable features latching connectors with gold-plated pins for superior conductivity and is backed by our Lifetime Warranty.
Specifications
Features
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Connector contacts plating
- Nickel
- DisplayPort version
- 1.2
- Maximum resolution
- 3840 x 2400 pixels
- Maximum refresh rate
- 60 Hz
- HDCP
- Yes
- DisplayPort Content Protection (DPCP)
- Yes
- Cable length
- 1.8 m
- Connector 1
- DisplayPort
- Connector 2
- DisplayPort
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Latching connectors
- Yes
- Product colour
- Black
- Cable rating
- CMG (CM)
- Cable shielding
- Aluminum mylar foil
- Jacket material
- Polyvinyl chloride (PVC)
- AWG wire size
- 28
- Bandwidth
- 21600 MB/s
- Plug and Play
- Yes
- Multi-Stream Transport (MST)
- Yes
- Number of conductors
- 20
Operational conditions
- Operating temperature (T-T)
- -20 - 80 °C
- Storage temperature (T-T)
- -25 - 85 °C
- Operating relative humidity (H-H)
- 40 - 70%
Certificates
- Compliance certificates
- RoHS
Weight & dimensions
- Weight
- 91 g
Packaging data
- Package width
- 165 mm
- Package depth
- 177 mm
- Package height
- 27 mm
- Package weight
- 96 g
Packaging content
- Quantity per pack
- 1 pc(s)
Logistics data
- Master (outer) case width
- 338 mm
- Master (outer) case length
- 506 mm
- Master (outer) case height
- 290 mm
- Products per master (outer) case
- 70 pc(s)
