StarTech.com DP14VMM1F Drag to turn · 10 views
StarTech.comDisplayPort Cables

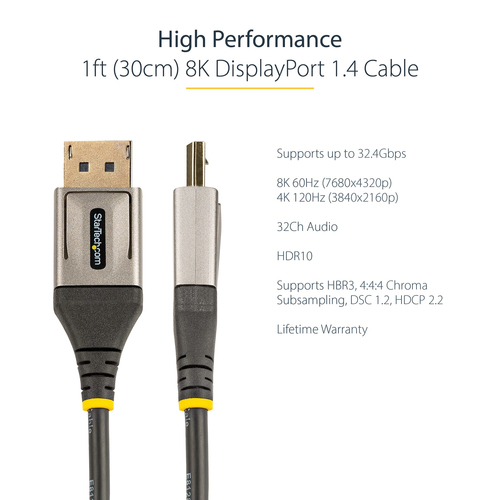

1ft (30cm) DisplayPort 1.4 Cable - 8K 60Hz HDR10 - Ultra HD 4K 120Hz Video - DP 1.4 Cable / Cord

Part # DP14VMM1FUPC 065030909792Warranty: Lifetime0.1 lb

  • 1ft (30cm) DisplayPort 1.4 cable
  • 8K 60Hz/4K 120Hz/32.4Gbps bandwidth/HDR10/32Ch Audio (5.1/7.1 Audio Channel)/HDCP2.2
  • future-proof for 8K
  • DP 1.4 cable 34AWG/internal wire manager/metal connector sub-structure and Al-Mylar Foil w/Braid for EMI shielding
  • Withstand 5000+ insertions + 300+ bend cycles
  • Durable TPE jacket/strain relief
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Enable reliable 8K 60Hz video using this DisplayPort 1.4 Cable

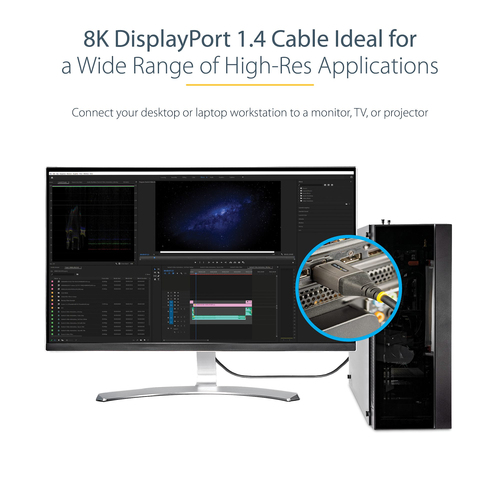

This DisplayPort 1.4 cable connects your DisplayPort™ laptop or desktop computer to an ultra-high definition 8K monitor, TV or projector. It supports resolutions up to 8K (7680 x 4320) at 60Hz.

The DisplayPort monitor cable provides the essential connection to support the next generation of ultra-high definition video.

01

Full-Featured DisplayPort 1.4

This 8K DisplayPort cable supports all DP 1.4 features:

• High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards

• High Dynamic Range (HDR10) for higher contrast ratio and vivid colors

02

• Multi-Stream Transport (MST) for daisy-chaining multiple monitors

• Display Stream Compression 1.2 (DSC) for maximum resolution output

03

• Forward Error Correction to manage data transmission errors

• High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display

• 32 Uncompressed Digital Audio Channels

04

Cable Key Features

05

Aluminum-mylar foil with braided shielding improve EMI protection

Long lasting flexible TPE jacket & strain relief (TPE is non-toxic & halogen free for environmental sustainability)

06

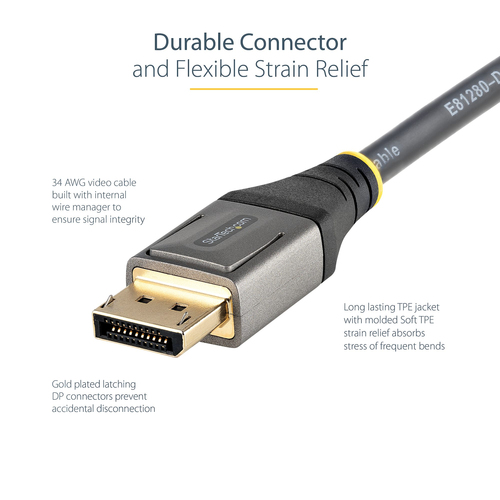

Connector Key Features

Die-cast aluminium sub-structure shielding improves signal integrity & prevents signal degradation

Corrosion-free gold-plated connectors ensure premium video quality & enhanced reliability

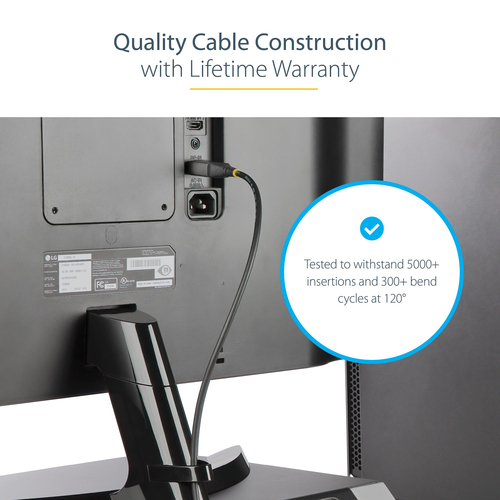

Tested to withstand 5000+ insertions

07

8K: Enabling Business Continuity

8K has a resolution of 7680 x 4320 and is also known as 4320p and Ultra High Definition (UHD). Suitable for digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.

08

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

DP14VMMV1M is backed by a StarTech.com lifetime warranty.

Specifications

Features

Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Gold
DisplayPort version
1.4
Maximum resolution
7680 x 4320 pixels
Supported graphics resolutions
3840 x 2160, 7680 x 4320
Maximum refresh rate
120 Hz
HDCP
Yes
HDCP version
2.2
Display Stream Compression (DSC)
Yes
Display Stream Compression (DSC) version
1.2
Cable length
0.3 m
Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Latching connectors
Yes
Product colour
Black, Grey
Cable shielding
Aluminum mylar foil
Jacket material
Thermoplastic elastomer (TPE)
AWG wire size
34
High Dynamic Range (HDR) supported
Yes
Bandwidth
32400 MB/s
Channels quantity
32 channels
HBR3 support
Yes
Multi-Stream Transport (MST)
Yes
Number of conductors
19
Colour sampling
4:4:4

Certificates

Compliance certificates
RoHS

Weight & dimensions

Cable diameter
4.5 mm

Packaging data

Package width
198 mm
Package depth
150 mm
Package height
20 mm
Package weight
18.5 g

Logistics data

Master (outer) case width
330 mm
Master (outer) case length
400 mm
Master (outer) case height
270 mm
Products per master (outer) case
150 pc(s)
