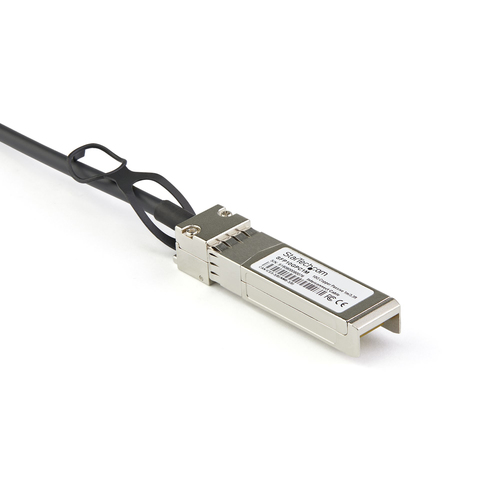

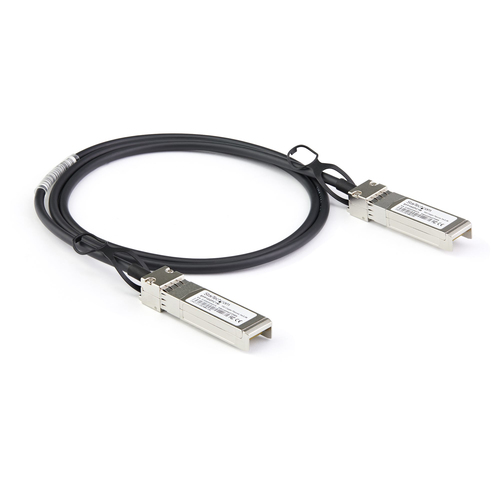

Dell EMC DAC-SFP-10G-1M Compatible 1m 10G SFP+ to SFP+ Direct Attach Cable Twinax - 10GbE SFP+
- 100% Dell EMC DAC-SFP-10G-1M Compatible 1m direct attached cable
- 1m/3.3' Cable | 10 Gbps | Passive Twinax (Copper) | 2x SFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG | PVC Jacket
- 10GbE Low Power Mini GBIC/Transceiver Module DAC for edge networks/server rooms/data centers
- For Dell EMC switches
- Hot-Swappable and MSA Compliant
- StarTech.com lifetime warranty and will not void your OEM warranty
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
10 Gbps | Passive Copper Cable | 1 m (3.3ft) | Lifetime Warranty
The DACSFP10G1M is a Dell EMC DAC-SFP-10G-1M compatible direct-attach copper SFP+ cable that’s designed, programmed and tested to work with Dell EMC brand compatible switches and routers and complies with MSA industry standards. This passive Twinax copper cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. This copper SFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. Designed for high-speed performance, this low-power, low-latency 10GbE cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.
StarTech.com SFP Cables All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Features
- Cable length
- 1 m
- InfiniBand protocol
- Yes
- Connector 1
- SFP+
- Connector 2
- SFP+
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Black
- Data transfer rate
- 10 Gbit/s
- Brand compatibility
- Dell
Certificates
- Compliance certificates
- REACH, RoHS
- Certification
- CE, FCC
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
Weight & dimensions
- Weight
- 74 g
Packaging data
- Package width
- 159 mm
- Package depth
- 133 mm
- Package height
- 19 mm
- Package weight
- 84 g
Packaging content
- Quantity per pack
- 1 pc(s)
Logistics data
- Master (outer) case width
- 266 mm
- Harmonized System (HS) code
- 85447000
- Master (outer) case length
- 346 mm
- Master (outer) case height
- 302 mm
- Products per master (outer) case
- 60 pc(s)
Downloads
