Horizontal 2U Server Rack Cable Management Finger Duct w/ Cover - 19" Network Rack Wire Duct
- Organize cables in your server rack or cabinet with a horizontal covered cable duct
- 2U Finger Duct Rack Cable Management Panel with Cover
- Server Rack Cable Duct
- Cable Organizer
- Network Cable Manager w/ Finger Duct and Rear Pass-Through Holes
- Removable top cover
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

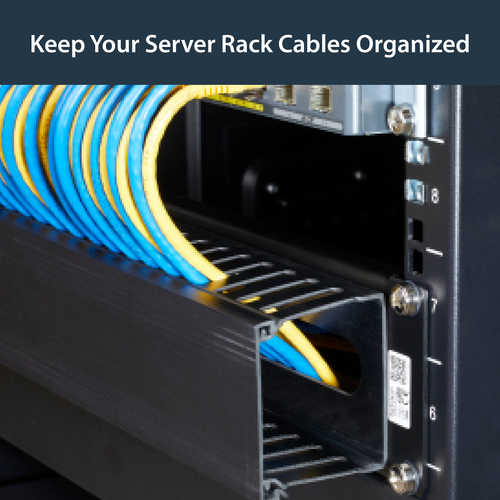

Organize cables in your server rack or cabinet with a horizontal, covered cable duct
The CMDUCT2U 2U Finger Duct Cable Management Panel mounts to a standard 19" 2 or 4-post rack to help you organize horizontal cabling, through a covered cable duct.

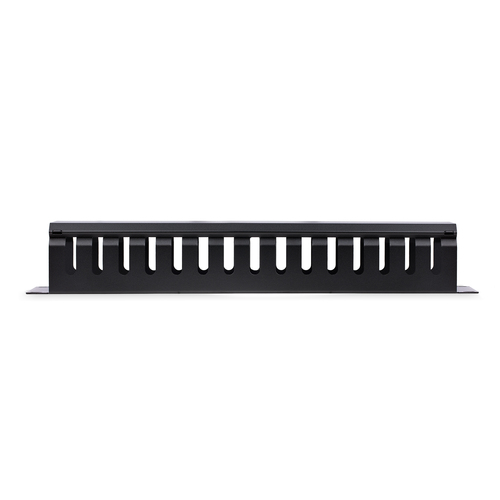

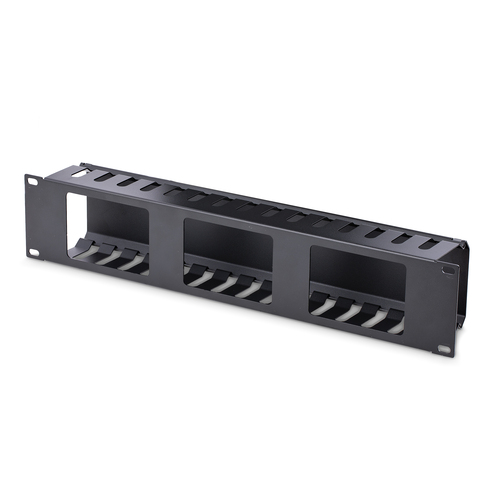

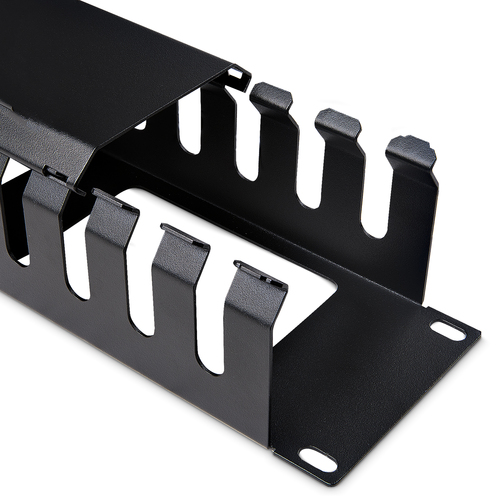

The 2U cable organizer features a removable top cover that makes it easy to add or remove bundled cables quickly. The duct also offers a series of fingers on either side, as well as pass-through holes at the back to help you route your cables where you need them, and reduce cable strain in the process.
Made of high-quality steel and plastic, the cable manager is a durable solution for your server room or wiring closet. For easy installation, this horizontal cable organizer comes complete with M6 screws.
Specifications
Features
- Type
- Cable management panel
- Product colour
- Black
- Housing material
- Plastic, Steel
- Rack capacity
- 2U
- Compliance industry standards
- EIA RS310-D
- Certification
- CE, TAA, REACH
Weight & dimensions
- Width
- 482 mm
- Depth
- 79 mm
- Height
- 88.1 mm
- Weight
- 972 g
Packaging data
- Package width
- 545 mm
- Package depth
- 150 mm
- Package height
- 145 mm
- Package weight
- 1.3 kg

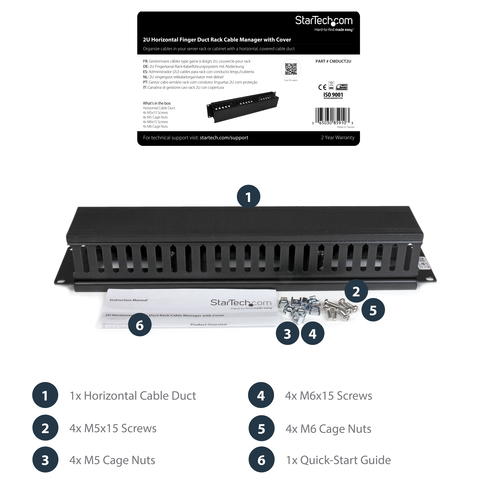

Packaging content
- Screws included
- Yes
- Screw type
- M5, M6
- Number of screws
- 8
- Cage nuts included
- Yes
- Number of cage nuts
- 8
Technical details
- Compliance certificates
- RoHS
Logistics data
- Master (outer) case width
- 565 mm
- Master (outer) case length
- 640 mm
- Master (outer) case height
- 640 mm
- Products per master (outer) case
- 16 pc(s)
- Harmonized System (HS) code
- 85389099
