USB-C to Mini DisplayPort Adapter - 4K 60Hz - Use this USB C to mDP adapter to connect your USB

Part # CDP2MDPUPC 065030875813Warranty: 3 Years0.05 lb

USB C to Mini DP Adapter delivers UHD video to your 4K 60Hz display and is backwards compatible with 1080p monitors or displays
Reversible USB Type-C Connector on the USB C to mDP Adapter directly connects to your Windows or Mac based Thunderbolt 3 computer
Unique signal booster for reliable performance even with lower-quality or longer cables | For USB-C DP Alt Mode/Thunderbolt 3 laptops like Lenovo/Dell/HP/Surface and MacBooks
Upgraded version available CDP2MDPEC with extended cable

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

USB Type-C™ to Mini DP Adapter| Thunderbolt™ 3 Compatible | DP Alt Mode

This USB Type-C to Mini DisplayPort adapter lets you output mini DisplayPort (mDP) video and audio from the USB Type-C port on your laptop or other device. It works with USB 3.1 or Thunderbolt 3 Type-C devices that pass an mDP video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro.

IT Pro Performance

This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.

Enjoy High-Definition Resolution up to 4K at 60Hz

Harness the video capabilities that are built into your computer's USB-C connection, using the adapter to deliver the astonishing quality of UHD to your 4K 60Hz display.

You can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The USB-C video adapter is backward compatible with 1080p monitors or displays, which makes it a great accessory for workspace applications.

Hassle-Free Connection for Your USB Type-C Laptop

This adapter lets you use the versatile USB Type-C port on your portable device. USB-C is a reversible connector, enabling you to plug it into your device in any direction. The Thunderbolt 3 compatible adapter provides a hassle-free connection to your Windows or Mac based Thunderbolt 3 computer.

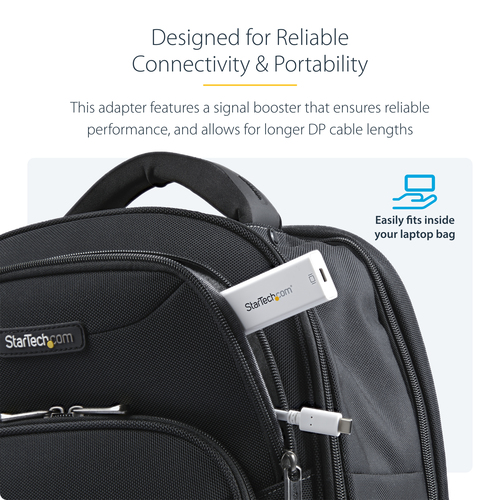

Lightweight Design for Easy Portability

The compact USB-C to mDP adapter is lightweight and fits perfectly in your laptop bag. Its portable design is ideal for BYOD (Bring Your Own Device) applications at the office or on the road.

The CDP2MDP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

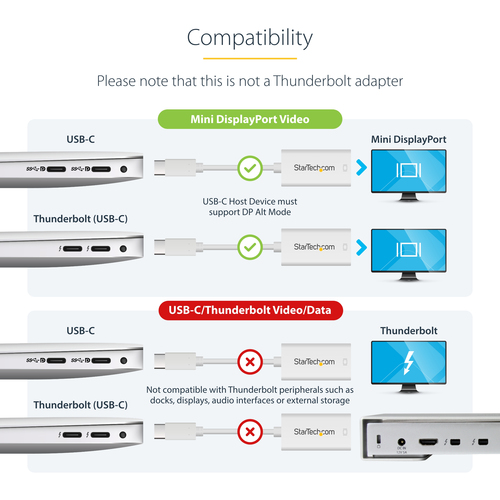

Notes:

• Your USB-C device must support DisplayPort over USB-C (DP Alt Mode) to work with this adapter

• This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters

Specifications

Performance

USB connector type: USB Type-C
USB connector gender: Male
USB connector form factor: Straight
DVI output: No
HDMI output: No
DisplayPort output: Yes
Number of displays supported: 1
DisplayPort version: 1.2
Maximum resolution: 3840 x 2160 pixels
Refresh rate at maximum resolution: 60 Hz
Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160
Audio output channels: 7.1 channels
Chipset: NXP - PTN5100, Pericom - PI3DPX1203
Certification: CE, FCC, REACH
