1U Server Rack Shelf, Universal Rack Mount Cantilever Tray for 19" Network Equipment Rack/Cabinet

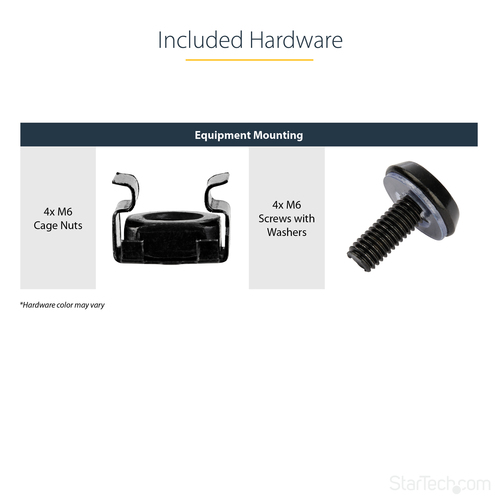

- 1U 19" Server rack cabinet shelf 7" deep/ EIA/ECA-310 compliant for universal fit in any existing server/AV cabinet or enclosure/w/cage nuts and screws for mounting
- Heavy-duty cantilever tray is easy to install w/durable 16 gauge SPCC commercial cold-rolled steel holding up to 33lb
- For flexibility shelf mounts in multiple orientations w/lips on one side to prevent equipment sliding off
- Compatible w/StarTech.com racks plus brands like HP APC Dell w/24 hr tech support
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

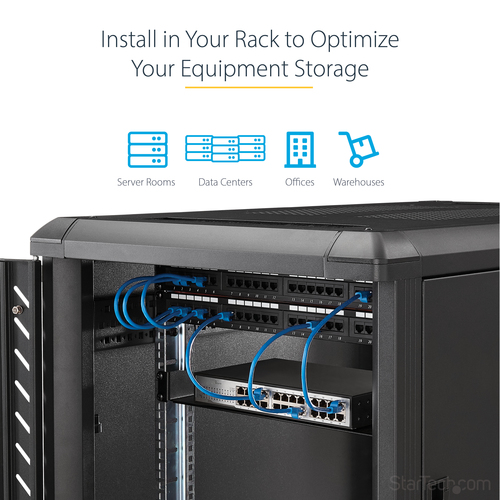

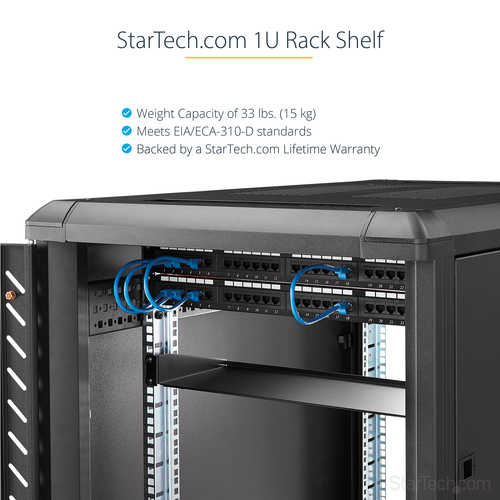

Add a 1U Compact Storage Shelf to any Standard 19" Server Rack or Cabinet
The CABSHELF1U 1U (Black) Universal Fixed Server Rack Cabinet Shelf lets you add a compact fixed storage shelf to any standard 19-inch server rack or cabinet with front mount options.

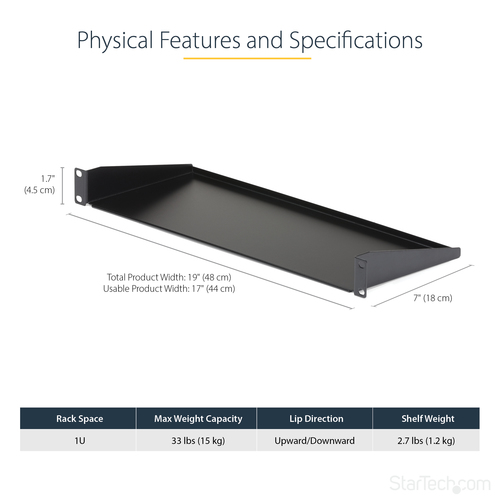

Constructed using SPCC commercial grade cold-rolled steel, this durable fixed rack shelf can hold up to 15kg (33lbs) of equipment - a perfect solution for storing small form non-rackmount equipment, tools, peripherals or accessories in your rack, to keep them readily accessible.
Specifications
Features
- Type
- Shelf
- Product colour
- Black
- Housing material
- Steel
- Maximum weight capacity
- 15 kg
- Rack capacity
- 1U
- Certification
- CE, UL

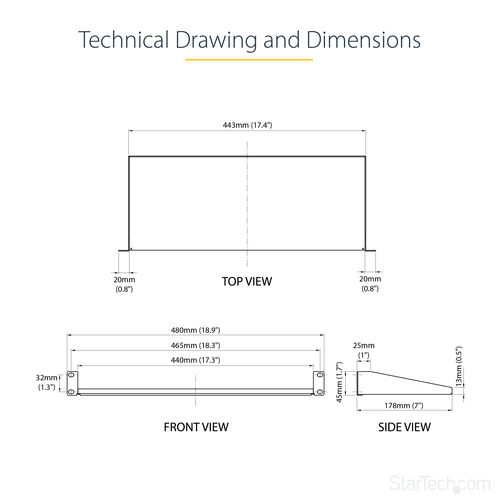

Weight & dimensions
- Width
- 481 mm
- Depth
- 177 mm
- Height
- 45 mm
- Weight
- 1.23 kg
Packaging data
- Package width
- 502 mm
- Package depth
- 200 mm
- Package height
- 76 mm
- Package weight
- 1.49 kg
Packaging content
- Screws included
- Yes
Technical details
- Compliance certificates
- RoHS
Logistics data
- Master (outer) case width
- 562 mm
- Master (outer) case length
- 426 mm
- Master (outer) case height
- 393 mm
- Products per master (outer) case
- 10 pc(s)
- Harmonized System (HS) code
- 85389099
