4-Port USB 3.0 Extender over Ethernet up to 330ft (100m) via Cat6a / Cat7 / Cat8 RJ45 Cable
- Connect four remote USB 3.0 peripherals to a local computer over a single direct-run Cat6a, Cat7, or Cat8 Ethernet cable up to 330ft (100m)
- Power both transmitter and receiver units using the included power adapter for clean installs
- RJ45 Extension for out of reach USB webcams data tools storage and peripherals in classrooms kiosks and industrial setups

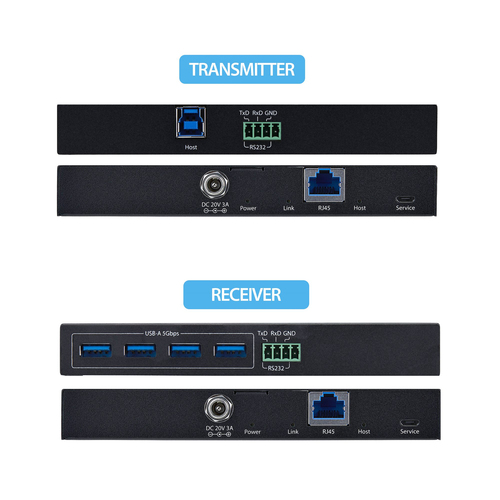

- 4x 5Gbps ports and RS-232 serial passthrough and FSYNC
- Built with rugged metal housings for enhanced protection and durability
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Extend four USB 3.0 peripherals up to 330ft (100m) over Cat6a/Cat7/Cat8
USB 3.0 over Ethernet Extender Kit connects up to four USB peripherals to a host computer up to 330ft (100m) away via a single direct-run Cat6a, Cat7, or Cat8 RJ45 cable.
Overcome USB Distance Limitations
This compact extension adapter kit is ideal for extending the typical reach of USB cables beyond standard lengths. Use it to connect webcams, data acquisition tools, storage devices, and input peripherals in locations such as classrooms, kiosks, industrial workstations, or control rooms. The system supports USB 3.2 Gen 1 (5Gbps) data rates, delivering high-speed performance without sacrificing reliability over long distances.
Flexible Power Over Cable (PoC) Setup
Power either the transmitter or receiver unit with the included power adapter, as both devices share power via the Ethernet cable, simplifying setup and reducing the need for separate power sources at both ends of the link, especially useful in space-constrained or hard-to-access environments.
Support Pro-Grade Integration
Delivers 5Gbps speeds and features RS-232 passthrough for serial control in automation setups. Built with rugged metal housings for enhanced protection and durability.
Driverless and OS-independent, this point-to-point USB extender requires no software and is compatible with Windows, macOS, and Linux.
Specifications
Technical details
- Type
- Console transmitter & receiver
- Data transfer rate
- 5000 Mbit/s
- Maximum transfer distance
- 100 m
- Product colour
- Black
- Housing material
- Steel
- LED indicators
- Link, Power, Host
- Cable types supported
- Cat6a
- Compliance certificates
- Trade Agreements Act (TAA)
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 1
- Micro-USB ports quantity
- 2
- RS-232 ports
- 2
- RJ-45 ports quantity
- 2
- DC-in jack
- Yes
Weight & dimensions
- Width
- 100 mm
- Depth
- 150 mm
- Height
- 20.5 mm
- Weight
- 350 g
- Package width
- 250 mm
- Package depth
- 170 mm
- Package height
- 80 mm
- Package weight
- 1.2 kg
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
Packaging content
- Cables included
- USB Type-A to USB Type-B
- Mounting kit
- Yes
- Quick start guide
- Yes
- AC adapter included
- Yes
Power
- Power source type
- DC
- Power consumption (typical)
- 60 W
- Input voltage
- 100 - 240 V
- Input current
- 3 A
- Output voltage
- 20 V
- Included power plug types
- NA, JP, ANZ, UK, EU
- Terminal block included
- Yes
Logistics data
- Master (outer) case width
- 535 mm
- Master (outer) case length
- 453 mm
- Master (outer) case height
- 380 mm
- Products per master (outer) case
- 10 pc(s)
