4-Port USB-C Hub, 10Gbps, 100W PD Charging, 4x USB-C Ports, Overcurrent Protection, PCR Aluminum
- Compact USB-C hub adds four connections for high-speed accessories and device charging passthrough
- Reduce port swapping and streamline desks shared spaces and mobile IT deployments

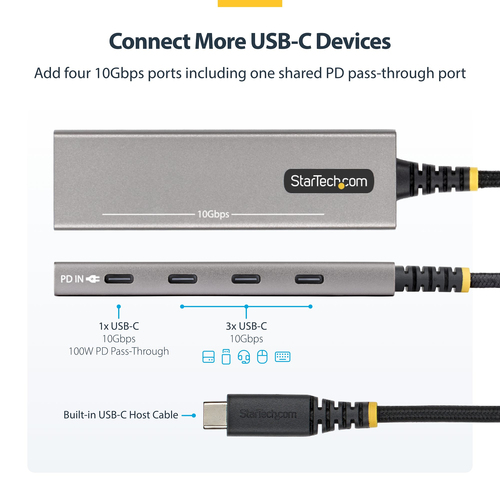

- Features 3x dedicated 10Gbps USB-C data ports plus 1x dual-purpose port for 10Gbps data or 100W PD
- Connect SSDs capture devices and other high-speed peripherals simultaneously
- Plug-and-play operation requires no drivers
- Compact 8-inch (20cm) braided host cable and durable 90% PCR aluminum housing
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Transform a single USB-C port on your laptop into four high-speed USB-C ports with 10Gbps data transfer and 100W Power Delivery
Turn one USB-C port into a compact expansion hub with four USB-C connections for 10Gbps peripherals and up to 100W Power Delivery pass-through, all in one durable, travel-ready design.
Build a Clean, High-Performance USB-C Workspace Anywhere
Create a simple, standardized setup from a single USB-C port. Add four USB-C connections for fast peripherals, including one shared-function port that supports up to 100W Power Delivery pass-through (based on host and charger capability). Plug in external SSDs, capture devices, adapters, and other USB-C peripherals simultaneously without sacrificing charging and constantly swapping cables.

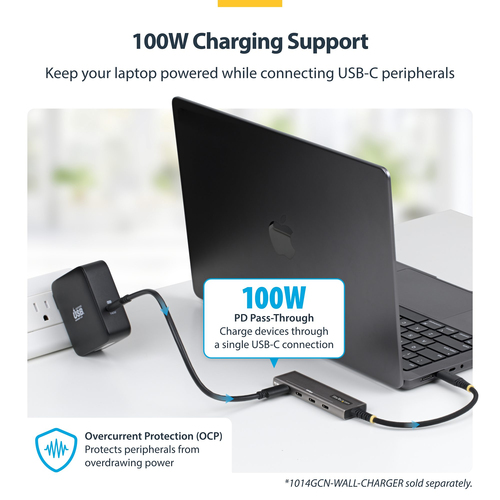

Charge and Connect Without Compromise
Keep your host powered while staying productive. Use the shared-function USB-C port for up to 100W PD pass-through when you need charging, while the remaining ports maintain full 10Gbps performance for connected devices. Standardize hot desks, shared workstations, and mobile kits to reduce "not enough ports" tickets across mixed-device environments.

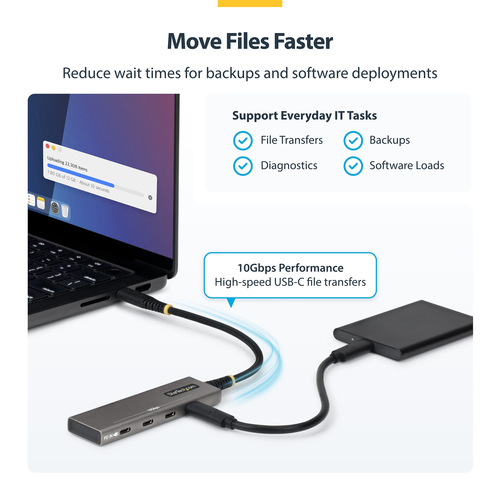

Expand with High-Speed, Driverless Connectivity
Add three dedicated 10Gbps USB-C data ports for file transfers, diagnostics, backups, and software loads. Deploy instantly with plug-and-play operation and no drivers required.

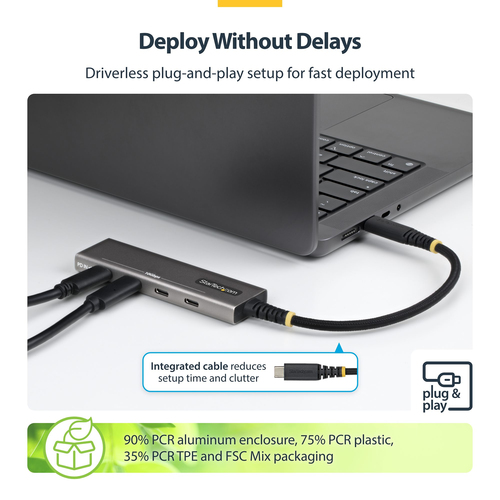

Built for Sustainability, Designed for Performance

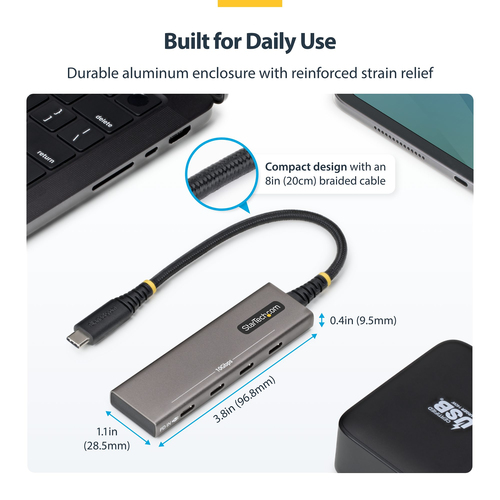

The built-in 8in (20cm) host cable is a dual-layer cable that pairs a flexible silicone inner layer with a braided nylon exterior for extra abrasion resistance. This hub features a housing made from 90% post-consumer recycled (PCR) aluminum, 75% PCR Plastic, and a cable jacket composed of 35% PCR TPE (Thermoplastic Elastomer). The product also ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization's sustainability goals, without compromising on quality or durability.
Specifications
Ports & interfaces
- Host interface
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- Hub interfaces
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 4
- Ports quantity
- 4
- USB Type-C DisplayPort Alternate Mode
- Yes
Features
- Data transfer rate
- 10000 Mbit/s
- Product colour
- Grey
- Housing material
- Plastic, Aluminium
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery revision
- 3.0
- USB Power Delivery up to
- 100 W
- Number of displays supported
- 1
- Cable length
- 0.203 m
- Plug and Play
- Yes
Network
- UASP support
- Yes
Power
- Power consumption (typical)
- 15 W
Weight & dimensions
- Width
- 28.5 mm
- Depth
- 96.8 mm
- Height
- 9.5 mm
- Weight
- 43 g
Packaging data
- Package width
- 57 mm
- Package depth
- 190 mm
- Package height
- 19 mm
- Package weight
- 108 g
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- 0 - 45 °C
- Operating relative humidity (H-H)
- 10 - 85%
- Storage relative humidity (H-H)
- 10 - 85%
Logistics data
- Master (outer) case width
- 205 mm
- Master (outer) case length
- 425 mm
- Master (outer) case height
- 260 mm
- Products per master (outer) case
- 80 pc(s)
Technical details
- Compliance certificates
- RoHS, CE
Other features
- Chipset
- VIA - VL103, VIA - VL822
Downloads
