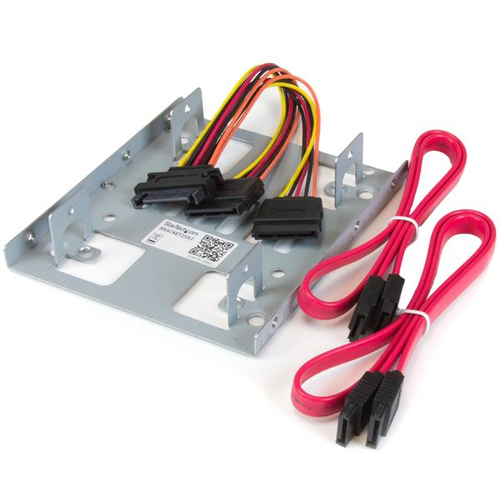

StarTech.com BRACKET25X2 Drag to turn · 6 views
StarTech.comDrive Bay Panels

Dual 2.5" to 3.5" HDD Bracket for SATA Hard Drives - 2 Drive 2.5" to 3.5" Bracket for Mounting Bay - TAA

Part # BRACKET25X2UPC 065030852593Warranty: Lifetime0.4 lb

  • Mount two 2.5in SATA SSDs/HDDs into a single 3.5in drive bay
  • Compatible with desktop computers with an available 3.5in mounting bay and 2.5in hard drives and solid state drive such as Samsung 840 EVO series and Crucial MX 100 series
  • Hard Drive Mounting Bracket/2.5 to 3.5 Hard Drive Adapter/2.5 to 3.5 Bracket/SSD Mounting Bracket/Hard Drive Mounting Brackets/Hard Drive Mounting Kit/SSD Mounting Kit
  • Add the performance of 2.5in solid state drives to your desktop computer
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

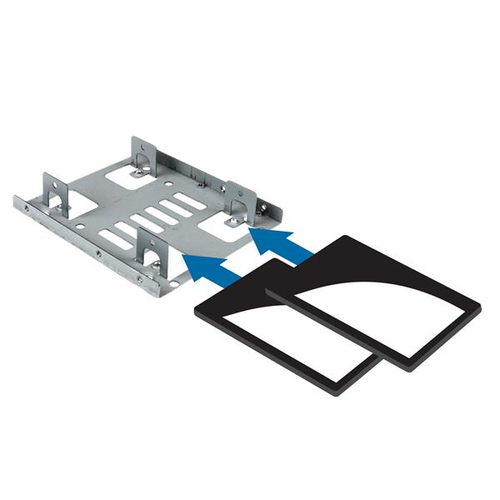

Mount two 2.5in SATA SSDs/HDDs into a single 3.5in drive bay

The BRACKET25X2 Dual hard drive mounting bracket kit lets you install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) into a single 3.5in mounting bay -- enabling you to significantly increase the performance of your desktop by adding the speed of a 2.5in SSD.

Maximize the internal mounting space of your computer, by installing two 2.5in hard drives in the same 3.5in bay. The bracket can be used with SATA hard drives and solid states

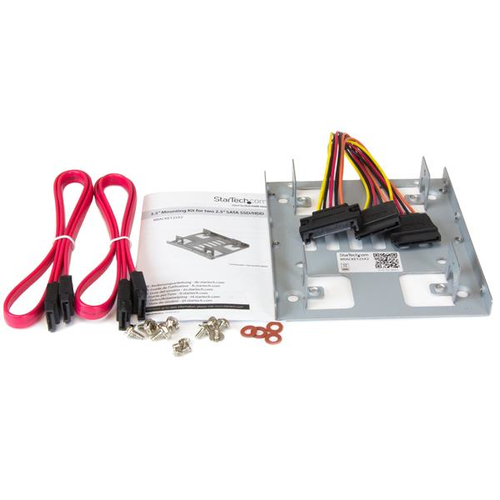

For a hassle-free installation, the hard drive mounting kit includes all required data and power cabling for both SATA drives. Plus, the bracket can support IDE drives when using our 2.5in to 3.5in IDE Hard Drive cable adapter (IDE4044).

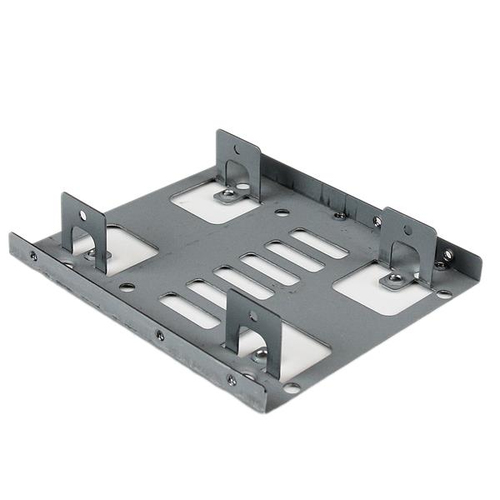

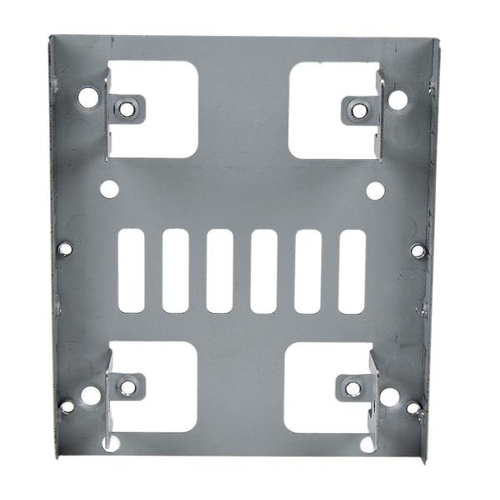

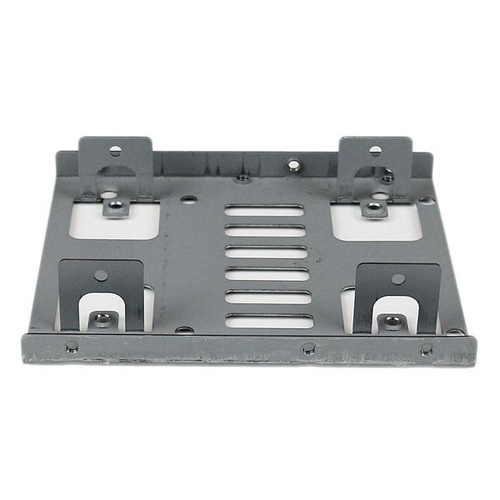

The BRACKET25X2 features solid steel construction, and is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

Features

Size (imperial)
8.89 cm (3.5")
Type
Carrier panel
Product colour
Stainless steel
Number of HDDs supported
2
HDD size
2.5"
Material
Steel
Certification
REACH, CE, TAA

Weight & dimensions

Width
102 mm
Depth
116 mm
Height
22 mm
Weight
73 g

Packaging data

Package dimensions (WxDxH)
140 x 165 x 38 mm
Package width
163 mm
Package depth
139 mm
Package height
37 mm
Package weight
190 g

Packaging content

Quick start guide
Yes
Cables included
SATA
Screws included
Yes
Number of lock keys included
13 pc(s)

Technical details

Compliance certificates
RoHS

Logistics data

Products per master (outer) case
44 pc(s)
Master (outer) case width
433 mm
Master (outer) case length
340 mm
Master (outer) case height
339 mm
Harmonized System (HS) code
84733080
