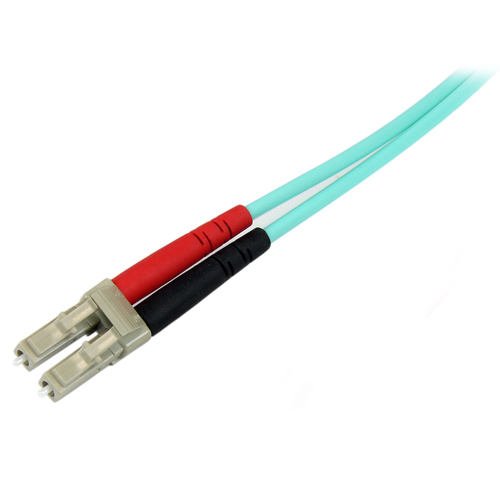

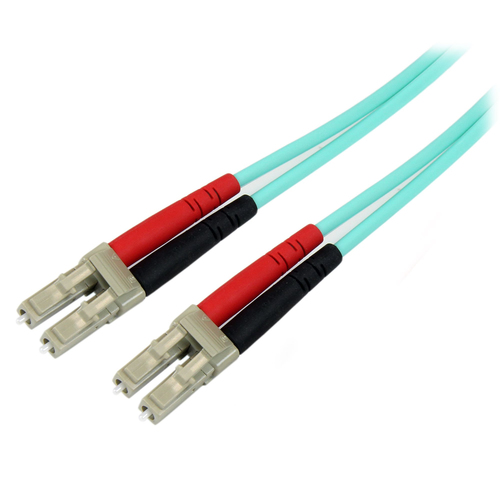

6m (20ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber
- OM3 LC/LC UPC OM3 LOMMF cable supporting 1/10/40/100 Gbps full-duplex connections
- Cable individually tested for signal integrity | Ideal for high-bandwidth multimode transmissions between servers and Storage Area Networks (SANs)
- 50/125µm fiber core/cladding w/Aramid sheath | Optimized for >=2000MHz•km at 850nm w/ VCSEL source
- Core Diameter: 50/125µm | Cord O.D.: 2.9mm | Jacket Material: LSZH | Temperature Range: -20 to 60DEG C (-4 to 140DEG F)
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+
The A50FBLCLC6 5m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
Specifications
Features
- Cable length
- 6 m
- Fibre optic type
- OM3
- Cable shape
- Round
- Connector 1
- LC
- Connector 2
- LC
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Connector polish type
- UPC
- Product colour
- Aqua colour
- Full duplex
- Yes
- Core diameter
- 50 µm
- Cladding diameter
- 125 µm
- Fiber mode structure
- Multi-mode
- Wavelengths supported
- 850,950,953,1050,1150,1250,1260,1280,1300 nm
- Data transfer rate
- 100 Gbit/s
- Jacket material
- Low smoke zero halogen (LSZH)
Certificates
- Compliance certificates
- CE, RoHS
Operational conditions
- Operating temperature (T-T)
- -20 - 60 °C
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Cable diameter
- 2.9 mm
- Weight
- 67 g
- Bending radius
- 6 cm
Packaging data
- Package width
- 220 mm
- Package depth
- 200 mm
- Package height
- 25 mm
- Package weight
- 91 g
Packaging content
- Quantity per pack
- 1 pc(s)
Logistics data
- Master (outer) case width
- 410 mm
- Master (outer) case length
- 410 mm
- Master (outer) case height
- 450 mm
- Products per master (outer) case
- 136 pc(s)
Downloads
