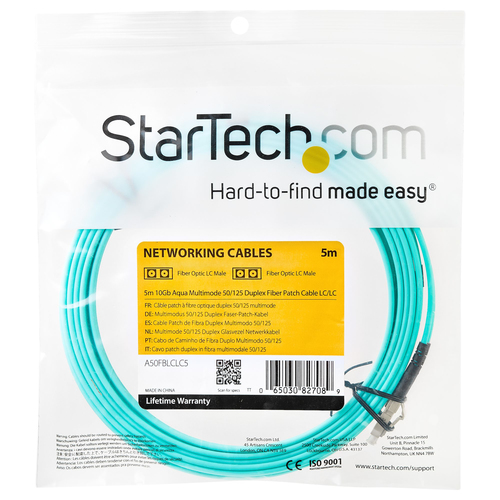

5m (16.4ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber

Part # A50FBLCLC5UPC 065030827089Warranty: Lifetime0.2 lb

5m (16.4ft) OM3 LC/LC UPC OM3 LOMMF cable supporting 1/10/40/100 Gbps full-duplex connections
Cable individually tested for signal integrity | Ideal for high-bandwidth multimode transmissions between servers and Storage Area Networks (SANs)
50/125µm fiber core/cladding w/Aramid sheath | Optimized for >=2000MHz·km at 850nm w/ VCSEL source
Core Diameter: 50/125µm | Cord O.D.: 2.9mm | Jacket Material: LSZH | Temperature Range: -20 to 60DEG C (-4 to 140DEG F)

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+

The A50FBLCLC5 5m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.

This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
