7-Port USB Hub - USB 3.0 5Gbps - USB-A to 7x USB-A - Compact Self Powered USB-A Hub w/ 35W Power

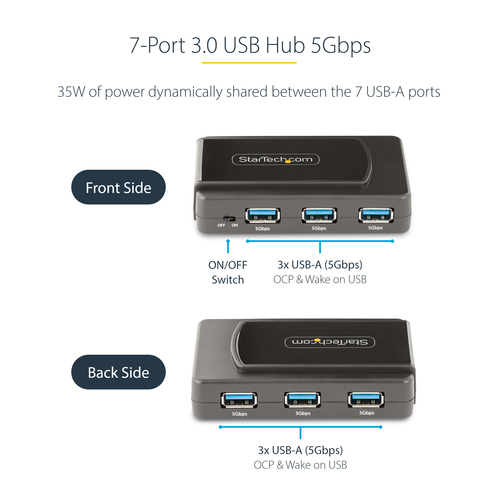

- Self-powered 7-port Superspeed USB 3.2 Gen 1 (5Gbps) expansion hub for desktop computers | 7x USB-A ports | On/off switch | Overcurrent Protection (OCP) | Wake on USB
- USB-A hub w/power adapter | BC 1.2 fast charge port (1.5A/7.5W) | 35W of power dynamically shared across all downstream ports | Charging Downstream Port (CDP) for data/charging
- Compact hub ideal for cubicles/small spaces | 3ft detachable USB-B to A host cable
- USB Event Monitoring app
- Windows/macOS/Linux/ChromeOS
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Add seven external SuperSpeed USB ports with BC 1.2 support from a single USB connection

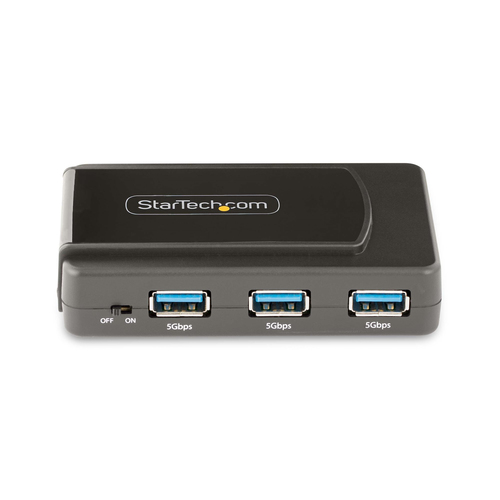

This 7-Port USB 3.2 Gen 1 (5Gbps) hub adds seven USB Type-A ports to a computer, with the added benefit of a dedicated on/off switch. The USB hub is self-powered with an included power adapter, making it ideal for a fixed workstation setup.

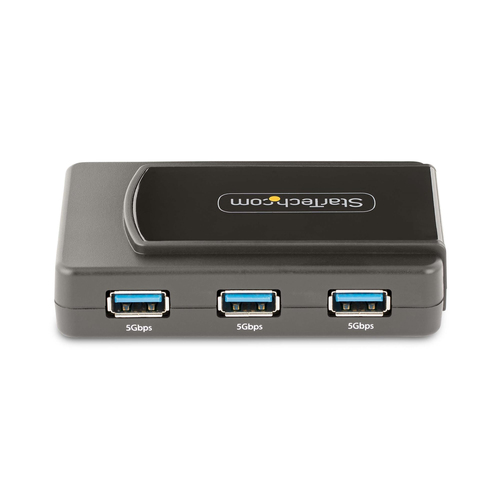

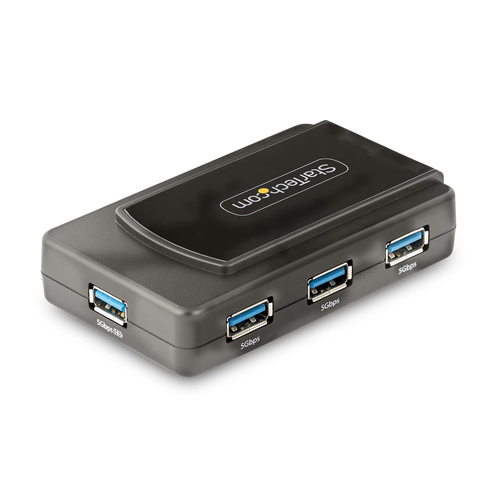

Add Seven USB-A Ports
The USB 3.2 Gen 1 hub expands your laptop or desktop computer's USB connectivity, adding seven USB ports. It is backward compatible with USB 2.0, ensuring support for a wide range of USB devices such as thumb drives, HDDs/SSDs, mice, keyboards, webcams and USB headsets.
Power & Charge

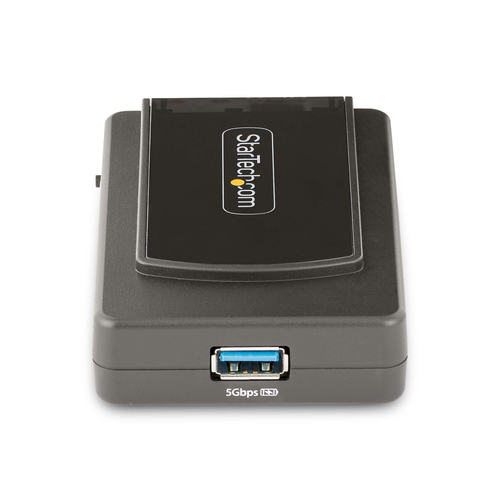

The USB hub is self-powered, using an included power adapter. It includes one fast-charge port that supports BC 1.2, providing 1.5A (7.5W) of power. It also supports CDP (Charging Downstream Port) applications.
Plug-and-Play
The 7-Port USB Hub is OS independent, supporting all operating systems (Windows, macOS, ChromeOS, iPadOS and Android), and installs automatically when connected to a computer.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The applicable software for this product is the USB Event Monitoring Utility. Use this utility to track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-tools
This product is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
Ports & interfaces

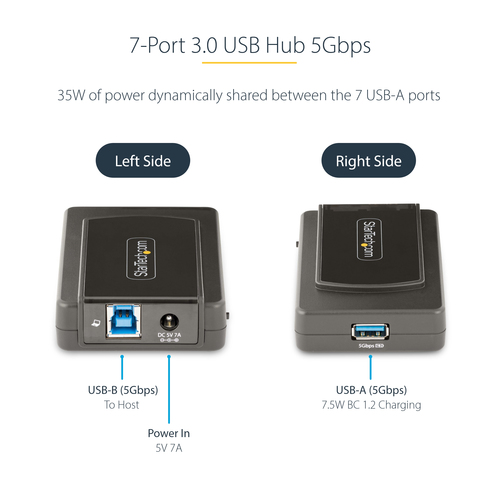

- Host interface

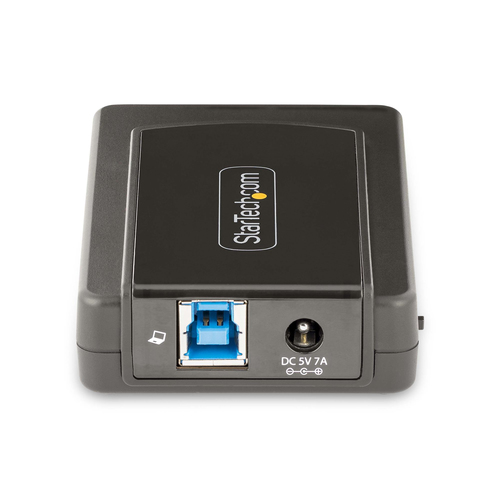

- USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- Hub interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 7
- Ports quantity
- 7
- DC-in jack
- Yes
Features
- Data transfer rate
- 5000 Mbit/s
- Product colour
- Black, Grey
- Housing material
- Plastic
- LED indicators
- Yes
- Cable length
- 1 m
Network
- UASP support
- Yes
Power
- Power supply type
- DC
- Input voltage
- 100 - 240 V
- Input current
- 1.2 A
- Output voltage
- 5 V
- Output current
- 7 A
- Power plug type
- Type M

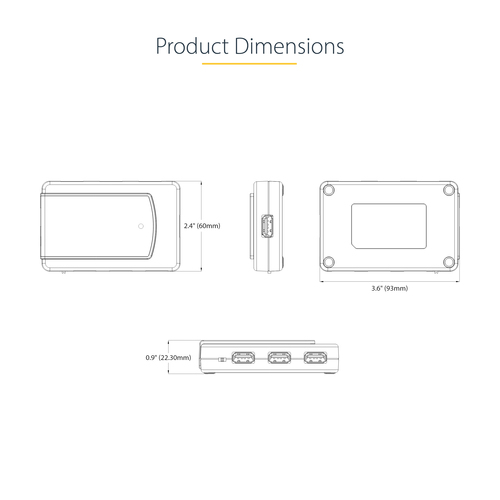

Weight & dimensions
- Width
- 60 mm
- Depth
- 90 mm
- Height
- 20 mm
- Weight
- 81 g
Packaging data
- Package width
- 119 mm
- Package depth
- 175 mm
- Package height
- 89 mm
- Package weight
- 320 g

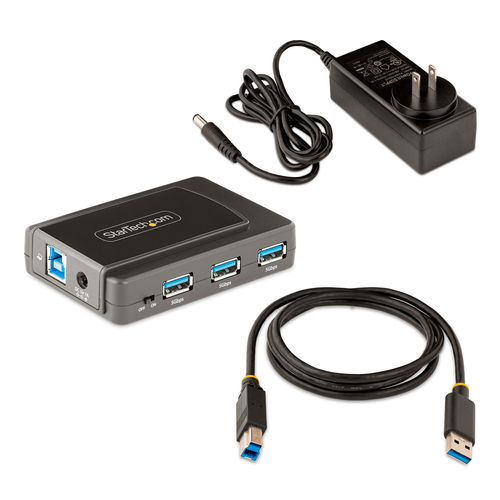

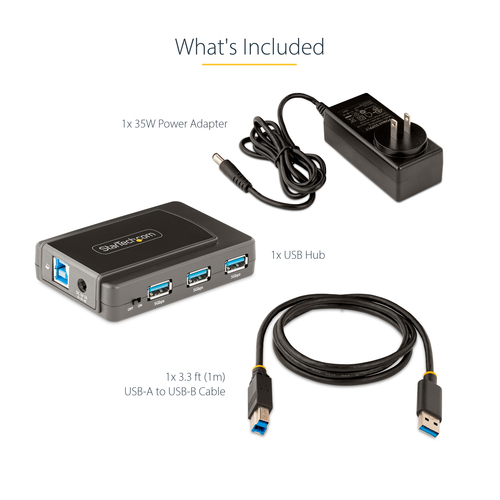

Packaging content
- AC adapter included
- Yes
- Cables included
- USB Type-A to USB Type-B
Operational conditions
- Operating temperature (T-T)
- 5 - 50 °C
- Storage temperature (T-T)
- -20 - 85 °C
- Operating relative humidity (H-H)
- 10 - 90%
Performance
- Mean time between failures (MTBF)
- 50000 h
Logistics data
- Master (outer) case width
- 616 mm
- Master (outer) case length
- 383 mm
- Master (outer) case height
- 387 mm
- Products per master (outer) case
- 40 pc(s)
Other features
- Chipset
- VIA VL817
