7 Port Self-Powered USB C Hub with Individual On/Off Switches, USB 3.0 (5Gbps) Expansion Hub with
- 7-Port Aluminum USB 3.2 Gen 1 (5Gbps) Hub with individual port switches
- On/off port switches on each USB Type-A port saves energy and ensures privacy | Works w/SSDs/thumb drives/web cams/headsets
- Self powered USB laptop/desktop hub w/incl. 65W Power Supply/Adapter | Each port supports BC 1.2 1.5A (7.5W) of power simultaneously
- Support for CDP/DCP provides power with or without a host computer connected
- USB expansion hub includes 3.3ft (1m) USB-C and USB-A host cables
- OS independent
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
7-Port USB Hub | Individual On/Off Port Switches | USB 3.2 Gen 1 (5Gbps) | 3.3ft (1 m) USB-C & USB-A Host Cables Included

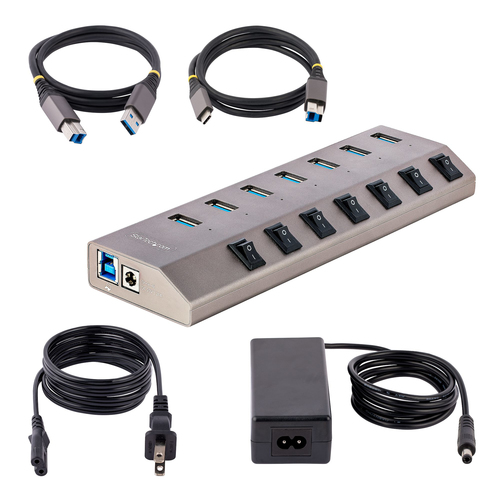

This 7-Port USB 5Gbps Hub adds seven USB Type-A ports to a computer, with the added benefit of each port having an individual on/off switch. The USB hub is self-powered with an included power adapter. It connects to a USB-A, or USB-C port on a laptop or desktop computer.
Seven On/Off Switches
The seven ports on the USB Hub feature a power switch to turn off the computers power connection to the attached device when it's not being used. This means you can turn off individual USB ports to reduce power consumption, without having to physically disconnect the device or cable. Also, this feature can ensure privacy by turning off cameras or external data storage devices that contain sensitive data, when they're not in use.
Power and Charge USB Devices
The USB hub is self-powered, with an included 65W power adapter. This enables all seven ports on this USB hub to support BC 1.2, providing 1.5A (7.5W) of power simultaneously (52.5W total), making it ideal to charge battery powered USB devices like Smartphones, and Tablets, while also providing a data connection. The USB hub will provide power with or without a host computer connected, with support for both CDP (Charging Downstream Port) & DCP (Dedicated Charging Port) applications.
Add Seven USB Ports, to Connect USB Devices
The 7-port USB Hub expands computer's USB connectivity, adding seven USB-A ports from a single USB-A or USB-C port. The USB hub is backward compatible with older USB 2.0 (480Mbps) devices, ensuring support for a wide range of modern and legacy USB devices such as external storage devices (thumb drives, HDDs/SSDs), HD Cameras, mice, keyboards, webcams, and USB headsets.
USB 5Gbps is also known as USB 3.2 Gen 1, and USB 3.0.
Hassle-Free, Plug-and-Play Installation
The 7-Port USB Hub is OS independent supporting all operating systems including Windows, macOS, Chrome OS, iPad OS and Android, and installs automatically when connected to a computer. To ensure wide compatibility with USB host devices, individual 3.3 ft. (1 m) USB-A, and USB-C host cables are included.
Specifications
Ports & interfaces
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- Hub interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 7
- Ports quantity
- 7
- DC-in jack
- Yes
Features
- Data transfer rate
- 5000 Mbit/s
- Product colour
- Grey
- Housing material
- Plastic
- Fast charging
- Yes
- LED indicators
- Yes
- Cable length
- 1 m
- Plug and Play
- Yes
Network
- UASP support
- Yes
Power
- Power supply type
- DC
- Power consumption (typical)
- 65 W
- Input voltage
- 110 - 240 V
- Output voltage
- 20 V
- Output current
- 3.25 A
- Power plug type
- Type M
Weight & dimensions
- Width
- 188 mm
- Depth
- 59 mm
- Height
- 21 mm
Packaging data
- Package width
- 227 mm
- Package depth
- 175 mm
- Package height
- 71 mm
- Package weight
- 800 g
Packaging content
- AC adapter included
- Yes
- Included power plug types
- US
- Cables included
- USB
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
Performance
- Mean time between failures (MTBF)
- 50000 h
Sustainability
- Sustainability compliance
- Yes
Logistics data
- Master (outer) case width
- 477 mm
- Master (outer) case length
- 378 mm
- Master (outer) case height
- 193 mm
- Products per master (outer) case
- 10 pc(s)
Technical details
- Compliance certificates
- CE, RoHS
Other features
- Chipset
- VIA - VL817
