StarTech.com 5G4AIBS-USB-HUB-NA Drag to turn · 6 views
StarTech.comInterface Hubs

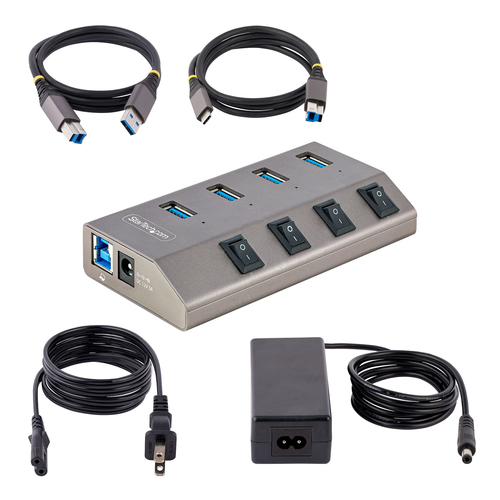

4 Port Self-Powered USB C Hub with Individual On/Off Switches, USB 3.0 (5Gbps) Expansion Hub with

Part # 5G4AIBS-USB-HUB-NAUPC 065030893756Warranty: 2 Years1.3 lb

  • 4-Port Aluminum USB 3.2 Gen 1 (5Gbps) Hub with individual port switches
  • On/off port switches on each USB Type-A port saves energy and ensures privacy | Works w/SSDs/thumb drives/web cams/headsets
  • Self powered USB laptop/desktop hub w/incl. 36W Power Supply/Adapter | Each port supports BC 1.2 1.5A (7.5W) of power simultaneously
  • Support for CDP/DCP provides power with or without a host computer connected
  • USB expansion hub includes 3.3ft (1m) USB-C and USB-A host cables
  • OS independent
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

4-Port USB Hub | Individual On/Off Port Switches | USB 3.2 Gen 1 (5Gbps) | 3ft (1 m) USB-C & USB-A Host Cables Included

This 4-Port USB 5Gbps Hub adds four USB Type-A ports to a computer, with the added benefit of each port having an individual on/off switch. The USB hub is self-powered with an included power adapter. It connects to a USB-A, or USB-C port on a laptop or desktop computer.

01

Four On/Off Port Switches

The four ports on the USB Hub feature a power switch to turn off the computers power connection to the attached device when it's not being used. This means you can turn off individual USB ports to reduce power consumption, without having to physically disconnect the device or cable. Also, this feature can ensure privacy by turning off cameras or external data storage devices that contain sensitive data, when they're not in use.

02

Power and Charge USB Devices

The USB hub is self-powered, with an included 36W power adapter. This enables all four ports on this USB hub to support BC 1.2, providing 1.5A (7.5W) of power simultaneously (30W total), making it ideal to charge battery powered USB devices like Smartphones, and Tablets, while also providing a data connection. The USB hub will provide power with or without a host computer connected, with support for both CDP (Charging Downstream Port) & DCP (Dedicated Charging Port) applications.

03

Add Four USB Ports, to Connect USB Devices

The 4-port USB Hub expands a computer's USB connectivity, adding four USB-A ports from a single USB-A or USB-C port. The USB hub is backward compatible with older USB 2.0 (480Mbps) devices, ensuring support for a wide range of modern and legacy USB devices such as external storage devices (thumb drives, HDDs/SSDs), HD Cameras, mice, keyboards, webcams, and USB headsets.

USB 5Gbps is also known as USB 3.2 Gen 1, and USB 3.0.

04

Hassle-Free, Plug-and-Play Installation

The 4-Port USB Hub is OS independent supporting all operating systems including Windows, macOS, Chrome OS, iPad OS and Android, and installs automatically when connected to a computer. To ensure wide compatibility with USB host devices, individual 3.3 ft. (1 m) USB-A, and USB-C host cables are included.

Specifications

Ports & interfaces

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ports quantity
4
DC-in jack
Yes

Features

Data transfer rate
5000 Mbit/s
Product colour
Grey
Housing material
Plastic
Fast charging
Yes
LED indicators
Yes
Cable length
1 m
Plug and Play
Yes

Network

UASP support
Yes

Power

Power supply type
DC
Power consumption (typical)
36 W
Input voltage
100 - 240 V
Output voltage
12 V
Output current
3 A
Power plug type
Type M

Weight & dimensions

Width
106 mm
Depth
59 mm
Height
20 mm
Weight
110 g

Packaging data

Package width
169 mm
Package depth
230 mm
Package height
72 mm
Package weight
406 g

Packaging content

AC adapter included
Yes
Included power plug types
US
Cables included
USB

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%

Performance

Mean time between failures (MTBF)
50000 h

Sustainability

Sustainability compliance
Yes

Logistics data

Master (outer) case width
465 mm
Master (outer) case length
375 mm
Master (outer) case height
190 mm
Products per master (outer) case
10 pc(s)

Technical details

Compliance certificates
CE, RoHS

Other features

Chipset
VIA - VL817
