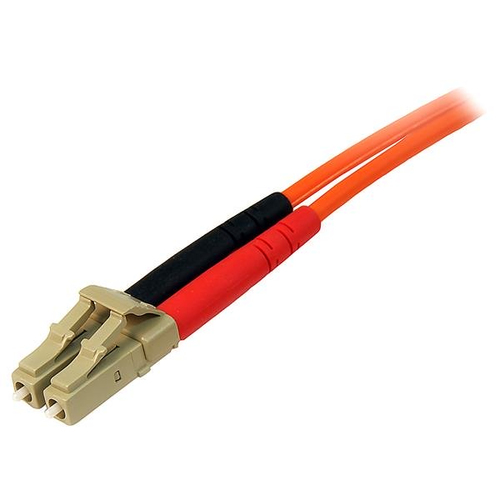

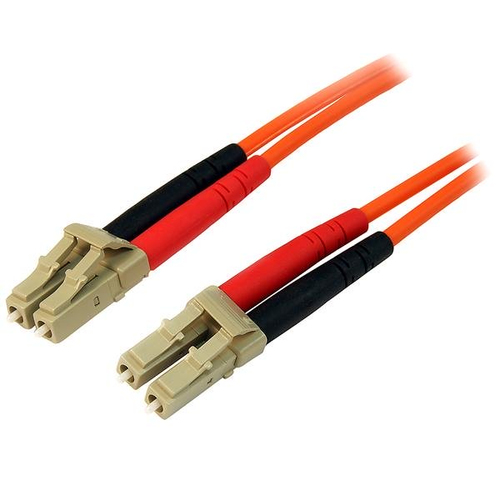

3m Fiber Optic Cable - Multimode Duplex 50/125 - LSZH Fiber Jumper Cord - LC/LC
- Connect fiber network devices for high-speed transfers with LSZH rated cable
- 3 meter Duplex Fiber Cable/LC to LC/Multimode Patch Cable/3m Multimode 50/125 Duplex Fiber Optic Cable LC to LC
- OM2 (50/125) 500MHz multimode fiber
- LSZH (Low-Smoke, Zero-Halogen) cable jacket
- Immune to electrical interference
- Ideal solution for data applications requiring high speed data transmission
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Connect fiber network devices for high-speed transfers with LSZH rated cable
The 50FIBLCLC3 3m LSZH LC to LC Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.
Specifications
Features
- Cable length
- 3 m
- Fibre optic type
- OM2
- Connector 1
- LC
- Connector 2
- LC
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Orange
- Full duplex
- Yes
- Core diameter
- 50 µm
- Cladding diameter
- 125 µm
- Fiber mode structure
- Multi-mode
- Data transfer rate
- 10 Gbit/s
- Jacket material
- Low smoke zero halogen (LSZH)
Sustainability
- Doesn't contain
- Halogen
Certificates
- Compliance certificates
- REACH, RoHS
- Certification
- CE
Operational conditions
- Operating temperature (T-T)
- -20 - 60 °C
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Weight
- 40 g
Packaging data
- Package width
- 198 mm
- Package depth
- 157 mm
- Package height
- 18 mm
Logistics data
- Master (outer) case width
- 345 mm
- Harmonized System (HS) code
- 85447000
- Master (outer) case length
- 245 mm
- Master (outer) case height
- 245 mm
- Products per master (outer) case
- 200 pc(s)
