SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA

Part # 4P6G-PCIE-SATA-CARDUPC 065030893879Warranty: 2 Years0.25 lb

4-Port SATA III 6Gbps PCI Express 3.0 x2 expansion card
SATA adapter converter card features ASM1164 controller for 6x SATA 6Gbps ports w/combined bandwidth of 16Gbps
No built-in RAID for improved motherboard compatibility | Full/low-profile brackets
PCIe 3.0 | SATA 3.2 | AHCI 1.4 | ATA & ATAPI for HDD, SSD, ODD support
Windows (7+) | macOS (10.10+) | Linux (2.6.32+)
Supports storage management systems like Storage Spaces (Microsoft)/RAID Assistant (macOS)/mdraid/mdadm (Linux)

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

SATA III (6Gbps) | PCI Express 3.0 | PCIe x2 Slot | 4x SATA Connectors | 2-Year Warranty

This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.

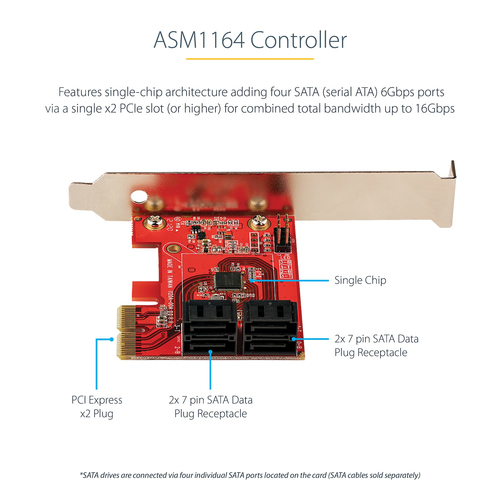

ASM1164 to Deliver 4-Port SATA 6Gbps Performance

Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).

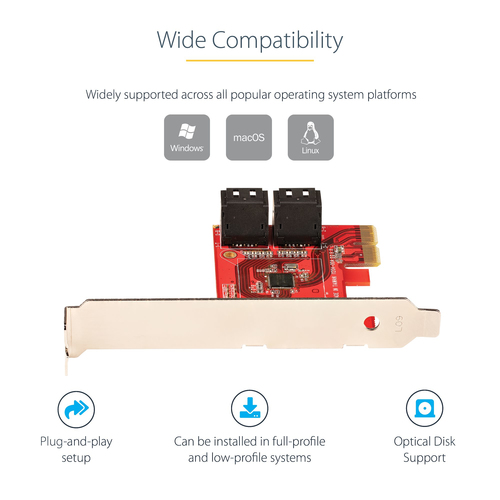

Wide Compatibility

The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).

To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.

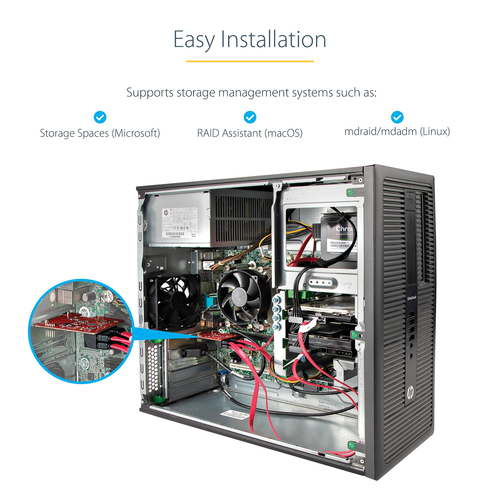

Hassle-Free Installation

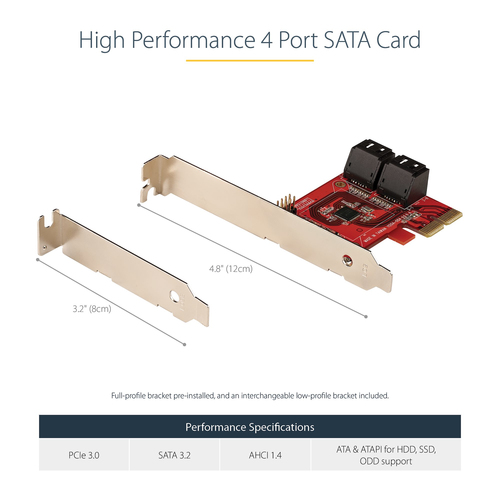

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.

4P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.

Specifications

Ports & interfaces

Host interface: PCIe
Output interface: SATA
Expansion card standard: PCIe 3.0
SATA revision: 3.0
Internal SATA ports quantity: 4
Port multiplier: Yes

Design

Internal: Yes
Product colour: Red

Features

Chipset: ASMedia - ASM1164
Data transfer rate (max): 6 Gbit/s
S.M.A.R.T. support: Yes
TRIM support: Yes

Operational conditions

Operating temperature (T-T): 0 - 85 °C
Storage temperature (T-T): -25 - 85 °C
Operating relative humidity (H-H): 20 - 80%

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
