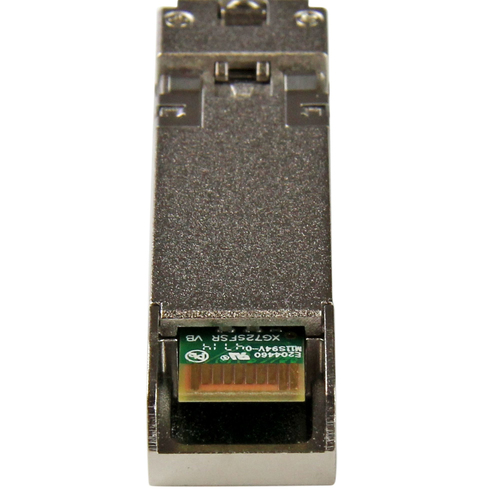

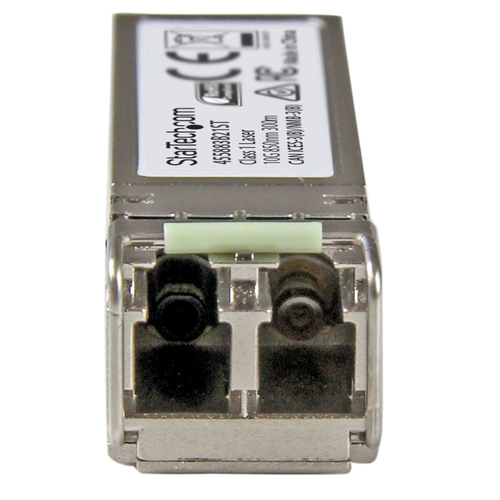

HPE 455883-B21 Compatible SFP+ Module - 10GBASE-SR - 10GbE Multi Mode Fiber Optic Transceiver
- HPE 455883-B21 Compatible SFP+ 10GBASE-SR (10Gbps) Gigabit Ethernet
- 850nm Multi Mode (MMF)
- Up to 300m (984')
- LC Connector DDM
- For HPE switches like: 6120XG 6120G Flex Fabric BLc 7000 BladeSystem
- Hot-Swappable and MSA Compliant
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | TAA | Lifetime Warranty
The 455883B21ST is a TAA compliant HPE 455883-B21 compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 11.1 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 3,068,049 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 11100 Mbit/s
- Interface type
- SFP+
- Multi-mode fiber (MMF) supported
- Yes
- Fiber optic connector
- LC
- SFP transceiver standard
- SR
- Maximum transfer distance
- 300 m
- Wavelength
- 850 nm
- Networking standards
- IEEE 802.3ae
- Duplex system
- Full
- Digital Diagnostics Monitoring (DDM)
- Yes
- Wavelength-division multiplexing (WDM)
- No
Features
- Product colour
- Silver
- Housing material
- Aluminium
- Hot-swap
- Yes
- Mean time between failures (MTBF)
- 3068049 h
Power
- Power consumption (typical)
- 1 W
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, UL, TAA, UR
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 13.3 mm
- Depth
- 57 mm
- Height
- 8.9 mm
- Weight
- 19 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 77 mm
- Package depth
- 121 mm
- Package height
- 34 mm
- Package weight
- 51 g
Logistics data
- Master (outer) case width
- 339 mm
- Master (outer) case length
- 633 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 305 mm
- Products per master (outer) case
- 150 pc(s)
- Country of origin
- Taiwan
