Desk Mount Triple Monitor Arm with Crossbar For Up To Three 27in Screens, VESA 75x75/100x100
- Triple monitor desk mount for up to three 13.2lb 27in displays
- VESA 75x75/100x100
- One-touch spring-assisted articulating arm
- Cross bar design and built-in handle for effortless positioning
- Toolless ergonomic arm with +/-180DEG swivel
- +/-90DEG tilt
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

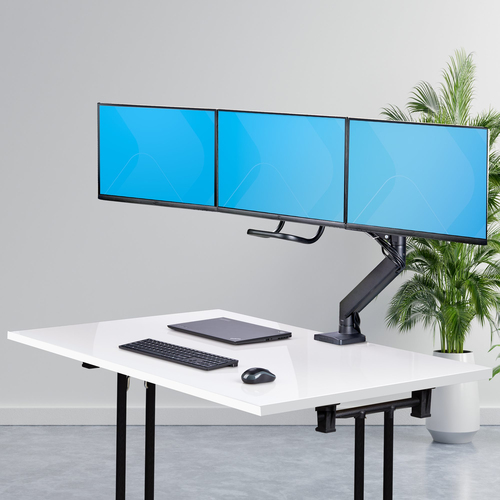

Triple monitor desk mount with support for up to 27" monitors with height adjustable crossbar

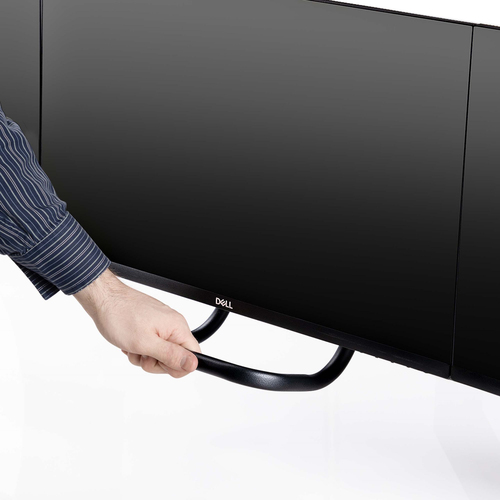

This crossbar monitor desk mount is designed to support up to three 27-inch displays, creating an ergonomic multi-monitor setup that provides an extensive viewing area for productivity. A built-in handle enables moving all monitors simultaneously, while the spring-assisted arm allows multiple adjustments to suit different ergonomic needs.

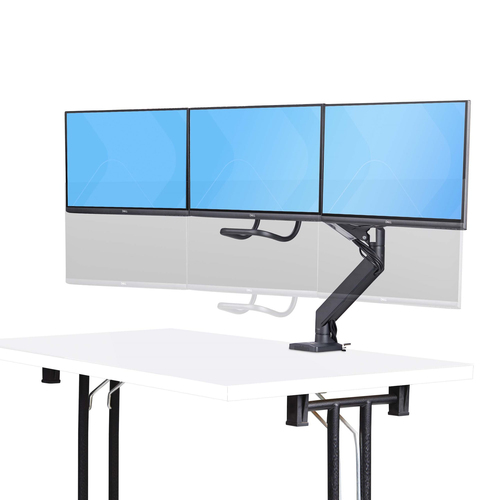

Height Adjustment with One Smooth Motion
The spring arm enables toolless height adjustment of up to 13in (330mm) with effortless one-touch motion. The maximum arm extension is 24.8in (630mm), and the minimum arm extension is 4in (104mm). The weight capacity is 13.2lb (6kg) per VESA mount.
Visual Experience
This triple monitor mount features micro height adjustment screws on the VESA plate that enable perfect alignment of all three monitors. This is ideal for bezel-less or slim bezel displays, helping to create a more extensive and seamless viewing area. The outer displays' VESA mounts slide along the crossbar, allowing further adjustments.
Range of Motion
The monitor crossbar allows toolless adjustments of +/-15° horizontal swivel of the outer displays. The monitors' VESA mounts enable +/-10° horizontal swivel, +5/-15° tilt, and 360° screen rotation for portrait or landscape orientations.

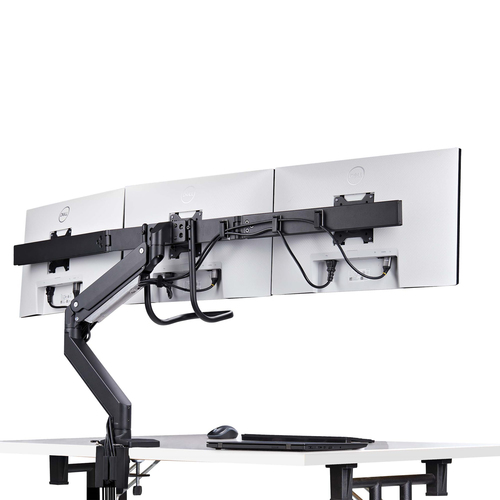

Cable Management

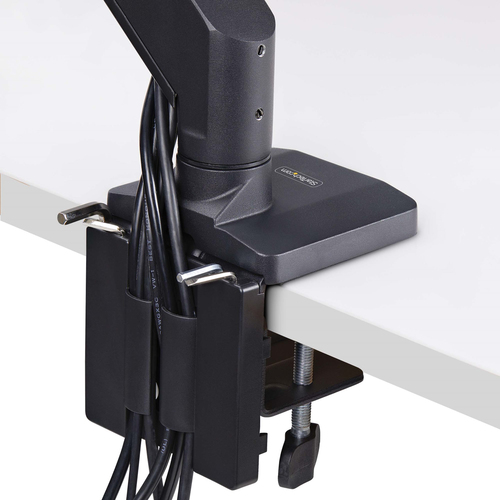

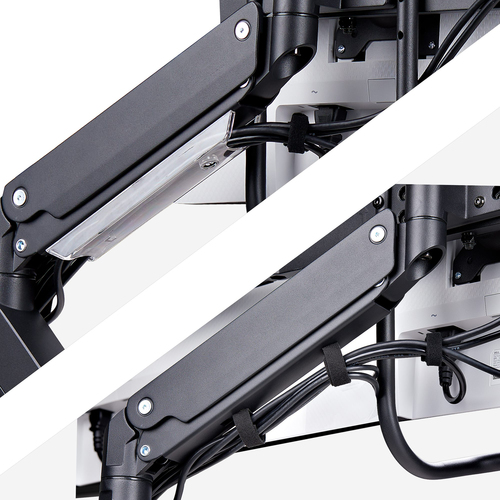

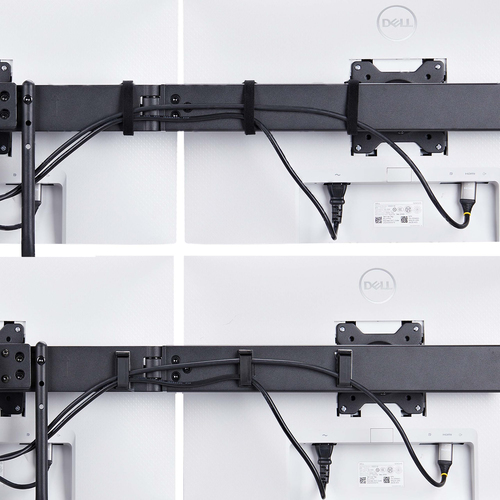

To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip at the base maintains an organized workspace.
Specifications
Mounting
- Maximum weight capacity
- 18 kg
- Minimum screen size
- 43.2 cm (17")
- Number of displays supported
- 3
- Maximum weight capacity (per display)
- 6 kg
- Maximum screen size
- 68.6 cm (27")
- Mounting
- Clamp/Grommet
- Mounting type
- Desk
- Minimum VESA mount
- 75 x 75 mm
- Maximum VESA mount
- 100 x 100 mm
- Extension arm (max)
- 52.6 cm
- Desk thickness (min)
- 1 cm
- Desk thickness (max)
- 8.5 cm
Ergonomics
- Height adjustment
- Yes
- Height adjustment range
- 265 - 595 mm
- Tilt angle range
- -15 - 5°
- Swivel angle range
- -10 - 10°
- Rotating
- Yes
- Angle of rotation
- 360°
- Pivot angle
- -180 - 180°
- Cable management
- Yes
Design
- Housing material
- Aluminium, Plastic, Steel
- Product colour
- Black, Silver
- Anti-theft function
- No
Weight & dimensions
- Width
- 630 mm
- Depth
- 1400 mm
- Height
- 595 mm
- Weight
- 8.4 kg
Packaging data
- Package width
- 614 mm
- Package depth
- 339 mm
- Package height
- 165 mm
- Package weight
- 10 kg

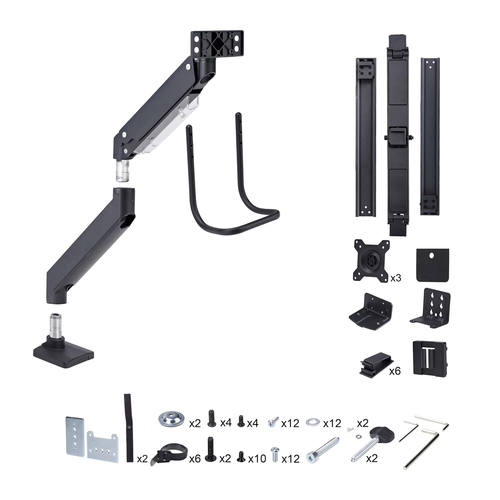

Packaging content
- Wrench included
- Yes
- Wrench type
- Hexagonal wrench
- VESA mount included
- Yes
- Number of cable clips
- 6
- Screws included
- Yes
- Number of screws
- 47
- Number of washers included
- 14
- Grommet base plate included
- Yes
- Manual
- Yes
Logistics data
- Master (outer) case width
- 613 mm
- Master (outer) case length
- 339 mm
- Master (outer) case height
- 165 mm
- Products per master (outer) case
- 1 pc(s)
