Desk Mount Monitor Arm For 27in 16:9 or 30in 21:9 Ultrawide Screens, VESA 75x75/100x100, Tool-Less
- Monitor Desk Mount fits 27in or 30in screens including ultrawide
- Detachable 75x75/100x100mm VESA mount
- One-touch mechanical spring arm
- Tool-Less ergonomic arms with +/-180DEG swivel
- 105DEG tilt
- VESA 360DEG rotation for portrait/landscape screens
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Single monitor desk mount with support up to 30" monitors and height-adjustable articulating arm
This monitor desk mount is designed to support up to 27-inch 16:9 or 30-inch 21:9 display, creating an ergonomic area for productivity. The mechanical spring-assisted arm enables multiple adjustment to suit different ergonomic needs.
Height Adjustment with One Smooth Motion
The spring arm enables toolless height adjustment of up to 10.6in (270mm) with effortless one-touch motion. Adjust the height of the arm along the 10.2in (261mm) pole. The arm can extend up to 22.2in (590mm) from the pole.
Toolless Assembly
The quick toolless slide and click design makes assembly quick and simple. The pre-assembled desk clamp and pole can be easily secured by hand to the desk, saving total installation time.
Range of Motion
The articulating arm enables toolless adjustments of +/-180° horizontal swivel, 105° tilt, 240° pan, and 360° screen rotation on the VESA plate for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.
Durable Construction
With its steel and aluminum construction, the premium monitor arm supports a weight capacity of 19.8 lb. (9 kg). Die-cast aluminum arms with mechanical springs that passed 10,000 cycle test and are backed for 10 years for long-lasting performance.
Cable Management
To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip on the pole also helps maintain an organized workspace.
Specifications
Mounting
- Maximum weight capacity
- 9 kg
- Minimum screen size
- 43.2 cm (17")
- Number of displays supported
- 1
- Maximum screen size
- 76.2 cm (30")
- Mounting
- Clamp/Grommet
- Mounting type
- Desk
- Minimum VESA mount
- 75 x 75 mm
- Maximum VESA mount
- 100 x 100 mm
- Extension arm (max)
- 59 cm
- Desk thickness (min)
- 1 cm
- Clamp mount desk thickness (max)
- 11 cm
- Grommet mount desk thickness (max)
- 6 cm
Ergonomics
- Height adjustment
- Yes
- Height adjustment range
- 270 - 302 mm
- Tilt angle range
- -15 - 90°
- Swivelling
- Yes
- Swivel angle
- 120°
- Rotating
- Yes
- Angle of rotation
- 90°
- Pivot angle
- -180 - 180°
- Cable management
- Yes
Design
- Housing material
- Aluminium, Plastic, Steel
- Product colour
- Black, Silver
- Anti-theft function
- No
Weight & dimensions
- Width
- 674 mm
- Depth
- 103 mm
- Height
- 361 mm
- Weight
- 3 kg
Packaging data
- Package width
- 478 mm
- Package depth
- 295 mm
- Package height
- 141 mm
- Package weight
- 3.8 kg
Packaging content
- Wrench included
- Yes
- Wrench type
- Hexagonal wrench
- VESA mount included
- Yes
- Number of cable clips
- 1
- Screws included
- Yes
- Number of screws
- 4
- Manual
- Yes
Other features
- Compliance certificates
- Trade Agreements Act (TAA)
Logistics data
- Master (outer) case width
- 485 mm
- Master (outer) case length
- 702 mm
- Master (outer) case height
- 312 mm
- Products per master (outer) case
- 5 pc(s)
More in Projector Mounts
StarTech.comVESA-compatible heavy-duty mobile TV stand/trolley supports flat-scree1110C-MOBILE-TV-CART
StarTech.comDouble monitor VESA mount supports dual 27inch displays; Crossbar desi2MC1S-MONITOR-STAND
StarTech.comTriple monitor desk mount for up to three 13.2lb 27in displays; VESA 73M1A3SG-MONITOR-ARM
EpsonEPSON Ultra-Short Throw Wall Mount for the BrightLink 725W/735Fi/1480 V12HA06A05
StarTech.comMaximize desk space with this steel corner sleeve for 90 L-Shaped/CornDSKCRNRSLV
StarTech.comFloating wall-mount AV shelf is 5mm thick black tempered glass with an1B-WALL-MOUNT-SHELF
StarTech.comFloating wall-mount AV shelves are 5mm thick black tempered glass with2B-WALL-MOUNT-SHELF

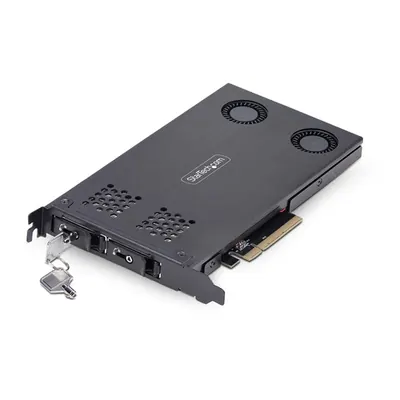

StarTech.comUtilize a PCIe x8/x16 slot as a removable drive bay for 2x M.2 NVMe SS2M2-REMOVABLE-PCIE
