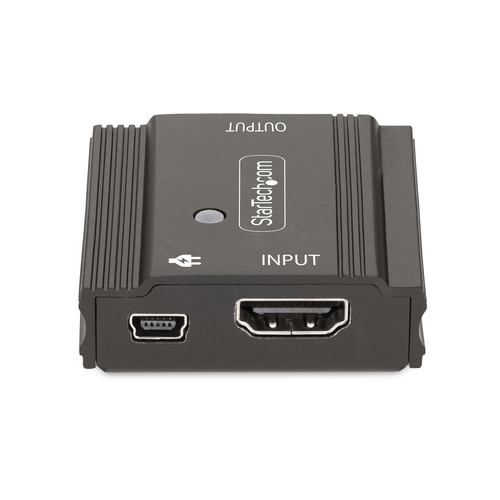

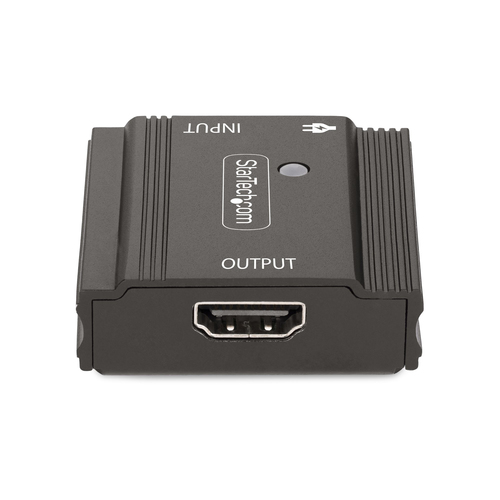

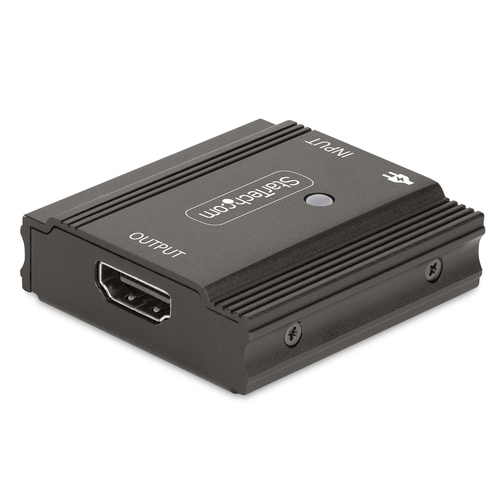

33ft (10m) 8K 60Hz HDMI Signal Booster, Active HDMI 2.1 Inline Repeater and Video Signal Amplifier
- Connect two HDMI cables to make an extra-long HDMI cable supporting resolutions up to 8K 60Hz / 4K 144Hz with DSC
- Max cable length of 13ft (4m) from the video source and 20ft (6m) to the display
- TAA Compliant Signal Amplifier is powered via USB Port/Wall Charger

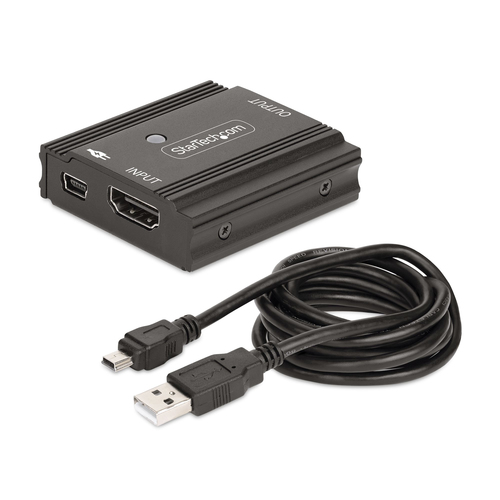

- 5ft (1.5m) USB-A Power Cable included
- Supports other resolutions at longer distances such as 1080p at 150ft (45m)
- Inline HDMI 2.1 Repeater requires no drivers or software
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

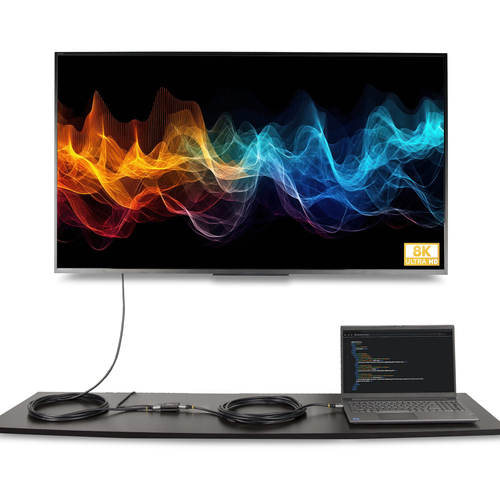

Amplify and extend an 8K 60Hz HDMI® signal, connecting two DSC-enabled devices, using two Ultra High Speed HDMI cables
Combine two HDMI 2.1 cables into one extra-long 33ft (10m) cable, using this HDMI Signal Booster. Connect a DSC-enabled source and display for resolutions of up to 8K at 60Hz.
Maintain 8K 60Hz Video
Extend an 8K 60Hz HDMI signal over existing HDMI cabling at up to 33ft (10m). It supports lower resolutions at longer distances, such as 4K 60Hz at 83ft (25m). This HDMI 2.1 compliant device supports CEC, HDR10, HDCP, DSC, and 7.1ch audio.
Hassle-Free Installation
The TAA-Compliant HDMI signal amplifier requires no drivers or software. Its compact form factor and metal enclosure make it suitable for installation in a variety of environments. An included 5ft (1.5m) USB Type-A power cable is provided to connect to an available USB port or USB wall charger, if required.
Specifications
Features
- Type
- AV repeater
- Maximum resolution
- 7680 x 4320 pixels
- Maximum transfer distance
- 10 m
- High Dynamic Range (HDR) supported
- Yes
- High Dynamic Range (HDR) technology
- High Dynamic Range 10 (HDR10)
- Maximum refresh rate
- 144 Hz
- Audio output channels
- 7.1 channels
- LED indicators
- Power
- Supported graphics resolutions
- 1920 x 1080 (HD 1080), 2560 x 1080, 3440 x 1440, 3840 x 2160, 5120 x 1440, 7680 x 4320
- Bandwidth
- 48 Gbit/s
- HDCP
- Yes
- Rack mounting
- No
- Consumer Electronics Control (CEC) support
- Yes
- Plug and Play
- Yes
- Daisy chain
- No
- HDCP version
- 1.4/2.2/2.3
- Product colour
- Black
Ports & interfaces
- Connectivity technology
- Wired
- HDMI in
- 1
- Number of HDMI outputs
- 1
- HDMI version
- 2.1
- USB ports quantity
- 1
- USB connector type
- Mini-USB
Power
- Power source type
- USB
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 46 mm
- Depth
- 49 mm
- Height
- 16 mm
- Weight
- 57 g
Packaging data
- Package width
- 100 mm
- Package depth
- 157 mm
- Package height
- 48 mm
- Package weight
- 60 g
Packaging content
- Cables included
- Mini-USB
- Quick start guide
- Yes
Logistics data
- Master (outer) case width
- 425 mm
- Master (outer) case length
- 170 mm
- Master (outer) case height
- 175 mm
- Products per master (outer) case
- 12 pc(s)
