SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA

Part # 2P6GR-PCIE-SATA-CARDUPC 065030893169Warranty: Lifetime0.15 lb

2-Port SATA III 6Gbps PCI Express 2.0 x2 expansion controller card w/Hardware RAID
RAID 0/RAID 1/SPAN (Big Disk)/JBOD (Just a Bunch of Disks)
Windows (7+) | macOS (10.10+) | Linux (2.6.32+)
OS booting on Windows/Linux for BIOS level RAID setup/config | Included app on Windows for OS level RAID setup/config and monitoring | Software RAID on macOS

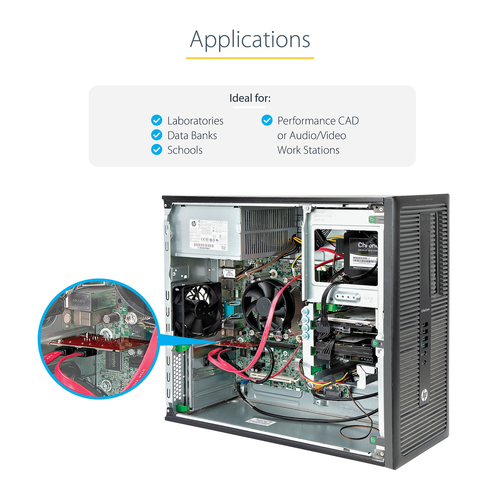

PCIe adapter converter Ideal for laboratories/performance CAD or A/V work stations/data banks and schools | Full/low-profile brackets

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

This 2-port SATA III (6Gbps) controller with RAID enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot, and build the disks into a hardware RAID array. The card supports SATA III and PCI-Express 2.0 Specifications, and can also be used to add optical disk drives (ODD) like CD/DVD/Blu-ray to your computer.

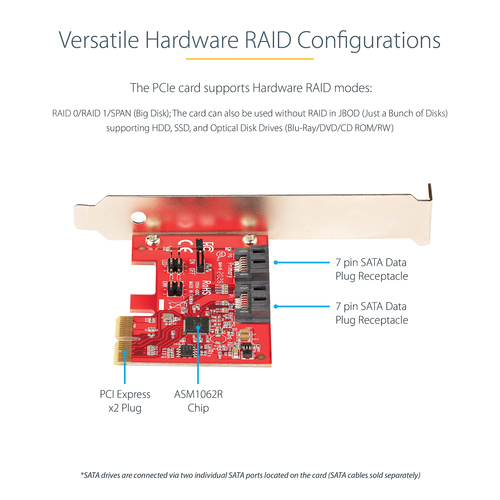

Versatile Hardware RAID Configurations

This RAID controller supports different hardware RAID configurations to meet your specific application:

• RAID 0 (striped) - Splits your data evenly across both drives to increase read/write performance, while also increasing the size of your volume storage capacity to the combined total of both drives.

• RAID 1 (mirrored) - Exactly copies your data on both drives to provide data redundancy, so your data will be safely backed-up should one of the drives fail.

• SPAN (big) - Combines both drives into a single array to increase the size of your volume storage capacity to the combined total of both drives.

• JBOD (Just a bunch of disks) - Exposes both drives as individual devices to be treated independently.

ASM1062R to Deliver 2-Port SATA 6Gbps Performance

Featuring the ASM1062R controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).

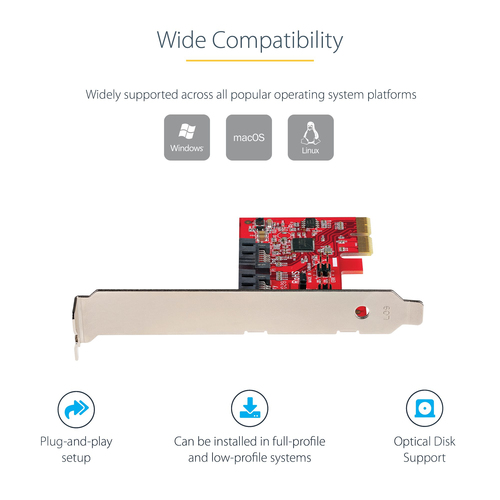

Wide Compatibility

The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.

For managing and configuring RAID functionality, the card supports OS booting on Windows & Linux for BIOS level RAID setup & configuration, and includes an application on Windows for OS level RAID setup, configuration & monitoring. On macOS only software RAID is supported using RAID Assistant.

Hassle-Free Installation

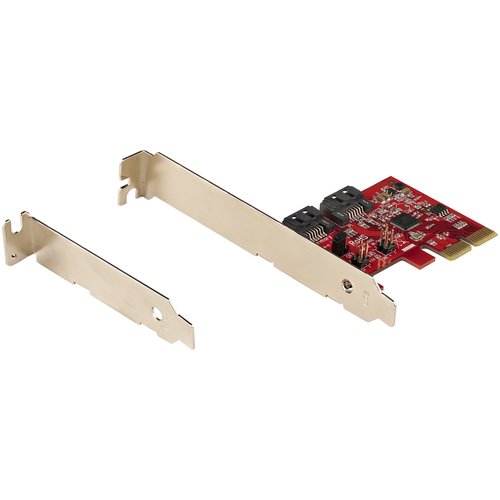

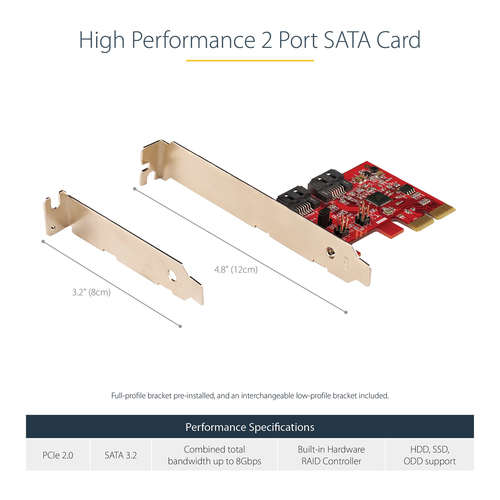

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included.

2P6GR-PCIE-SATA-CARD is backed by a StarTech.com lifetime warranty and free lifetime 24/5 North American based, multi-lingual support.

Specifications

Ports & interfaces

Host interface: PCIe
Output interface: SATA
Expansion card standard: PCIe 2.0
SATA revision: 3.0
Internal SATA ports quantity: 2
Port multiplier: Yes

Design

Internal: Yes
Product colour: Red
LED indicators: Yes

Features

Chipset: ASMedia - ASM1062R
Data transfer rate (max): 6 Gbit/s
S.M.A.R.T. support: Yes
TRIM support: Yes
RAID levels: 0, 1, BIG, JBOD

Operational conditions

Operating temperature (T-T): 0 - 85 °C
Storage temperature (T-T): -25 - 85 °C
Operating relative humidity (H-H): 20 - 80%

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
