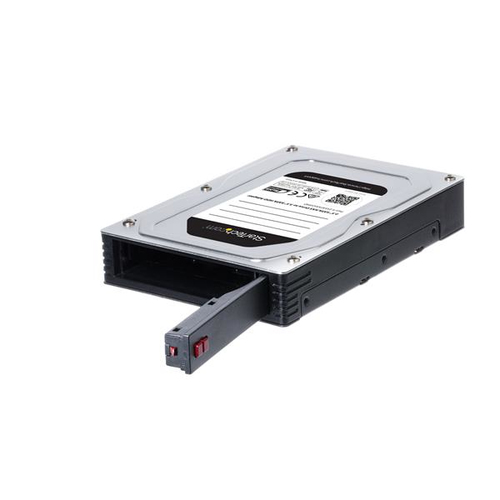

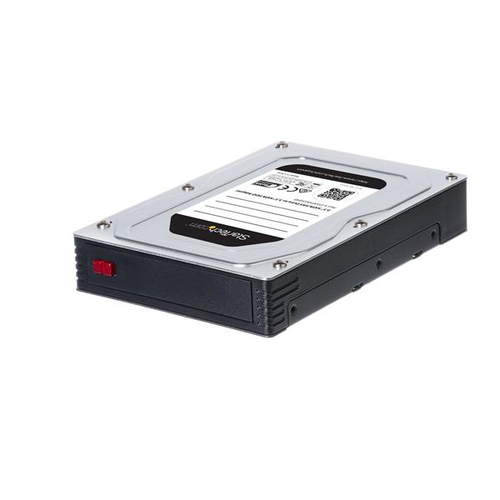

2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs
- Turn almost any 2.5" SATA/SAS drive into a 3.5" drive
- Supports 2.5" hard drives (HDD) and solid state drives (SSD) up to 15mm in height
- Installs into an internal or external 3.5" drive bay: uses standard mounting holes for internal installs
- Tool-less 2.5" drive installation
- Supports SATA I/ II /III (up to 6Gbps)
- Support for SAS revision I/II (3.0/6.0 Gbps)
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Turn almost any 2.5" SATA/SAS drive into a 3.5" drive
This 2.5" to 3.5" hard drive adapter lets you install a 2.5" SATA or SAS hard drive (HDD) or solid-state drive (SSD) into an internal or external 3.5" drive bay, using standard drive-mounting holes.
Convert a 2.5" drive into a 3.5" drive
The 2.5" to 3.5" hard drive bay adapter lets you install a newer, higher performance drive such as an SSD into a legacy system that may only support a 3.5" hard drive. It provides a cost-efficient way to enhance storage performance and reliability without expensive upgrades to core IT systems. It's also ideal for system administrators who want to build a system that takes advantage of the increased performance of a 2.5" HDD/SSD.
To utilize the full speed potential of your SATA/SAS drive, the adapter supports transfer speeds up to 6Gbps.
Easy and flexible installation
You can install the adapter into a desktop, server, storage-array, hot-swap bay, and drive drawer. It offers permanent installation in a 3.5" drive bay with standard mounting holes. When the adapter is installed, you simply slide a 2.5" HDD/SSD into the adapter enclosure, with no tools required.
The adapter is suitable for drives with a height of up to 15 mm. Virtually any 2.5" SATA/SAS drive can be made to look and function like a 3.5" drive.
Identify and track your drives
The adapter includes a label you can use to track and record information about the installed drive.
The 25SATSAS35HD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Features
- Size (imperial)
- 8.89 cm (3.5")
- Type
- Carrier panel
- Product colour
- Black, Silver
- Number of HDDs supported
- 1
- HDD size
- 2.5"
- HDD interface
- Serial ATA, Serial Attached SCSI (SAS)
- Material
- Aluminium, Plastic
- Supported storage drive heights
- 7,9.5,12.5,15 mm
- Hot-swap
- Yes
- Number of fans
- 0 fan(s)
- Data transfer rate
- 6 Gbit/s
- Key lock
- No
- S.M.A.R.T. support
- Yes
- Certification
- CE, FCC
Weight & dimensions
- Width
- 101 mm
- Depth
- 146 mm
- Height
- 26 mm
- Weight
- 252 g
Packaging data
- Package dimensions (WxDxH)
- 112 x 160 x 35 mm
- Package width
- 162 mm
- Package depth
- 114 mm
- Package height
- 39 mm
- Package weight
- 252 g
Packaging content
- Manual
- Yes
Operational conditions
- Storage temperature (T-T)
- 0 - 55 °C
- Operating temperature (T-T)
- -20 - 55 °C
- Operating relative humidity (H-H)
- 5 - 65%
Technical details
- Compliance certificates
- RoHS
Logistics data
- Products per master (outer) case
- 32 pc(s)
- Master (outer) case width
- 344 mm
- Master (outer) case length
- 322 mm
- Master (outer) case height
- 264 mm
- Harmonized System (HS) code
- 84733080
