StarTech.com 118-USBC-HDMI-VGADVI Drag to turn · 11 views
StarTech.comUSB Graphics Adapters

USB C Video Adapter, USB C to HDMI DVI VGA Adapter, Up to 4K 60Hz, Aluminum, Multiport Video

Part # 118-USBC-HDMI-VGADVIUPC 065030895583Warranty: 3 Years0.3 lb

  • USB C to HDMI DVI VGA Adapter supports HDMI 2.0b (4K60Hz/HDR) | VGA/DVI-I (1080p) | HDCP 2.2/1.4
  • For Laptops/Ultrabooks/Chromebooks with USB-C DP Alt-mode/Thunderbolt 3/4 from HP/Dell/Surface/Lenovo/MacBooks (Intel/M1 chip)
  • Portable durable aluminum housing for on the go use between office/home/shared spaces/business travel | Compatible with VGA/DVI screw locking cables
  • No drivers
  • Windows macOS Linux
  • Extended attached 12" cable for setup flexibility
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

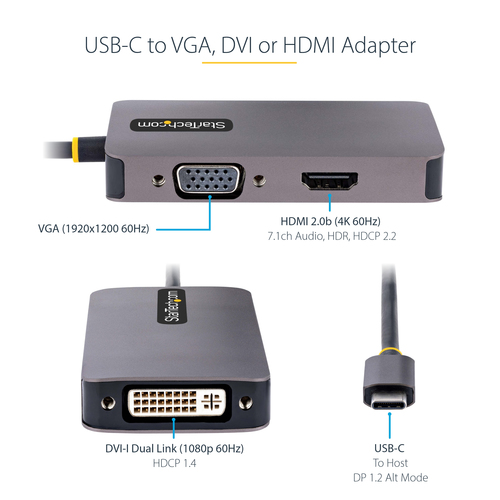

USB Type-C™ to VGA DVI or HDMI® Travel Adapter | 4K 60Hz | Aluminum

This USB-C™ multiport video adapter offers a durable and portable solution for connecting your USB Type-C device to a n HDMI, DVI, or VGA display.

01

Ultra HD 4K 60Hz Resolution

The HDMI 2.0b output supports up to 4K 60 Hz resolutions and HDR whereas VGA output supports up to 1920x1200 at 60 Hz, and the DVI-I output supports up to 1080p at 60 Hz. All the outputs offer compatibility with older displays supporting lower resolution. The adapter supports dual mirrored 1080p displays when using either VGA and HDMI or VGA and DVI-I monitor configurations.

02

Video Connectivity On The Go

Avoid the hassle of carrying different adapters with a USB Type-C Multiport Video Adapter. Connect a USB-C DisplayPort Alt-mode device to virtually any display. A durable aluminum enclosure helps the adapter withstand being carried in a travel bag between office, home, shared spaces, and during business travel.

03

Ease of Use

The USB Type-C Display Adapter is compatible with USB-C DisplayPort Alt-mode, Thunderbolt 3, Thunderbolt 4 Laptops, Ultrabooks, Chromebooks, and MacBooks. Plug and Play (PnP) capability allows you to quickly connect to devices running Windows, macOS, iPadOS, chromeOS, or Linux. The VGA and DVI outputs are compatible with screw locking cables ensuring a secure connection with displays and projectors. The 12 inch (30 cm) attached cable allows for flexibility in your setup and less strain on ports and connectors.

118-USBC-HDMI-VGADVI is backed for 3-years by StarTech.com, including free 24/5 multi-lingual technical assistance.

Note:

This adapter does not support MST or dual extended displays

Specifications

Performance

USB connector type
USB Type-C
USB connector gender
Male
USB connector form factor
Straight
DVI output
Yes
High Dynamic Range (HDR) supported
Yes
HDMI output
Yes
DisplayPort output
No
Number of displays supported
3
VGA (D-Sub) ports quantity
1
DVI-I ports quantity
1
VGA (D-Sub) output
Yes
HDMI version
2.0b
HDCP
Yes
HDCP version
2.2
Maximum resolution
3840 x 2160 pixels
Refresh rate at maximum resolution
60 Hz
Supported graphics resolutions
1920 x 1200 (WUXGA), 3840 x 2160
Audio output channels
7.1 channels
Chipset
ITE - IT6224FN

Design

Product colour
Grey
Integrated USB cable
Yes

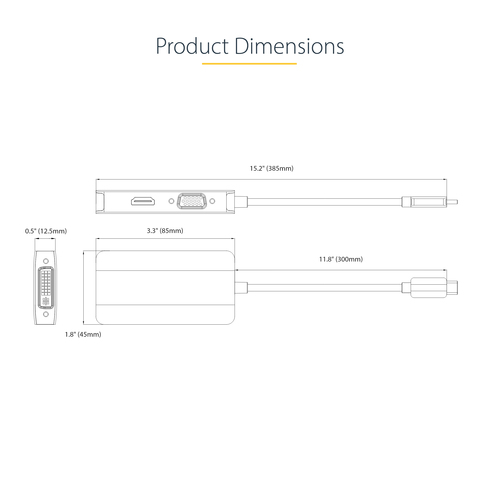

Weight & dimensions

Width
45 mm
Depth
85 mm
Height
14 mm
Weight
73 g
USB cable length
0.3 m

Packaging data

Package width
173 mm
Package depth
145 mm
Package height
33 mm
Package weight
137 g

Logistics data

Products per master (outer) case
60 pc(s)
Master (outer) case width
542 mm
Master (outer) case length
347 mm
Master (outer) case height
327 mm
Harmonized System (HS) code
84733020
