10-Port USB-C Charging Hub, 60W Per Port, 350W Total Power, Multiport Charger Block / Station, TAA Compliant
- Charge laptops/tablets/mobile devices with up to 60W per port
- shared across 350W total output

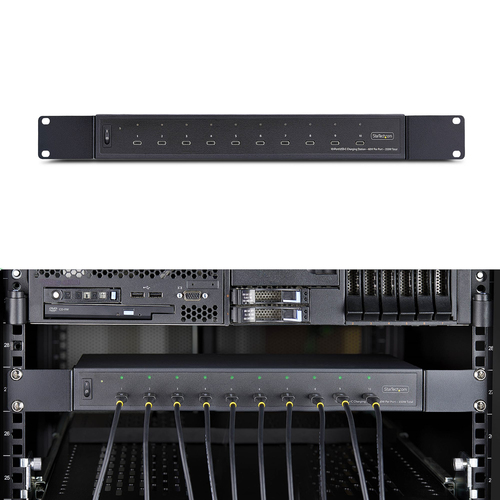

- USB-C Charger includes rack mounting kit for 19" server racks and rubber-gripped desktop feet for stable placement
- Stackable design allows multiple units to be layered
- Integrated bottom fan provides active airflow to prevent overheating
- 350W Charging Station detects and balances power draw across all ports to meet real-time device needs
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Simultaneously charge up to 10 USB-C devices with this 350W desktop or rackmount charging station
The 10-Port USB-C Charging Hub delivers fast, efficient charging for laptops, tablets, and mobile devices, making it ideal for offices, classrooms, and IT labs.
Smart Power Distribution
Each of the 10 USB-C ports provides up to 60W, with a total output of 350W that dynamically adjusts in real time to meet varying device needs. Its smart power allocation technology prioritizes active ports requiring higher output while reducing power to idle ports, and supports PPS (3.3-21V⎓3.0A) for safe, rapid USB-C charging.
Flexible Mounting & Scalable Design
Designed for flexibility, the hub includes rack-mounting ears for 19-inch server racks as well as rubber-gripped feet for secure desktop use. Its stackable design allows multiple units to be layered neatly, expanding charging capacity without adding clutter.
Active Cooling & Safety Compliance
A built-in fan ensures active cooling during continuous, high-load operation, while charging status LEDs on each port provide at a glance visual charging status. The charging hub is TUV SUD certified and compliant with USB-IF, FCC, and CE standards, and includes overcurrent and short-circuit protection.
Specifications
Performance
- Charger compatibility
- Universal
- Power source type
- AC
- USB Type-C ports quantity
- 10
- Wireless charging
- No
- Charger type
- Indoor
- Number of simultaneously connected devices (max)
- 10
- Programmable power supply (PPS)
- Yes
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery revision
- 3.0
- Noise level
- 35 dB
- Cooling fan
- Yes
- Fan diameter
- 5 cm
- Rotational speed
- 6700 RPM
- Mean time between failures (MTBF)
- 192000 h
Design
- Product colour
- Black
- Housing material
- Metal
- On/off switch
- Yes
- LED indicators
- Charging, Power
- Rack mounting
- Yes
- Rack capacity
- 1U
Power
- Input voltage
- 100 - 240 V
- Input current
- 10 A
- Maximum power
- 400 W
- Maximum output voltage
- 20 V
- Minimum output voltage
- 5 V
- Output current (5V)
- 3 A
- Output current (9V)
- 3 A
- Output current (12V)
- 3 A
- Output current (15V)
- 3 A
- Output current (20V)
- 3 A
Weight & dimensions
- Width
- 200 mm
- Depth
- 350 mm
- Height
- 44 mm
- Weight
- 2.5 kg
Packaging data
- Package width
- 258 mm
- Package depth
- 560 mm
- Package height
- 83 mm
- Package weight
- 3.7 kg
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Storage relative humidity (H-H)
- 0 - 95%

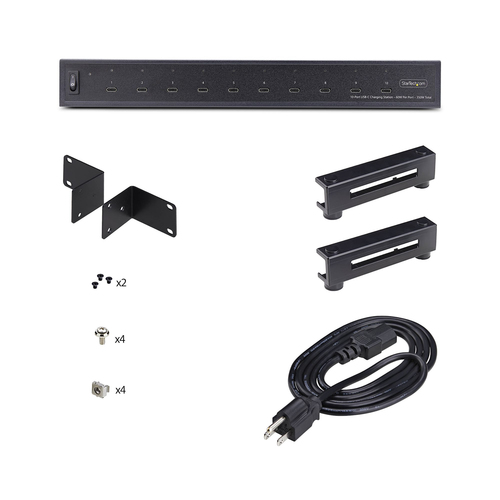

Packaging content
- Cables included
- AC
- Screws included
- Yes
- Number of screws
- 10
- Number of cage nuts
- 4
- Rack mount kit
- Yes
Logistics data
- Master (outer) case width
- 360 mm
- Master (outer) case length
- 575 mm
- Master (outer) case height
- 277 mm
- Products per master (outer) case
- 4 pc(s)
