USB-C to Dual-HDMI Adapter - USB-C or A to 2x HDMI - 4K 60Hz - 100W Power Delivery Pass-Through

Part # 109B-USBC-HDMIUPC 065030894579Warranty: 3 Years0.45 lb

USB-C to Dual-Monitor Adapter adds up to 2x 4K 60Hz HDMI monitors to a computer using a single USB-C/USB-A port
100W PD Pass-through with up to 90W host charging
Enables dual extended displays on base Apple M-Series MacBooks
Requires driver for macOS

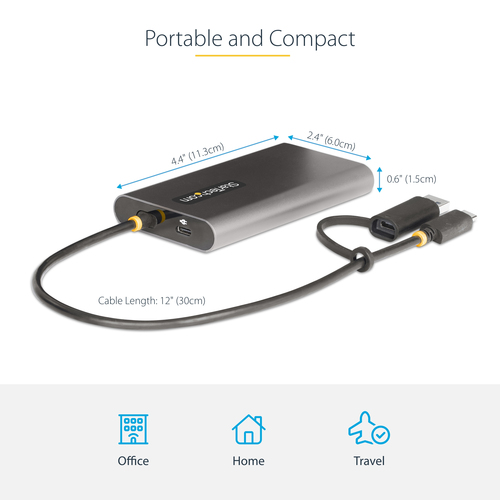

Video adapter features a 1ft (30cm) built-in cable to reduce port/connector strain
DisplayLink certified universal adapter works with Windows/macOS/Ubuntu/ChromeOS

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Dual 4K 60Hz HDMI Output | Attached USB-C to USB-A Dongle

Connect two 4K 60Hz HDMI displays to the USB Type-C or Type-A port of a laptop/desktop computer, using this USB-C to Dual-HDMI Adapter.

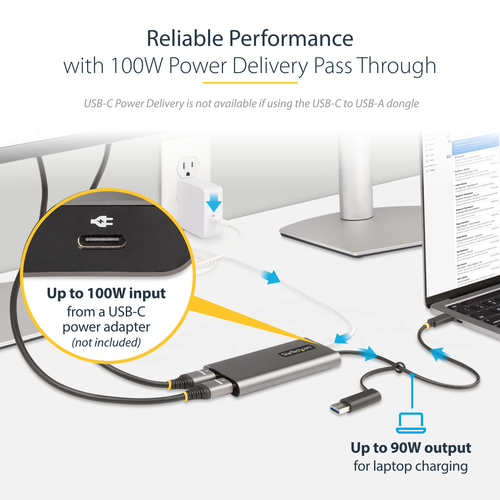

Power Delivery Pass-Through

The USB video adapter features USB Power Delivery (PD) 3.0 pass-through (up to 100W), enabling powering and charging of a laptop when connected to a USB-C power adapter. The adapter runs on USB bus-power when no USB-C power adapter is connected. PD 3.0 features Fast Role Swap (FRS) that prevents USB data disruption when USB-C power is disconnected and the adapter switches to USB bus power.

DisplayLink Certified 4K 60Hz Resolution

The USB multi-monitor adapter is DisplayLink Certified and supports high-performance dual-monitor 4K 60Hz video resolutions with an integrated DisplayLink DL-6950 Controller.

Comprehensive Compatibility

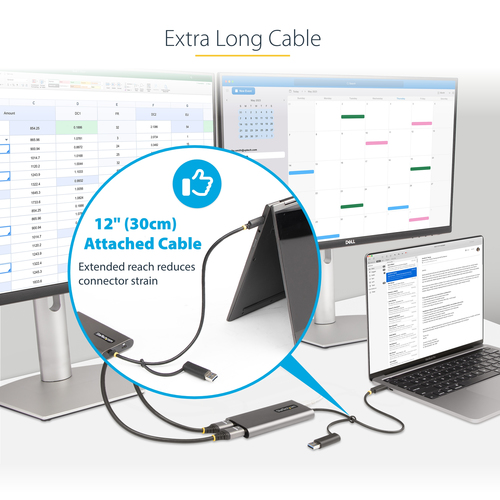

The USB video adapter is compatible with Windows, macOS, Ubuntu, and Chrome OS. The integrated USB-C to USB-A adapter enables the flexibility of connecting to any host that is running a compatible operating system. The built-in 1ft (30cm) USB-C/A cable is ideal for on the go use. The length of the cable and the strain reliefs reduce connector/port strain.

This product is backed for 3-years by StarTech.com, including free 24/5 multi-lingual technical assistance.

Specifications

Performance

USB connector type: USB Type-C
USB connector gender: Male
USB connector form factor: Straight
USB version: 3.2 Gen 1 (3.1 Gen 1)
DVI output: No
HDMI output: Yes
DisplayPort output: No
Number of displays supported: 2
HDMI ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Maximum resolution: 3840 x 2160 pixels
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
Audio output channels: 5.1 channels
Chipset: DisplayLink - DL6950
USB Power Delivery (USB PD): Yes

Design

Product colour: Grey
Housing material: Aluminium, Plastic
Integrated USB cable: Yes

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported: Ubuntu 18.04 LTS, Ubuntu 20.04 LTS
Other operating systems supported: ChromeOS
