Home/Catalogue/Samsung/LH85SMHPBGCXZA
Drag to turn · 7 views
SM85HX-P Digital signage flat panel 2.16 m (85") LCD Wi-Fi 500 cd/m² 4K Ultra HD Black Tizen 7.0 24/7
- Indoor Digital signage flat panel Black
- 2.16 m (85") 3840 x 2160 pixels LCD 500 cd/m²
- 10 ms
- Ethernet LAN Wi-Fi
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Deliver immersive realism through display innovation
Virtual 3D Display
Powered by Samsung’s patented 3D plate technology, this display goes beyond your 2D content-bringing it to life in 3D, face-to-face with your audience. Vivid details feel almost within reach, making every moment unforgettable.
Turn images into immersive spatial videos instantly with AI
AI Studio
AI Studio simplifies 3D video creation; just upload images and write a prompt to generate video content. Embedded within Samsung VXT, this AI-powered tool converts images into dynamic, 3D style visuals designed for Spatial Signage, helping businesses create engaging content quickly while reducing production complexity.
Bold visuals, effortless fit

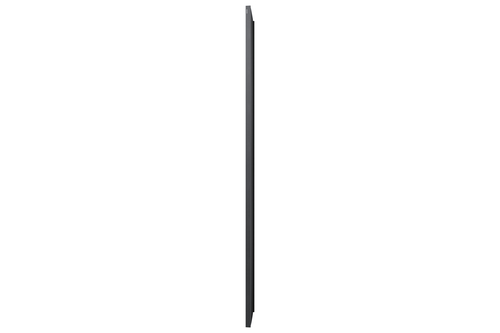

UltraThin Design
Delivering 3D visuals in a 52mm slim profile, this display offers the same installation ease as standard signage—lightweight, space-efficient, and ready for various environment.
View lifelike shades of color in powerful 4K
Quantum Processor
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor, elevates lower-resolution video to UHD, providing a professional picture quality.
Maintain visibility under challenging lighting
Anti-glare
Designed with an Anti-glare panel and optimized haze level, the display reduces reflections from indoor lighting and sunlight. In bright retail spaces or open offices, your content stays clear and easy to see.
Change the way your display is managed
Samsung VXT
The cloud-based Samsung VXT brings together content management and remote device management capabilities. Remotely manage hardware settings and troubleshoot issues while creating and deploying content effortlessly with no previous training needed.
Empower your business with smart control
SmartThings Pro
SmartThings Pro brings IoT connectivity into Samsung's digital signage, enabling seamless integration with other smart devices across business environments. From lighting and appliances to building systems, the signage becomes part of a connected ecosystem—controlled, monitored, and automated through a single platform.
Specifications
Display
- Panel type
- VA
- Display diagonal
- 2.16 m (85")
- Display technology
- LCD
- Display resolution
- 3840 x 2160 pixels
- Display brightness
- 500 cd/m²
- HD type
- 4K Ultra HD
- Touchscreen
- No
- Native aspect ratio
- 16:9
- Response time
- 10 ms
- Contrast ratio (typical)
- 4000:1
- Dynamic contrast ratio marketing name
- Mega Contrast
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Pixel pitch
- 0.487 x 0.487 mm
- Horizontal scan range
- 30 - 81 kHz
- Vertical scan range
- 48 - 75 Hz
- High Dynamic Range (HDR) supported
- Yes
- Haze rate
- 25%
- Pixel frequency (max)
- 594 MHz

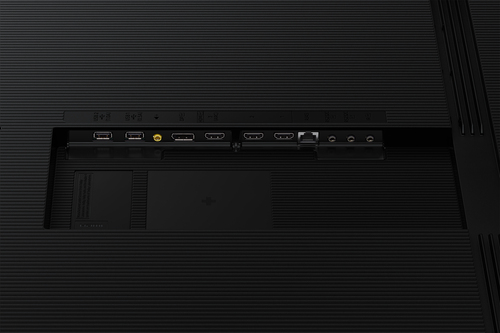

Ports & interfaces
- HDMI ports quantity
- 3
- HDMI version
- 2.0
- DVI port
- No
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.2
- USB port
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- RS-232 interface
- Yes
- Infrared data port
- Yes
Design
- Product design
- Digital signage flat panel
- Placement supported
- Indoor
- Product colour
- Black
- VESA mounting
- Yes
- Panel mounting interface
- 400 x 600 mm
- Bezel width (bottom)
- 2.1 cm
- Bezel width (side)
- 2.1 cm
- Bezel width (top)
- 2.1 cm
Performance
- Purpose
- Commercial
- Operating hours (hours/days)
- 24/7
- HDCP
- Yes
- HDCP version
- 2.2
Power
- Power consumption (typical)
- 440 W
- Power consumption (standby)
- 0.5 W
- Energy efficiency class (SDR)
- G
- Energy efficiency class (HDR)
- G
- Energy consumption (SDR) per 1000 hours
- 340 kWh
- Energy consumption (HDR) per 1000 hours
- 447 kWh
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
Computer system
- Computer system
- Yes
- Internal storage capacity
- 16 GB
- Operating system installed
- Tizen 7.0
Weight & dimensions
- Display width
- 1101.2 mm
- Display depth
- 52 mm
- Display height
- 1920.2 mm
- Display weight
- 49 kg
Packaging data
- Package width
- 2093 mm
- Package depth
- 220 mm
- Package height
- 1234 mm
- Package weight
- 61.9 kg
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 10 - 80%
Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
Other features
- Audio output
- 1
- Bluetooth
- Yes
Downloads
