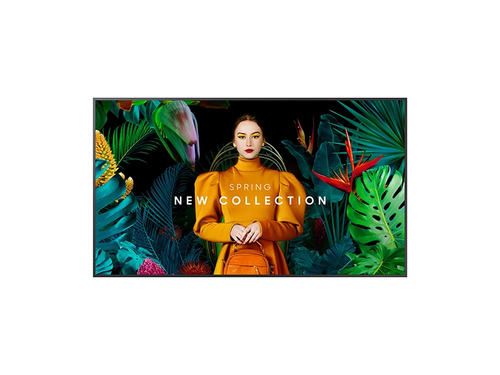

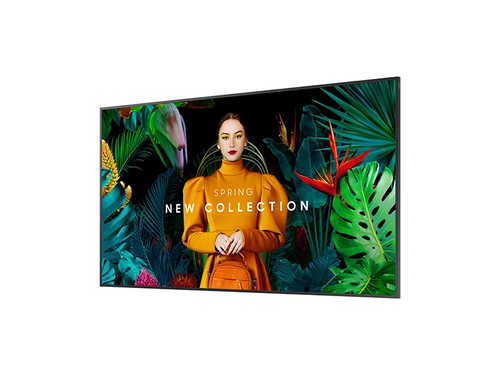

QMC Series 85 UHD, 500nit, Non glare, IP5x rated, 24/7, 2nd Gen B2B Design, Tizen 7.0, MagicInfo
- QM85C - Dynamic Crystal Color UHD Digital Signage for Business
- QMC, slimmest display in Samsung's UHD Signage, ultra-slim 28.5mm depth optimizes space
- Dynamic Crystal Color, over one billion shades, delivers an immersive viewing experience
- Industry-leading technology, powered by Quantum Processor Lite 4K, enhances content for clarity and consistency
- SmartView+ enables wireless screen sharing makes collaboration easy and functional
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Maximum impact in minimum space
Ultra Slim Depth

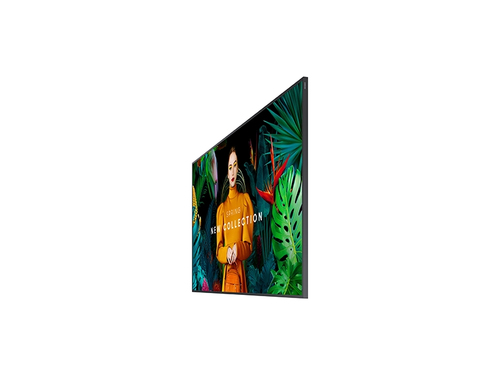

The QMC's unparalleled ultra-slim 28.5 mm depth makes it the thinnest option in Samsung’s UHD series. It is compatible with a Slim Fit Wall Mount, which allows you to install it neatly and easily in any location. QMC optimizes space with its sleek design that blends seamlessly into your business environment.
Slim design. Stunning performance.
Elegant UHD Signage - QMC Series
Introducing QMC, the slimmest display in the Samsung UHD Signage. It brings elegance to your business display while maximizing space. Its enhanced internal solutions and intuitive home screen UX make it easy to use. Businesses in various verticals can achieve growth with QMC’s efficiency and design innovation.
Clean visuals in landscape or portrait mode
Uniform Bezels
The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The uniform design allows for visual consistency when the display is adjusted to portrait mode.
Secure and even mounting
Centered VESA Holes

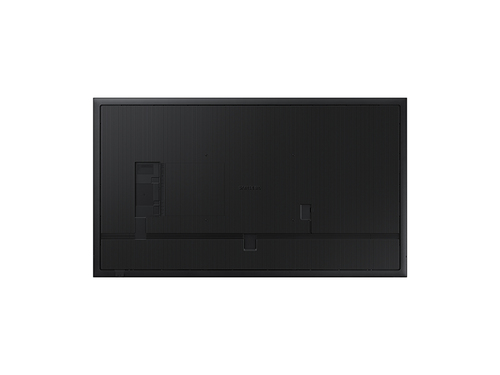

The central positioning of the VESA holes on the back of the display enable the weight to be evenly distributed for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode, while avoiding unintentional tilting.
Lifelike color for a pure, immersive viewing experience
Dynamic Crystal Color
Every picture is more immersive with one billion shades of color. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety.
View lifelike shades of color in powerful 4K
Quantum Processor Lite 4K
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.
Ensure critical information is always visible
Non-glare
QMC displays feature reliable, non-glare panels that provide better visibility from all angles, any time of day. The non-glare display enables businesses to deliver accurate information in crucial locations, such as airports and train stations.
Connect with convenience
Home UI
QMC boasts greater usability with an upgraded home screen UI. For the ultimate convenience, popular categories such as Favorites, Sources, and Settings are displayed on the home screen, all available in one place. The Favorites folder grants users quick, easy access to frequently used features in a single click.
High-speed collaboration between screens, all wire-free.
Smartview+
SmartView+ enables wireless screen sharing without cable connections, ensuring easy collaboration. Users can enable the screen sharing function at the start of the meeting, allowing administrators to switch which screens are shared with no wires necessary.
Simplified calibration between screens with mobile app
Smart Calibration
Guaranteed brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures accuracy for every display, with precise calibration that showcases logos and other collateral in the exact brand colors, as required.
Specifications
Display
- Panel type
- VA
- Display diagonal
- 2.16 m (85")
- Display technology
- LCD
- Display resolution
- 3840 x 2160 pixels
- Display brightness
- 500 cd/m²
- HD type
- 4K Ultra HD
- Touchscreen
- No
- Native aspect ratio
- 16:9
- Response time
- 8 ms
- Contrast ratio (typical)
- 4000:1
- Dynamic contrast ratio marketing name
- Mega Contrast
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Display number of colours
- 1 billion colours
- Pixel pitch
- 0.487 x 0.487 mm
- Number of displays
- 1
- Colour saturation
- 72%
- Horizontal scan range
- 30 - 81 kHz
- Vertical scan range
- 48 - 75 Hz
- Native refresh rate
- 60 Hz
- Haze rate
- 25%

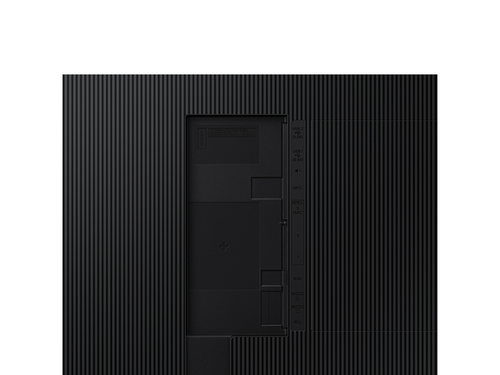

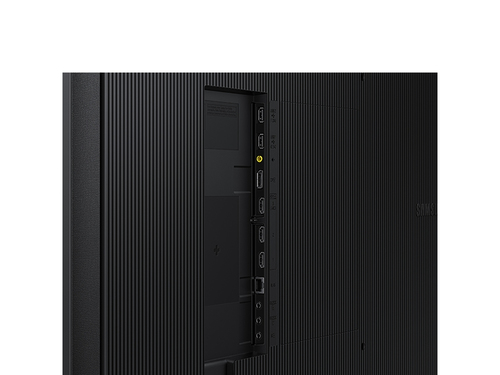

Ports & interfaces
- HDMI ports quantity
- 3
- HDMI version
- 2.0
- HDMI input ports quantity
- 3
- DVI port
- No
- DisplayPorts quantity
- 1
- DisplayPorts in
- 1
- USB port
- Yes
- USB ports quantity
- 2
- USB version
- 2.0
- Ethernet LAN (RJ-45) ports
- 1
- Audio (L/R) out
- 1
- RS-232 interface
- Yes
- Infrared data port
- Yes
Audio
- Built-in speaker(s)
- Yes
- Number of built-in speakers
- 2
- RMS rated power
- 10 W
Design
- Product design
- Digital signage flat panel
- Placement supported
- Indoor
- Orientation
- Horizontal/Vertical
- VESA mounting
- Yes
- Panel mounting interface
- 600 x 400 mm
- Bezel width (bottom)
- 1.39 cm
- Bezel width (side)
- 1.39 cm
- Bezel width (top)
- 1.39 cm
- Anti-glare screen
- Yes
- Mounting type
- Wall
Performance
- Purpose
- Commercial
- Multi-display supported
- Yes
- Multicast support
- Yes
- Operating hours (hours/days)
- 24/7
- HDCP
- Yes
- International Protection (IP) code
- IP5X
- HDCP version
- 2.2
Power
- Power consumption (typical)
- 330 W
- Power consumption (standby)
- 0.5 W
- Power consumption (sleep)
- 0.5 W
- Energy efficiency class (SDR)
- G
- Energy efficiency class (HDR)
- Not available
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 / 60 Hz
Computer system
- Computer system
- Yes
- Computer system type
- System on Chip (SoC)
- Built-in processor
- Yes
- Processor frequency
- 1.6 GHz
- Internal storage capacity
- 16 GB
- Operating system installed
- Tizen
- Operating system version
- 7.0
Weight & dimensions
- Display width
- 1904.3 mm
- Display depth
- 28.5 mm
- Display height
- 1085.3 mm
- Display weight
- 41.4 kg
Packaging data
- Package weight
- 53.4 kg
Packaging content
- Remote control included
- Yes
- Batteries included
- Yes
- Cables included
- RS-232
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 10 - 80%
Certificates
- Certification
- EMC - Class B, Safety - 60950-1, 62368-1
Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
Features
- Wall mountable
- Yes
Technical details
- Special features
- Signage New Home Workspace (Microsoft371/VMWare/RDP), Custom Home, Auto Source, Switching and Recovery, Dicom Simulation Mode, Director Mode, SmartView+, Upgradable Web-Engine, Tizen Enterprise Platform, Video Conference Solution, Smart Calibration
- Sustainability certificates
- ENERGY STAR, EPEAT Bronze
Other features
- Power supply type
- Internal
