Home/Catalogue/Samsung/LH46OHDEBGBXZA
Drag to turn · 11 views
OHDX 116.8 cm (46") Wi-Fi 3500 cd/m² Black Tizen 24/7
- Verified by UL Solutions Outdoor Visibility
- Heat dissipation structure
- 2nd Glass Installable Structure
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Exceptional usability, stunning vistuals in outdoors
Samsung OHDX series is built for tough environments, allowing you to captivate your audience daily by effectively delivering your business message beyond the storefront. Even in varying weather, the OHDX ensures your brand presence stays powerful and memorable with a dynamic customer experience.
Maintain optimal temperature in the challenging outdoors

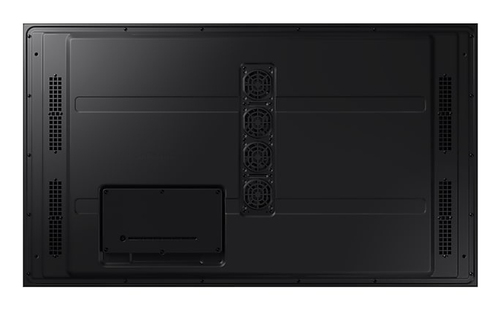

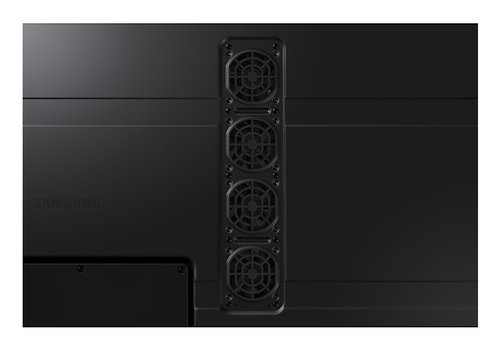

Heat dissipation structure
Featuring an advanced heat dissipation system for air circulation, the OHDX series' design will bring effortless performance in a hot summer's day. The display's effective cooling measures help ensure stable performance in tough environments.
Second glass installation comptability
2nd Glass Installable Structure
Get more protection for the OHDX with an optional compatible protective glass addition. Featuring an enhanced heat dissipation structure, the OHDX will deliver performance even when using the protective glass add-on, if desired.
Designed for all-weather conditions
IP56
With certified IP56-rated protection, OHDX series delivers a dust resistant and water resistant design to protect the display. This helps deliver dependable operation in a variety of outdoor conditions for consistent performance.
Robust screens
IK10
The OHDX series is rated IK10 for additional peace of mind.
Minimum space with maximum outdoor impact
Slim depth
Composed of a single display with a light and slim design, the OHDX series can be easily customized to suit various external environments by eliminating the need for a separate casing.
Empower your business with smart control
SmartThings Pro
Samsung SmartThings now extends beyond the home, integrating into business environments. SmartThings Pro connectivity enhances convenience, safety, and energy tracking across various business settings, from small personal shops to large companies and hotels.
Change the way to manage your display
Samsung VXT
The cloud-based Samsung VXT brings together content management and remote device management capabilities, allowing you to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.
Specifications
Display
- Panel type
- VA
- Display diagonal
- 116.8 cm (46")
- Display resolution
- 1920 x 1080 pixels
- Display brightness
- 3500 cd/m²
- Touchscreen
- No
- Native aspect ratio
- 16:9
- Response time
- 6 ms
- Contrast ratio (typical)
- 6000:1
- Dynamic contrast ratio marketing name
- Mega Contrast
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Pixel pitch
- 0.53 x 0.53 mm
- Haze rate
- 0%
- Pixel frequency (max)
- 594 MHz
- Colour gamut
- 72%

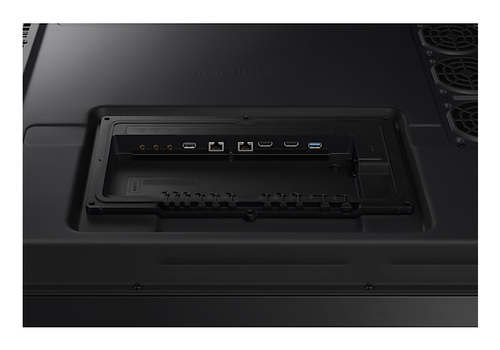

Ports & interfaces
- HDMI ports quantity
- 2
- HDMI version
- 2.0
- DVI port
- No
- USB port
- Yes
- USB ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 2
- RS-232 interface
- Yes
- HDBaseT input ports
- 1
Audio
- Built-in speaker(s)
- No
Design
- Placement supported
- Outdoor
- Product colour
- Black
- Screen shape
- Flat
- VESA mounting
- Yes
- Panel mounting interface
- 995 x 500 mm
- Bezel width (bottom)
- 2.49 cm
- Bezel width (side)
- 2.49 cm
- Bezel width (top)
- 2.49 cm
- Bezel colour
- Slate Black
Performance
- Operating hours (hours/days)
- 24/7
- HDCP
- Yes
- International Protection (IP) code
- IP56
- HDCP version
- 2.2
Power
- Power consumption (typical)
- 480 W
- Power consumption (standby)
- 0.5 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
Computer system
- Computer system
- No
- Built-in processor
- No
- Operating system installed
- Tizen
- Operating system version
- 8.0
Weight & dimensions
- Display width
- 1069 mm
- Display depth
- 69 mm
- Display height
- 623.6 mm
- Display weight
- 28.2 kg
Packaging data
- Package width
- 1190 mm
- Package depth
- 186 mm
- Package height
- 735 mm
- Package weight
- 33.7 kg
Operational conditions
- Operating temperature (T-T)
- -30 - 50 °C
- Operating relative humidity (H-H)
- 10 - 80%
Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
Technical details
- Audio out (mini jack)
- 1
- Compliance certificates
- Electromagnetic Compatibility (EMC)
Other features
- Display brightness (peak)
- 4000 cd/m²
- Bluetooth
- Yes
- Flash memory
- 8000 MB
- RS-232 input ports
- 1
- RS-232 output ports
- 1
