Samsung LH24QBCEBGCXZA Drag to turn · 8 views
SamsungSignage Displays

LH24QBCEBGC Digital signage flat panel 61 cm (24") LCD Wi-Fi 250 cd/m² Full HD Black Tizen 7.0

Part # LH24QBCEBGCXZAUPC 887276790473Warranty: 1 Year8.6 lb

  • Compact design
  • Home UI
  • Center IR
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Expand commercial space with compact display

Get the most out of every space with Samsung QB24C small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, while also allowing for a reliable performance for any business use.

Hold sizable opportunities in small spaces

01

Compact Design

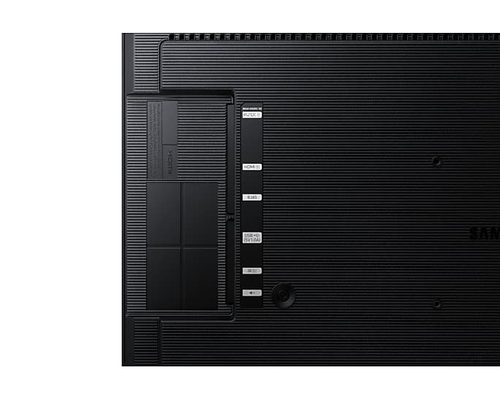

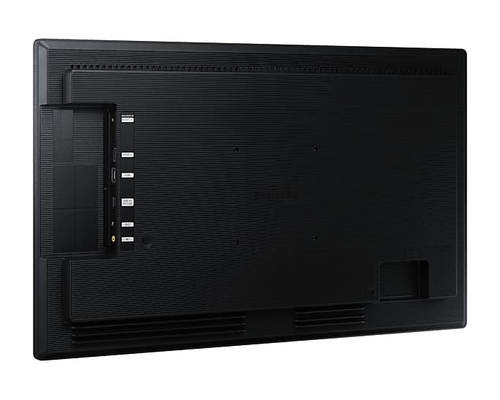

The compact design of the QB24C allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.

Connect with convenience

02

Home UI

QB24C boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Convenient, clean display control

03

Center IR

With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance

04

IP5X / EMC Class B

QB24C is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.

Change the way to manage your display

05

Samsung VXT

Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content.

Specifications

Display

Panel type
ADS
Display diagonal
61 cm (24")
Display technology
LCD
Display resolution
1920 x 1080 pixels
Display brightness
250 cd/m²
HD type
Full HD
Touchscreen
No
Native aspect ratio
16:9
Response time
14 ms
Contrast ratio (typical)
1000:1
Dynamic contrast ratio marketing name
Mega Contrast
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.2745 x 0.2745 mm
Horizontal scan range
56 - 84.5 kHz
Vertical scan range
48 - 75 Hz
Haze rate
25%

Ports & interfaces

HDMI ports quantity
1
HDMI version
1.4
USB port
Yes
USB ports quantity
1
Ethernet LAN (RJ-45) ports
1
RS-232 interface
Yes
Infrared data port
Yes
Remote (IR) input
1
PC Audio out
Yes

Design

Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Product colour
Black
Screen shape
Flat
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Bezel width (bottom)
1.79 cm
Bezel width (side)
9.4 mm
Bezel width (top)
1.79 cm
Mounting type
Desk/Wall

Performance

Purpose
Commercial
HDCP
Yes
HDCP version
2.2

Power

Power consumption (typical)
38.5 W
Power consumption (sleep)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz

Computer system

Internal storage capacity
8 GB
Operating system installed
Tizen 7.0

Weight & dimensions

Display width
547.9 mm
Display depth
31.8 mm
Display height
334.4 mm
Display weight
3 kg

Packaging data

Package width
620 mm
Package depth
122 mm
Package height
419 mm
Package weight
4.1 kg

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%

Network

Ethernet LAN
Yes
Wi-Fi
Yes

Technical details

Compliance certificates
Electromagnetic Compatibility (EMC)

Other features

Bluetooth
Yes
Safety
60950-1, 62368-1
