LenovoLaptops

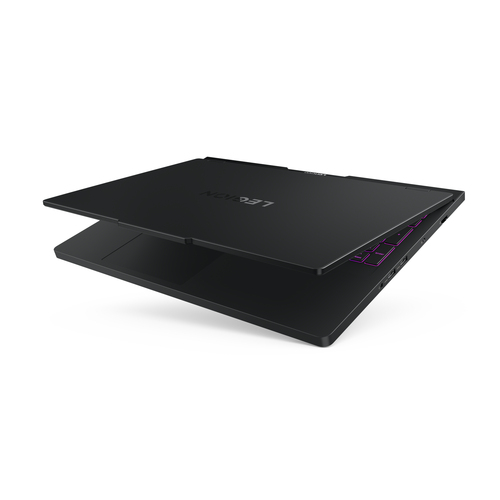

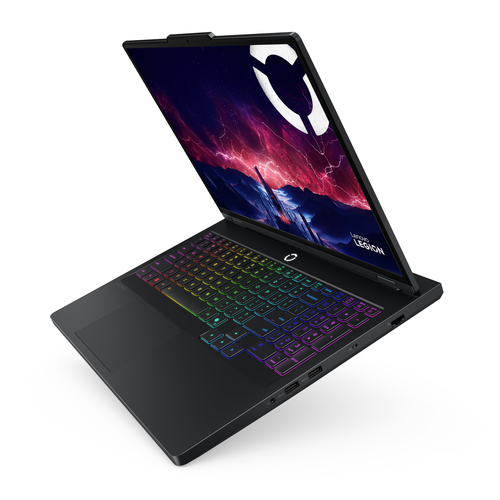

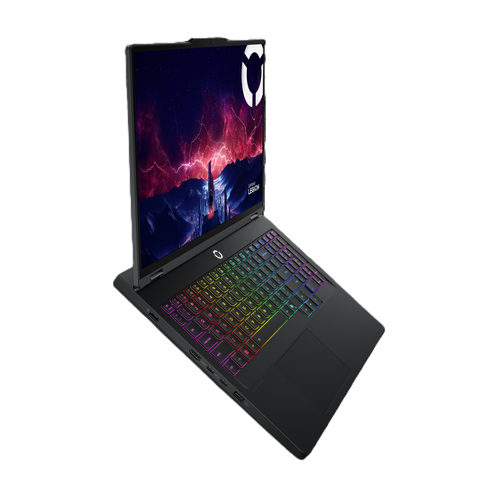

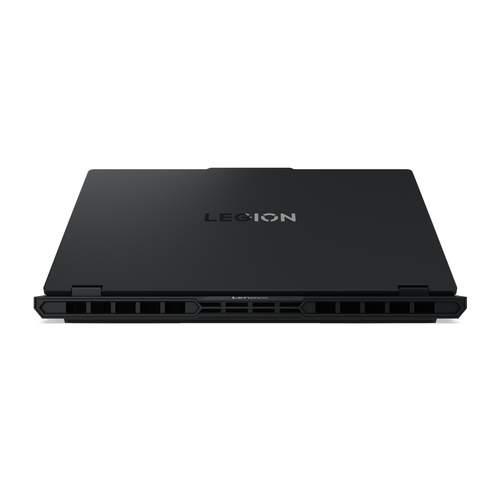

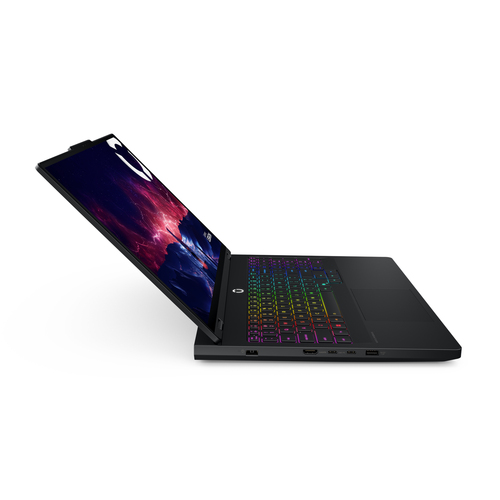

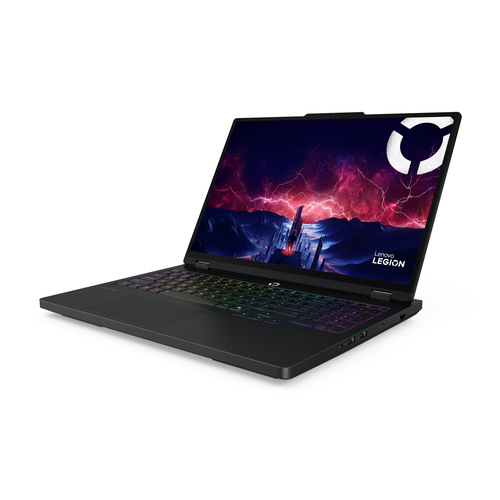

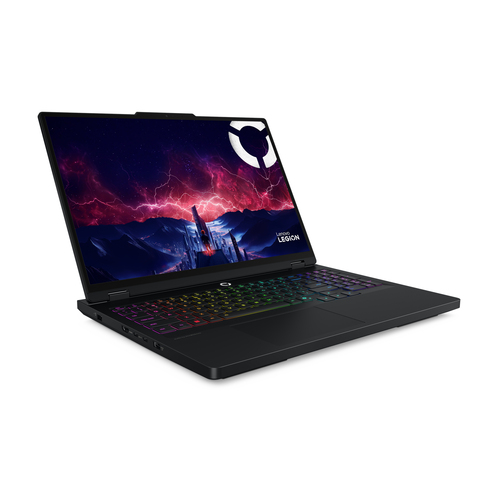

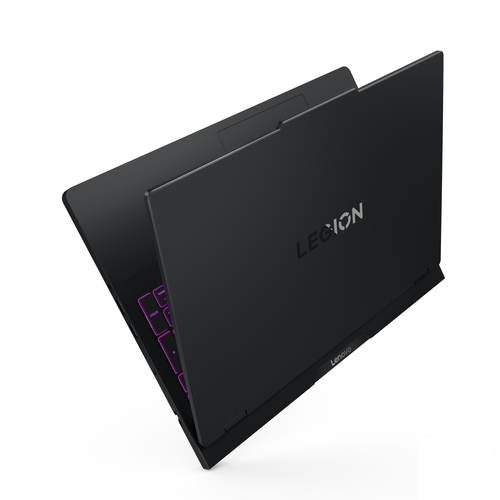

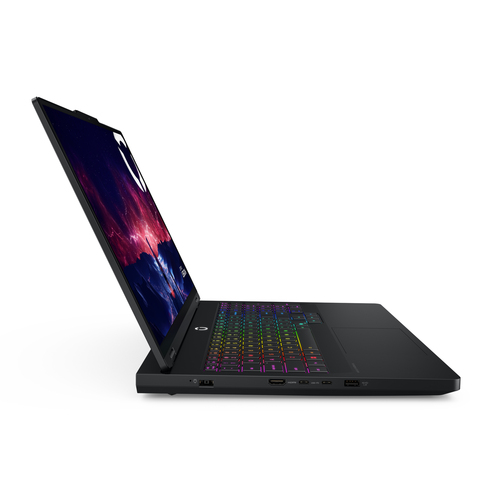

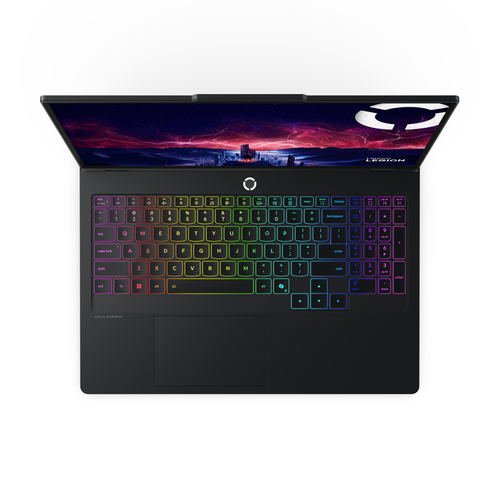

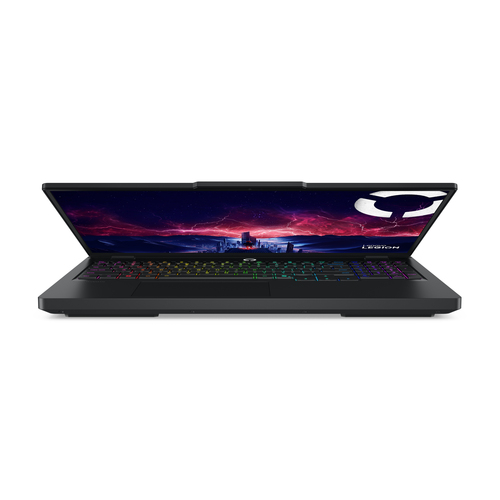

Legion Pro 5 16ADR10 AMD Ryzen™ 9 8945HX Laptop 40.6 cm (16") WQXGA 16 GB DDR5-SDRAM 1 TB SSD
- AMD Ryzen 9 8945HX (16C/32T, 2.5/5.4GHz, 16MB L2/64MB L3)
- 16" WQXGA (2560x1600) IPS 500nits 100% DCI-P3 240Hz Dolby Vision DisplayHDR 400 G-SYNC Free-Sync Premium Low Blue Light High Gaming Performance
- 1x 16GB SODIMM DDR5-5200
- 1TB SSD M.2 2242 PCIe 4.0x4 NVMe
- NVIDIA GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS
- Windows 11 Home
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Lenovo Legion Pro 5 16ADR10 83LT000SCC 16 Gaming Notebook WQXGA AMD Ryzen 9 8945HX 16 GB 1 TB SSD English US Keyboard Eclipse Black AMD Chip 2560 x 1600 Windows 11 Home NVIDIA GeForce RTX 5060 with 8 GB Front Camera/Webcam IEEE 802.11be Wireless LAN Standard French
Specifications
Design
- Colour name
- Eclipse Black
- Product type
- Laptop
- Product colour
- Black
- Form factor
- Clamshell
- Housing material
- Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
- Display back cover material
- Aluminium
Display
- Display diagonal
- 40.6 cm (16")
- Display resolution
- 2560 x 1600 pixels
- Touchscreen
- No
- HD type
- WQXGA
- Panel type
- IPS
- LED backlight
- Yes
- Native aspect ratio
- 16:10
- Anti-glare screen
- Yes
- Display brightness
- 500 cd/m²
- RGB colour space
- DCI-P3
- Colour gamut
- 100%
- Maximum refresh rate
- 240 Hz
- High Dynamic Range (HDR) supported
- Yes
- High Dynamic Range (HDR) technology
- Dolby Vision, DisplayHDR 400
Processor
- Processor manufacturer
- AMD
- Processor family
- AMD Ryzen™ 9
- Processor model
- 8945HX
- Processor cores
- 16
- Processor threads
- 32
- Processor boost frequency
- 5.4 GHz
- Processor frequency
- 2.5 GHz
Memory
- Internal memory
- 16 GB
- Internal memory type
- DDR5-SDRAM
- Memory clock speed
- 5200 MHz
- Memory form factor
- SO-DIMM
- Memory layout (slots x size)
- 1 x 16 GB
- Memory slots
- 2x SO-DIMM
- Maximum internal memory
- 32 GB
Storage
- Total storage capacity
- 1 TB
- Storage media
- SSD
- Total SSDs capacity
- 1 TB
- Number of SSDs installed
- 1
- SSD capacity
- 1 TB
- SSD interface
- PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
- Optical drive type
- No
Graphics
- Discrete graphics card model
- NVIDIA GeForce RTX 5060
- Discrete graphics card memory
- 8 GB
- Discrete graphics memory type
- GDDR7
- Discrete graphics card
- Yes
Audio
- Audio chip
- Realtek ALC3306
- Number of built-in speakers
- 2
- Speaker power
- 2 W
- Built-in microphone
- Yes
- Number of microphones
- 2
Camera
- Front camera
- Yes
- Front camera resolution (numeric)
- 5 MP
- Privacy camera
- Yes
- Privacy type
- Privacy shutter
Network
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- Mobile network connection
- No
- Antenna type
- 2x2
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 100,1000 Mbit/s
- Bluetooth
- Yes
- Bluetooth version
- 5.4
- WWAN
- Not installed
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Combo headphone/mic port
- Yes
- USB Sleep-and-Charge
- Yes
Performance
- Motherboard chipset
- AMD SoC
Keyboard
- Pointing device
- Touchpad
- Numeric keypad
- Yes
- Keyboard backlit
- Yes
- Keyboard backlit colour
- RGB
- Keyboard backlit zone
- 24-zone RGB
Software
- Operating system language
- English
- Trial software
- Office
- Operating system installed
- Windows 11 Home
Battery
- Battery capacity
- 80 Wh
Power
- AC adapter power
- 245 W
- USB Type-C charging port
- Yes
- USB Type-C required charging power (min)
- 65 W
- USB Type-C required charging power (max)
- 100 W
- USB Power Delivery (USB PD)
- Yes
Security
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
Certificates
- Certification
- RoHS
Weight & dimensions
- Width
- 364.4 mm
- Depth
- 268.1 mm
- Height (front)
- 2.17 cm
- Height (rear)
- 2.6 cm
- Weight
- 2.4 kg
Packaging content
- AC adapter included
- Yes
