Home/Catalogue/Lenovo/82WQ002LUS
Drag to turn · 7 views
LenovoLaptops

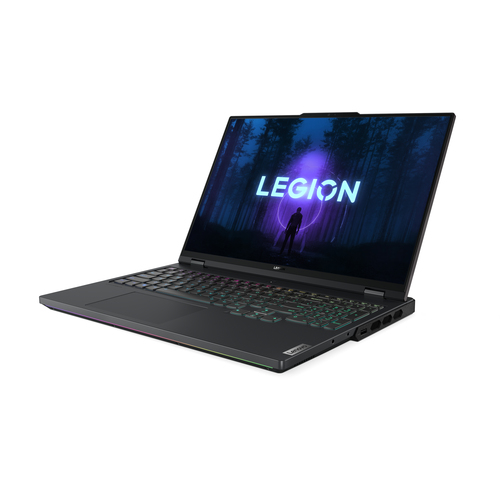

Legion Pro 7 16IRX8H Intel® Core™ i9 i9-13900HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB
- Windows 11 Pro 64-bit
- Intel Core i9-13900HX (36MB Cache)
- 40.6 cm (16") WQXGA 2560 x 1600 IPS, NVIDIA GeForce RTX 4080 (12GB GDDR6)
- 32GB (5600MHz) DDR5-SDRAM (2 x 16) & 1000GB SSD
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Lenovo Legion Pro 7 16IRX8H, Intel Core i913900HX Ecores up to 3.90 GHz, 16 2560 x 1600 NonTouch, Windows 11 Pro 64, 32.0GB, 1x1TB SSD M.2 2280 PCIe Gen4 TLC, Onyx Grey, NVIDIA GeForce RTX 4080 12GB, BT 5.1 or above, WLAN 2x2AX 6E, 1080P FHD, 4 Cell LiPol 99.9Wh, 3Y Legion Sup
Specifications
Design
- Colour name
- Onyx grey
- Product type
- Laptop
- Product colour
- Grey
- Form factor
- Clamshell
- Housing material
- Aluminium
- Market positioning
- Gaming
Display
- Display diagonal
- 40.6 cm (16")
- Display resolution
- 2560 x 1600 pixels
- Touchscreen
- No
- HD type
- WQXGA
- Panel type
- IPS
- LED backlight
- Yes
- Native aspect ratio
- 16:10
- Anti-glare screen
- Yes
- Display brightness
- 500 cd/m²
- RGB colour space
- sRGB
- Colour gamut
- 100%
- Maximum refresh rate
- 240 Hz
- Contrast ratio (typical)
- 1200:1
- High Dynamic Range (HDR) supported
- Yes
- High Dynamic Range (HDR) technology
- DisplayHDR 400, Dolby Vision
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i9
- Processor generation
- 13th gen Intel® Core™ i9
- Processor model
- i9-13900HX
- Processor cores
- 24
- Processor boost frequency
- 5.4 GHz
- Efficient-core boost frequency
- 3.9 GHz
- Processor cache
- 36 MB
- Processor cache type
- Smart Cache
- Bus type
- DMI4
- Configurable TDP-down
- 45 W
Memory
- Internal memory
- 32 GB
- Internal memory type
- DDR5-SDRAM
- Memory clock speed
- 5600 MHz
- Memory form factor
- SO-DIMM
- Memory layout (slots x size)
- 2 x 16 GB
- Memory slots
- 2x SO-DIMM
- Maximum internal memory
- 32 GB
- Memory channels
- Dual-channel
Storage
- Total storage capacity
- 1 TB
- Storage media
- SSD
- Total SSDs capacity
- 1 TB
- Number of SSDs installed
- 1
- SSD capacity
- 1 TB
- SSD interface
- PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
- Optical drive type
- No
- Card reader integrated
- No
Graphics
- Discrete GPU manufacturer
- NVIDIA
- Discrete graphics card model
- NVIDIA GeForce RTX 4080
- Discrete graphics card memory
- 12 GB
- Discrete graphics memory type
- GDDR6
- On-board graphics card
- Yes
- On-board GPU manufacturer
- Intel
- Discrete graphics card
- Yes
- On-board graphics card model
- Intel® UHD Graphics
Audio
- Audio chip
- Realtek ALC3306
- Audio system
- Nahimic Audio
- Number of built-in speakers
- 2
- Speakers manufacturer
- Harman Kardon
- Speaker power
- 2 W
- Built-in microphone
- Yes
- Number of microphones
- 2
Camera
- Front camera
- Yes
- Front camera resolution
- 1920 x 1080 pixels
- Front camera HD type
- Full HD
- Privacy camera
- Yes
Network
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- Mobile network connection
- No
- Antenna type
- 2x2
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 100,1000 Mbit/s
- Bluetooth
- Yes
- Bluetooth version
- 5.1
- WWAN
- Not installed
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Thunderbolt 4 ports quantity
- 1
- Intel® Thunderbolt 4
- Yes
- Combo headphone/mic port
- Yes
- USB Type-C DisplayPort Alternate Mode
- Yes
- USB Sleep-and-Charge
- Yes
- USB Sleep-and-Charge ports
- 1
Performance
- Motherboard chipset
- Intel HM770
Keyboard
- Pointing device
- Touchpad
- Numeric keypad
- Yes
- Keyboard backlit
- Yes
- Keyboard backlit colour
- RGB
- Keyboard backlit zone
- Per-key RGB
- Keyboard layout
- QWERTY
- Keyboard language
- US English
Software
- Operating system architecture
- 64-bit
- Operating system language
- English
- Operating system installed
- Windows 11 Pro
Processor special features
- Intel Flex Memory Access
- Yes
- Intel VT-x with Extended Page Tables (EPT)
- Yes
- CPU configuration (max)
- 1
- Embedded options available
- No
- Intel Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel Virtualization Technology (VT-x)
- Yes
Battery
- Battery technology
- Lithium Polymer (LiPo)
- Battery capacity
- 99.9 Wh
- Battery life (max)
- 4.4 h
- Continuous video playback time (max)
- 5.5 h
- Fast charging
- Yes
Power
- AC adapter power
- 330 W
- AC adapter frequency
- 50 - 60 Hz
- AC adapter input voltage
- 100 - 240 V
- USB Power Delivery (USB PD)
- Yes
Security
- Fingerprint reader
- No
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
- Password protection
- Yes
- Password protection type
- BIOS, HDD, Power on, Supervisor
Operational conditions
- Operating temperature (T-T)
- 5 - 35 °C
- Storage temperature (T-T)
- 5 - 43 °C
- Operating relative humidity (H-H)
- 8 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Maximum shipping altitude
- 3048 m
Certificates
- Compliance certificates
- RoHS
- Certification
- TÜV Rheinland® High Gaming Performance TÜV Rheinland Low Blue Light (Hardware Solution)
Sustainability
- Sustainability certificates
- ErP
Weight & dimensions
- Width
- 363.4 mm
- Depth
- 262.1 mm
- Height (front)
- 2.19 cm
- Height (rear)
- 2.59 cm
- Weight
- 2.8 kg
Downloads
