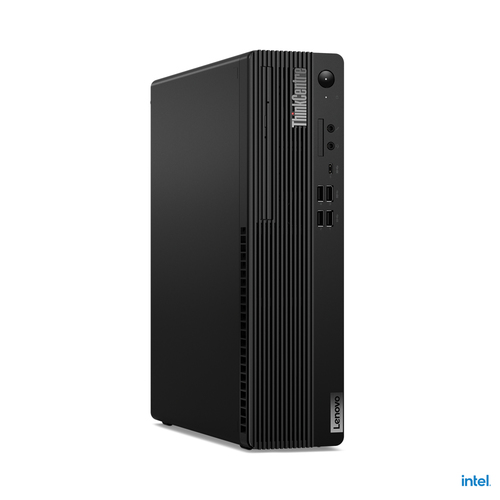

ThinkCentre M80s Intel® Core™ i5 i5-12500 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black
- Windows 11 Pro 64-bit
- Intel Core i5-12500 (18MB Cache)
- 16GB DDR5-SDRAM & 512GB SSD
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
This small form factor is a workhorse full of powerful features and fits seamlessly into evolving workplaces. Powered by the latest 12th Gen Intel Core Processors and up to 128 GB ultra-responsive DDR5 memory, it makes working on multiple applications and compute-intensive tasks faster and smoother. Edit photos or videos, render 3D animations, or simply play games with excellent visuals, thanks to its onboard highperformance graphics like Intel UHD 770 and discrete Intel Iris and AMD Radeon graphics.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i5
- Processor generation
- 12th gen Intel® Core™ i5
- Processor model
- i5-12500
- Processor cores
- 6
- Processor boost frequency
- 4.6 GHz
- Processor cache
- 18 MB
- Bus type
- DMI4
Memory
- Internal memory
- 16 GB
- Maximum internal memory
- 128 GB
- Internal memory type
- DDR5-SDRAM
- Memory slots
- 4x DIMM
- Memory clock speed
- 4400 MHz
- Memory channels
- Dual-channel
Storage
- Total storage capacity
- 512 GB
- Storage media
- SSD
- Optical drive type
- DVD±RW
- Total SSDs capacity
- 512 GB
- Number of SSDs installed
- 1
- SSD capacity
- 512 GB
- SSD interface
- NVMe, PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
- Card reader integrated
- No
Graphics
- Discrete graphics card
- No
- On-board graphics card
- Yes
- Discrete graphics card model
- Not available
- On-board GPU manufacturer
- Intel
- On-board graphics card model
- Intel UHD Graphics 770
Performance
- Motherboard chipset
- Intel Q670
- Password protection
- Yes
- Password protection type
- Power on, Supervisor, HDD
- Trusted Platform Module (TPM)
- Yes
- Product type
- PC
- Built-in speaker(s)
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 1000,100 Mbit/s
- Cabling technology
- 10/100/1000Base-T(X)
- Wi-Fi
- No
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.4
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Ethernet LAN (RJ-45) ports
- 1
- Combo headphone/mic port
- Yes
- Line-out
- Yes
- Microphone in
- Yes
- PS/2 ports quantity
- 2
Power
- Power supply
- 260 W
- Power supply input voltage
- 100 - 240 V
Design
- Chassis type
- SFF
- Volume
- 8.2 L
- Placement supported
- Horizontal/Vertical
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Product colour
- Black
- Viewing window
- No
Software
- Operating system architecture
- 64-bit
- Operating system language
- English
- Operating system installed
- Windows 11 Pro
Processor special features
- Intel 64
- Yes
- Enhanced Intel SpeedStep Technology
- Yes
- Embedded options available
- No
- Intel VT-x with Extended Page Tables (EPT)
- Yes
- Idle States
- Yes
- Intel Stable Image Platform Program (SIPP)
- Yes
- Intel Trusted Execution Technology
- Yes
- Execute Disable Bit
- Yes
- CPU configuration (max)
- 1
- Intel Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel Virtualization Technology (VT-x)
- Yes
Display
- Display included
- No
Audio
- Audio system
- High Definition Audio
- Number of speakers
- 1
Operational conditions
- Operating temperature (T-T)
- 5 - 35 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage relative humidity (H-H)
- 10 - 90%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 12192 m
Weight & dimensions
- Width
- 92.5 mm
- Depth
- 297.7 mm
- Height
- 339.5 mm
- Weight
- 5.3 kg
Packaging data
- Package width
- 195 mm
- Package depth
- 395 mm
- Package height
- 530 mm
- Package weight
- 7.6 kg
Packaging content
- Mouse included
- Yes
- Keyboard included
- Yes
Certificates
- Compliance certificates
- RoHS
- Certification
- ErP Lot 3, MIL-STD-810H
Sustainability
- Sustainability certificates
- TCO
