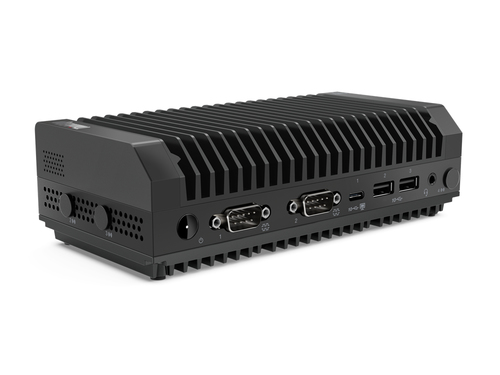

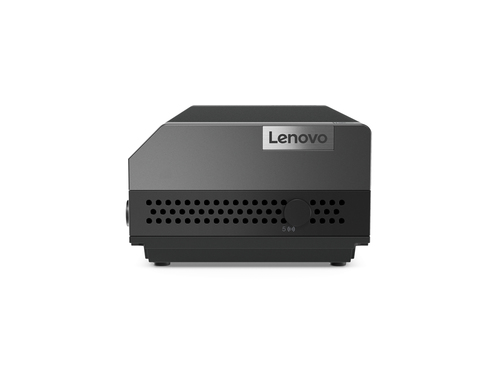

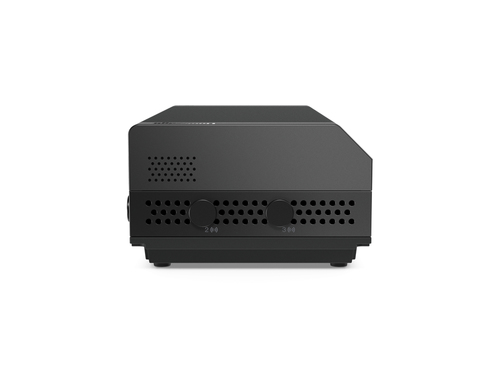

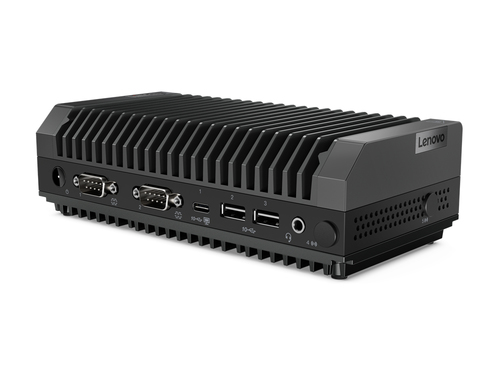

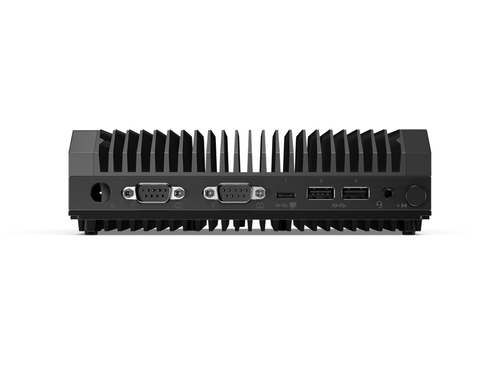

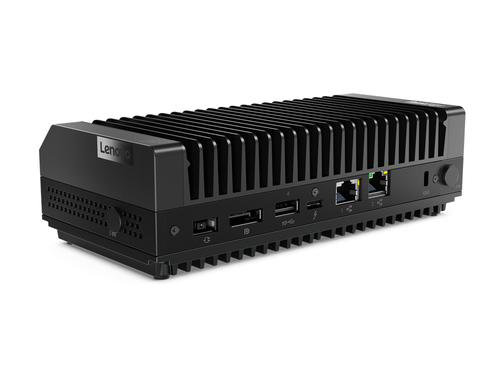

ThinkEdge SE30 Intel® Core™ i5 i5-1145GRE 16 GB DDR4-SDRAM 512 GB SSD Windows 10 IoT Enterprise Mini PC Black

Part # 11NA000JUSUPC 195890241180Warranty: 3 Years2.25 lb

Mini PC Black 65 W
Intel® Core™ i5 i5-1145GRE 1.5 GHz Processor cores: 4
16 GB DDR4-SDRAM 3200 MHz
512 GB SSD
Intel Iris Xe Graphics
Ethernet LAN 1000,2500,100 Mbit/s Wi-Fi 5 (802.11ac) Bluetooth 5.1

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Excellent performance in a compact body

Compact, rugged and reliable, the ThinkEdge SE30 is an edge IoT-dedicated terminal with the tiny footprint of a 0.81L device. Its 11th Gen Intel® Core™ i5-1145GRE / i3-1115GRE processors for IoT and embedded devices support Wifi, Bluetooth™ and 4G LTE or 5G WWAN wireless connections to efficiently transport your IoT data to the cloud or your data center.

Ideal for use in harsh environments

With an innovative fanless design that guarantees efficient heat dissipation, the SE30 supports a thermal operating temperature range from -20° to 60° C. Its MIL-STD-tested device reliability offers durable performance for uninterrupted productivity, even in harsh conditions.

Secure & reliable

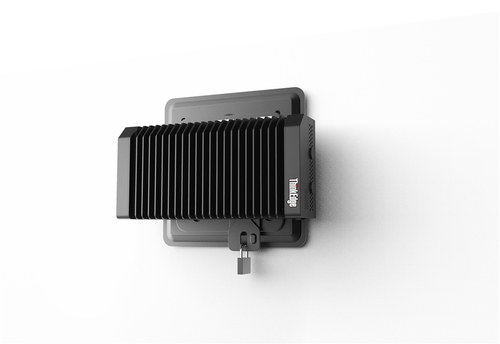

The SE30’s Kensington and VESA mount locks mean the device stays where you put it, and paired with RSA encryption to secure user data, a hardware watchdog timer helps ensure continuous operation. With MIL-STD810H compliant robustness, and continuous operation 24 hours a day, 365 days a year, you can install it with confidence.

Flexible network connectivity

Built for evolving IoT environments, the ThinkEdge SE30 supports 4G and 5G high-speed communication and quickly and securely collects, analyzes and transmits your IoT data to the cloud or data center.

Specifications

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: 11th gen Intel® Core™ i5
Processor model: i5-1145GRE
Processor cores: 4
Processor threads: 8
Processor boost frequency: 4.1 GHz
Processor frequency: 1.5 GHz
Processor cache: 8 MB
Processor cache type: Smart Cache
Configurable TDP-up frequency: 2.6 GHz
Configurable TDP-up: 28 W
Configurable TDP-down: 12 W
Configurable TDP-down frequency: 1.1 GHz
Number of processors installed: 1

Memory

Internal memory: 16 GB
Maximum internal memory: 16 GB
Internal memory type: DDR4-SDRAM
Memory clock speed: 3200 MHz
Memory channels: Dual-channel

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: NVMe, PCI Express 3.0
NVMe: Yes
SSD form factor: M.2

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Iris Xe Graphics
On-board graphics card model: Intel Iris Xe Graphics

Performance

Motherboard chipset: Intel SoC
Trusted Platform Module (TPM): Yes
Product type: Mini PC

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 1000,2500,100 Mbit/s
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Dual Band Wireless-AC 9260
Antenna type: 2x2
Bluetooth: Yes
Bluetooth version: 5.1
