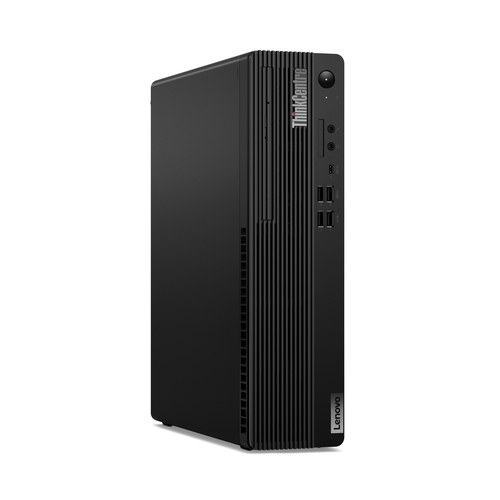

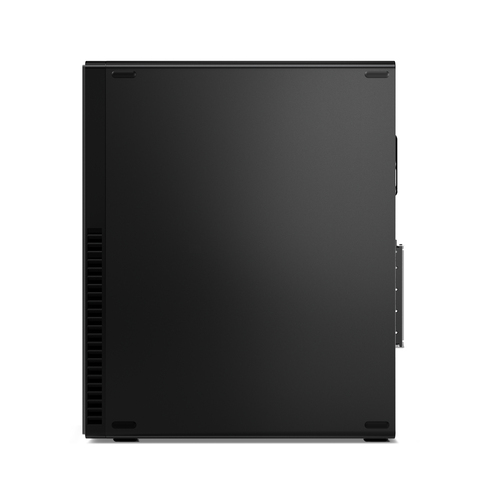

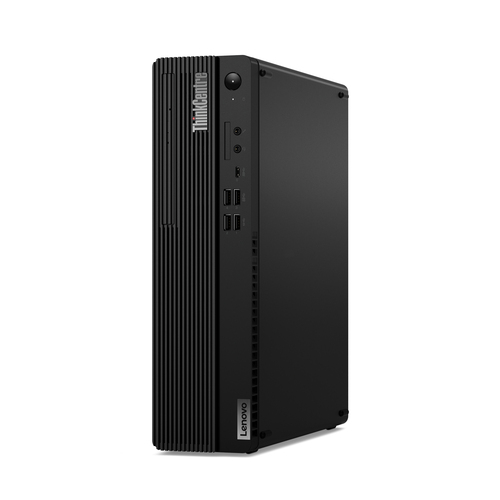

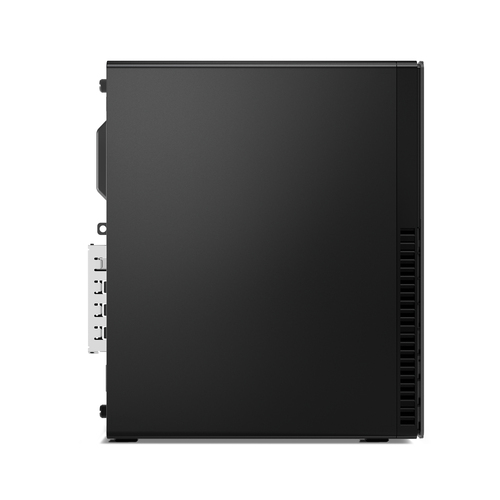

ThinkCentre M70s Gen 3 Intel® Core™ i5 i5-12400 16 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black
- Intel Core i5-12400, 6C (6P + 0E)/12T, P-core 2.5/4.4GHz, 18MB
- 1x 16GB UDIMM DDR4-3200
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
- Intel UHD Graphics 730
- Windows 11 Pro
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Power & flexibility in a small form factor
The ThinkCentre M70s Gen 3 (Intel) small form factor desktop PC is engineered to save space and handle tasks like larger tower PCs can. At 8.2L, it improves productivity and employee experience with its power and convenience, while its sustainable design enhances your company’s green credentials.
Dependable performance
The ThinkCentre M70s Gen 3 (Intel) is designed for powerful productivity with up to 12th Gen Intel® Core™ i9 vPro® processors. Up to 128 GB of DDR4 memory and dedicated graphics options help you tackle multitasking, data-intensive operations, and complex graphic projects–all in a space-saving form factor.
Dependable speed
Boot up, search, and access your data quickly and reliably with optional solid-state drive (SSD) storage, while 3D NAND technology ensures reliable performance and optimal power consumption for your PC.
Productivity that grows with you
Whether multitasking administrative tasks, crunching data-intensive analytics, or editing high-resolution graphics, you never sacrifice performance. Engineered for upgradability, the M70s Gen 3 comes equipped with multiple I/O ports and expansion slots so you can configure your PC for your specific needs.
Smart. Easy. Connected.
You never lack connectivity for your peripherals with multiple port and wireless options. And thanks to the innovative Smart Cable, the M70s Gen 3 collaborates efficiently with USB devices and even another laptop or tablet. Its DP and HDMI ports allow you to run up to four monitors simultaneously. Additional expansion slots allow you to configure your PC further.
Secure your data & your business
With Lenovo ThinkShield, hardware and software security deliver peace of mind. Discrete Trusted Platform Module (dTPM) 2.0 on-chip encryption protects your passwords and data. BIOS-based Smart USB prevents unauthorized access, while the physical lock features can secure your PC from theft.
Eco-friendly & user-friendly
The M70s Gen 3 has multiple environmental certificates, including ENERGY STAR® 8.0, EPEAT™ Gold, RoHS, and more. In addition, TÜV Low Noise certification means this PC is both eco- and user-friendly. Monitor, keyboard, and mouse sold separately.
Specifications may vary depending upon region / model.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i5
- Processor generation
- 12th gen Intel® Core™ i5
- Processor model
- i5-12400
- Processor cores
- 6
- Processor threads
- 12
- Processor boost frequency
- 4.4 GHz
- Processor cache
- 18 MB
- Bus type
- DMI4
Memory
- Internal memory
- 16 GB
- Maximum internal memory
- 128 GB
- Internal memory type
- DDR4-SDRAM
- Memory layout (slots x size)
- 1 x 16 GB
- Memory slots
- 4x DIMM
- Memory clock speed
- 3200 MHz
- Memory channels
- Dual-channel
Storage
- Total storage capacity
- 512 GB
- Storage media
- SSD
- Optical drive type
- DVD±RW
- Number of storage drives installed
- 1
- Total SSDs capacity
- 512 GB
- Number of SSDs installed
- 1
- SSD capacity
- 512 GB
- SSD interface
- NVMe, PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
- Card reader integrated
- No
Graphics
- Discrete graphics card
- No
- On-board graphics card
- Yes
- Discrete graphics card model
- Not available
- On-board GPU manufacturer
- Intel
- On-board graphics card family
- Intel® UHD Graphics
- On-board graphics card model
- Intel UHD Graphics 730
Performance
- Motherboard chipset
- Intel Q670
- Password protection
- Yes
- Password protection type
- HDD, Power on, Supervisor
- Trusted Platform Module (TPM)
- Yes
- Product type
- PC
- Built-in speaker(s)
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 100,1000 Mbit/s
- Cabling technology
- 10/100/1000Base-T(X)
- Wi-Fi
- No
- Bluetooth
- No

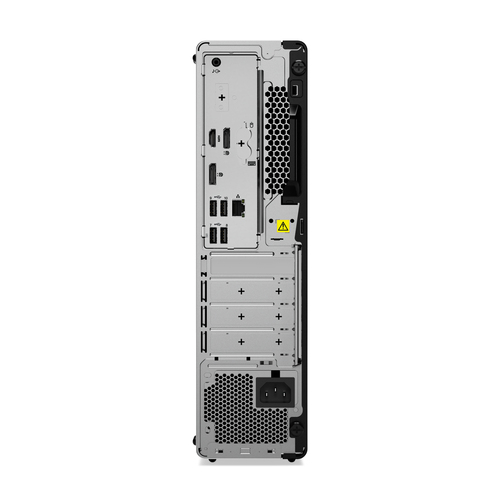

Ports & interfaces
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.4
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Ethernet LAN (RJ-45) ports
- 1
- Combo headphone/mic port
- Yes
- Line-out
- Yes
- Microphone in
- Yes
Power
- Power supply
- 260 W
- Power supply input voltage
- 100 - 240 V
Design
- Chassis type
- SFF
- Colour name
- Black
- Volume
- 8.2 L
- Placement supported
- Horizontal/Vertical
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Product colour
- Black
- Viewing window
- No
Software
- Operating system architecture
- 64-bit
- Operating system language
- English
- Operating system installed
- Windows 11 Pro
Processor special features
- Intel 64
- Yes
- Enhanced Intel SpeedStep Technology
- Yes
- Embedded options available
- No
- Intel VT-x with Extended Page Tables (EPT)
- Yes
- Idle States
- Yes
- Execute Disable Bit
- Yes
- CPU configuration (max)
- 1
- Intel Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel Virtualization Technology (VT-x)
- Yes
Display
- Display included
- No
Audio
- Audio chip
- Realtek ALC897Q-CG
- Audio system
- High Definition Audio
- Number of speakers
- 1
Operational conditions
- Operating temperature (T-T)
- 5 - 35 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage relative humidity (H-H)
- 10 - 90%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 12192 m
Weight & dimensions
- Width
- 93 mm
- Depth
- 298 mm
- Height
- 340 mm
- Weight
- 5.3 kg
Packaging content
- Mouse included
- Yes
- Mouse connectivity
- Wired
- Keyboard included
- Yes
Certificates
- Compliance certificates
- RoHS
- Certification
- MIL-STD-810H, ErP Lot 3
Sustainability
- Sustainability certificates
- TCO
Keyboard
- Keyboard connectivity
- Wired
