KensingtonLaptop Docks & Port Replicators
SD4750P Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black
- Wired
- Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB Power Delivery (USB PD)
- Ethernet LAN 100,10,1000 Mbit/s
- Cable lock slot
- Plug and Play
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

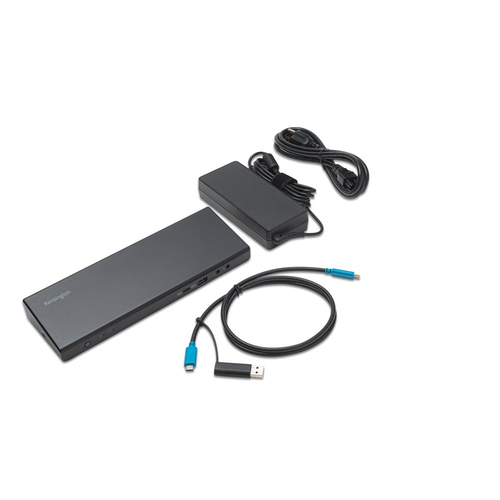

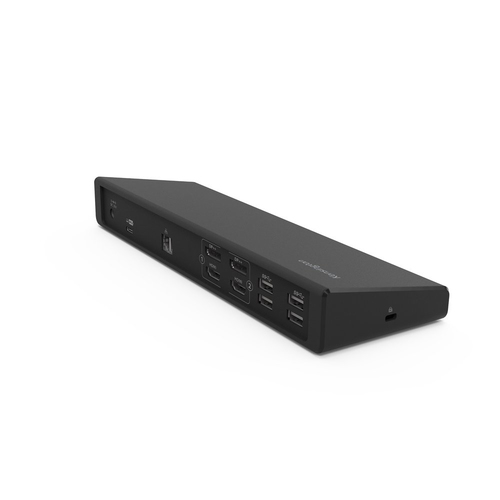

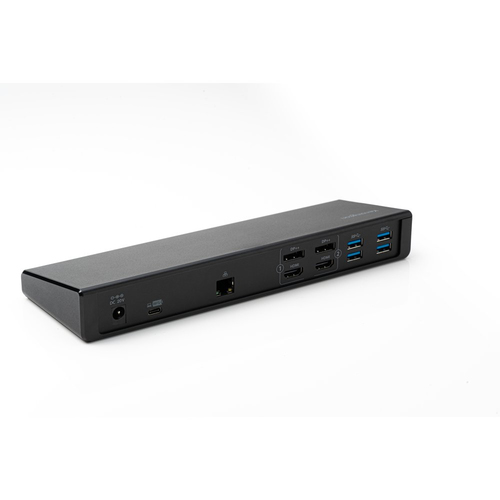

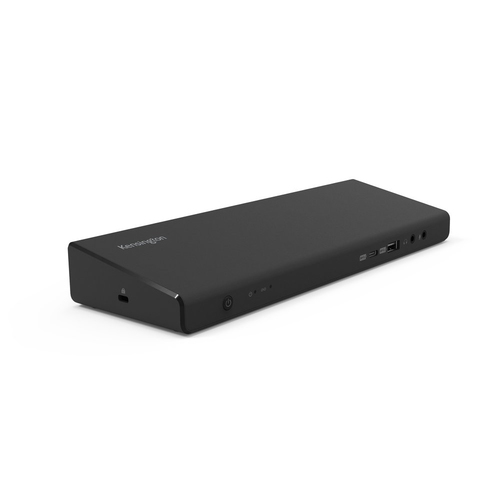

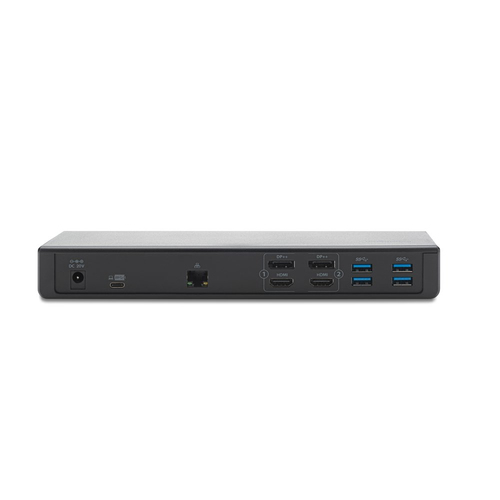

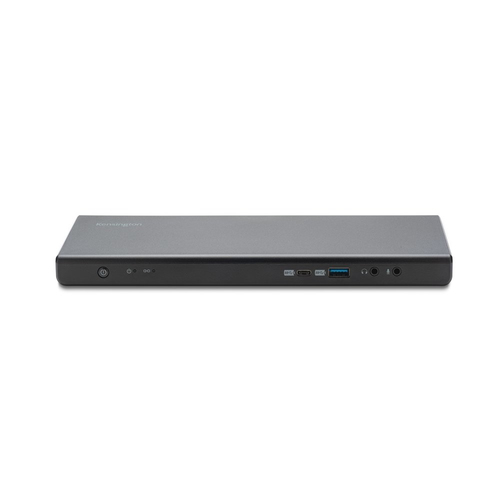

The SD4750P USB-C & USB-A Dual 4K Hybrid Docking Station w/ 135W adapter - DP & HDMI - Win/Mac is the ideal docking solution for Ultra High Definition video for up to two 4K 60Hz monitors. Features include the ability to select between HDMI 2.0 and DP 1.2 video ports, 85W of power delivery, and six USB ports.
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 5
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery revision
- 3.0
- USB Power Delivery up to
- 85 W
- HDMI ports quantity
- 2
- HDMI version
- 2.0
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.2
- Microphone in
- Yes
- Headphone outputs
- 1
- Headphone connectivity
- 3.5 mm
- DC-in jack
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 100,10,1000 Mbit/s
Performance
- Card reader integrated
- No
- Data transfer rate
- 5 Gbit/s
- HD type
- 4K Ultra HD
- Maximum digital resolution
- 3840 x 2160 pixels
- Number of displays supported
- 2

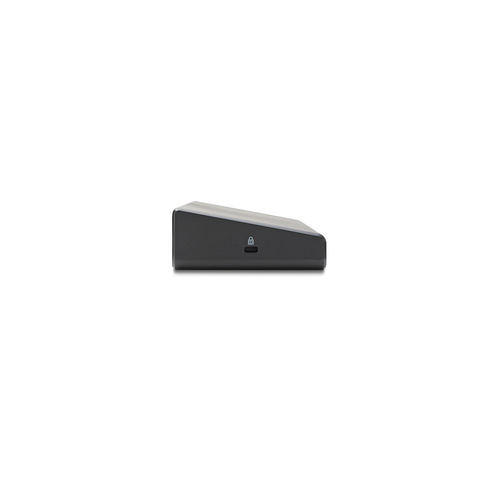

- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Product colour
- Black
- Plug and Play
- Yes
- Country of origin
- Taiwan
- Certification
- TAA
Power
- Power source type
- DC
Software
- Windows operating systems supported
- Yes
- Mac operating systems supported
- Yes
- Other operating systems supported
- ChromeOS
Weight & dimensions
- Width
- 273.1 mm
- Depth
- 87.9 mm
- Height
- 117.1 mm
Packaging data
- Package weight
- 1.21 kg
Other features
- Compatible operating systems
- Chrome OS 44 or above; macOS 10.14 or above; Windows 7 or above
- USB ports quantity
- 6
