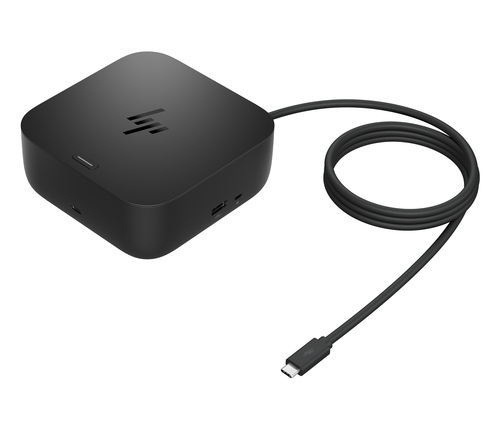

USB-C 100W G6 Dock

Part # 9X3V1UT#ABAUPC 1984153140313.45 lb

Crafted<sup>[6]</sup> with replaceable parts to maximize your fleet's lifecycle. Built with a power consumption module to monitor your energy consumption. Delivered in plastic-free packaging<sup>[7]</sup>

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

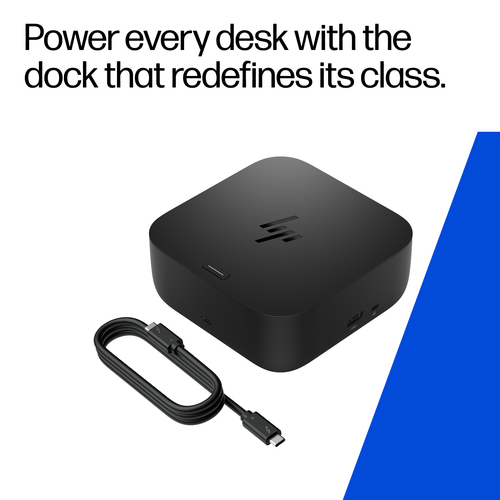

Power every desk with the dock that redefines its class

Kickstart your day with less hassle and more hustle. The HP USB-C 100W G6 Dock boots your ecosystem as you arrive, connects instantly[1] via a single USB-C cable, and streamlines your setup with ample ports and seamless, secure connectivity—all while staying up to date with remote manageability.

Specifications

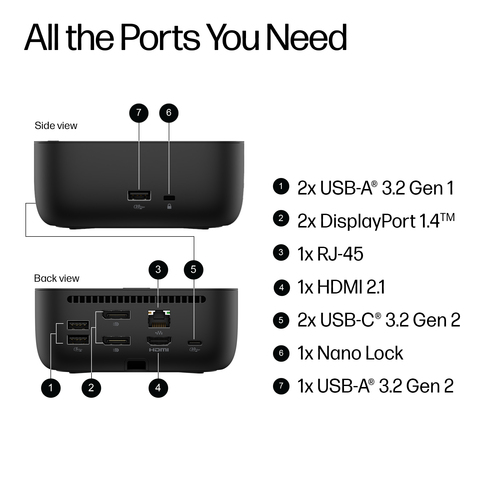

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Microphone in: No

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 25000 Mbit/s

Performance

Colour name: Jet black
Card reader integrated: No
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 120 Hz
Cable lock slot: Yes
Cable lock slot type: Nano
Product colour: Black
LED indicators: Power
Country of origin: China, Thailand
Compatibility: Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more.
HP segment: Business

Power

Power supply: 120 W
USB cable length: 1 m

Software

Windows operating systems supported: Windows 10, Windows 11
Mac operating systems supported: MacOS
Linux operating systems supported: Yes
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: -15 - 3048 m
Non-operating altitude: -15 - 12192 m

Sustainability

Sustainable technologies and materials: Plastic-free packaging; At least 35% post-consumer recycled plastic; Packaged in at least 35% recycled corrugated material

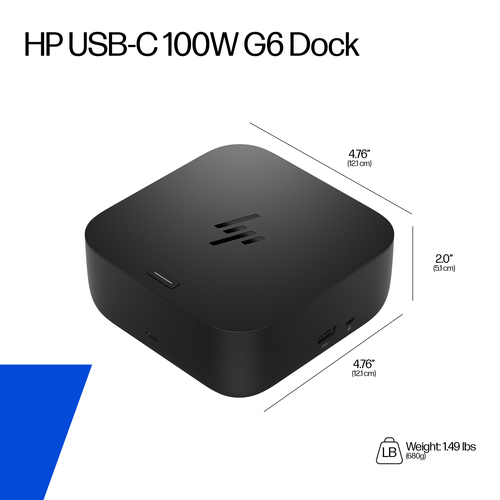

Weight & dimensions

Width: 121 mm
Depth: 121 mm
Height: 51 mm
Weight: 680 g

Packaging data

Package width: 396 mm
Package depth: 950 mm
Package height: 1710 mm
Package weight: 1.09 kg

Packaging content

Warranty card: Yes

Carbon footprint

Total carbon footprint (kg of CO2e): 10
Carbon emissions, manufacturing (kg of CO2e): 7
Carbon emissions, logistics (kg of CO2e): 0.3
Carbon emissions, end-of-life (kg of CO2e): 0.1
Total carbon emissions, w/o use phase (kg of CO2e): 2

Technical details

Box contents: HP USB-C 100W G6 Dock; 120 W power adapter; Product notice; Warranty card
General Product Safety Regulation (GPSR) URL: https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true

Other features

Compatible operating systems: Windows 11; Windows 10; macOS; Linux; ThinPro; ChromeOS
Pallet dimensions (W x D x H) (imperial): 1199.9 x 997.5 x 145 mm (47.2 x 39.3 x 5.71")
Pallet dimensions (W x D x H): 1200 x 1000 x 145 mm
UNSPSC-code: 43211602
Bundled software: Poly Lens (Cloud, Desktop)
