EpsonScanners

DS32000 Largeformat Document Scanner

Part # B11B255201UPC 010343952195Warranty: 3-year limited warranty16.5 lb

Compact — flexible design fits your workspace and makes storage easy
Seamless compatibility with document management systems — TWAIN and ISIS® drivers included
Advanced paper feeding system — Slow Mode for delicate sheets; Double-feed Detection to prevent missing pages; also features Paper Protection function, Power Separation Mode and more
Powerful software with OCR — use the included Epson Document Capture software to create searchable PDFs or scan to online storage accounts

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Ultra fast, versatile and compact scanner for high-volume business needs.

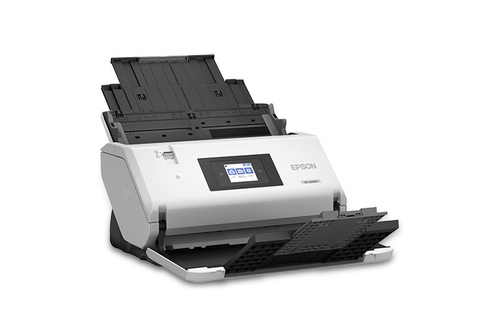

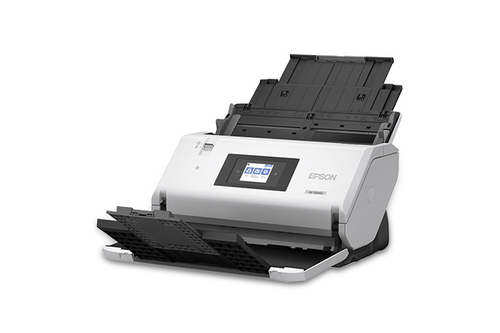

Designed for busy offices, the DS-32000 large-format document scanner makes it easy to take on any project. It offers speeds up to 90 ppm and includes a host of productivity features, such as a 120-sheet Auto Document Feeder, dual-sided scanning, a programmable 2.7" touchscreen and a paper-protection function — all in a flexible design. With versatile paper support, it provides vertical and horizontal feed options. Accommodating sheets up to 12" x 17", it can also scan folded pages, plastic cards, sealed envelopes, passports and more. The compact DS-32000 fits your workspace and makes storage easy. Plus, it delivers a 40,000-page peak daily duty cycle.

Fast speeds

up to 90 ppm/180 ipm

Built for busy offices

120-sheet Auto Document Feeder; plus, peak daily duty cycle of 40,000 sheets

Flexible feed options

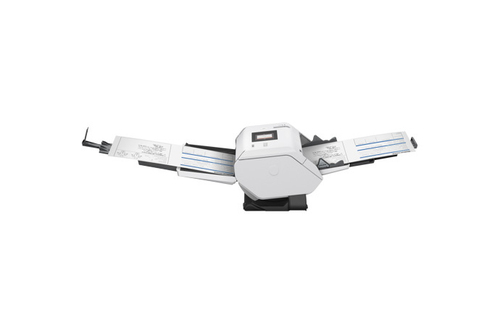

vertical feed for high-volume scanning; horizontal feed for sealed envelopes, folded papers and delicate sheets.

Reliability you can count on

industry-leading service and support; 3-year limited warranty with next-business-day replacement

Versatile paper support

scan documents up to 12" x 17", folded pages, plastic cards, sealed envelopes, passports and more

Easy to use

large, 2.7" touchscreen display for easy access to scan jobs, settings and maintenance features

Specifications

Scanning

Maximum scan size: 304.8 x 5588 mm
Optical scanning resolution: 600 x 600 DPI
Colour scanning: Yes
Duplex scanning: Yes
Input colour depth: 30 bit
Output colour depth: 24 bit
Input greyscale depth: 10 bit
Output greyscale depth: 8 bit
Output monochrome depth: 24 bit

Design

Scanner type: Sheet-fed scanner
Product colour: White
Display: LCD
Display diagonal: 6.86 cm (2.7")
Touchscreen: Yes
Colour display: Yes
Built-in display: Yes

Performance

Sensor type: Dual CIS
Light source: White LED
Scan file formats: BMP, JPEG, PDF, PNG, PPTX, TIFF, XLSX
Daily duty cycle (max): 40000 pages
Scan to: E-mail, FTP, HTTP, PC, USB
Scan drivers: ICA, ISIS, TWAIN, WIA
Ultrasonic double sheet detection: Yes
Scanning noise level: 67 dB
Sound pressure level (max): 53 dB

Input capacity

Auto document feeder (ADF) input capacity: 120 sheets

Paper handling

Scanning media types supported: Business Card, Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size: A3
ISO A-series sizes (A0...A9): A3, A4, A5, A6, A7, A8
Legal: Yes
Auto Document Feeder (ADF) media weight: 20 - 413 g/m²
Maximum scan area (ADF): 304.8 x 5588 mm
Minimum scan area (ADF): 50.8 x 69 mm

Ports & interfaces

USB port: Yes
USB version: 3.2 Gen 1 (3.1 Gen 1)

Power

Power supply type: AC
Power consumption (typical): 20 W
Power consumption (standby): 11 W
Power consumption (off): 0.1 W
Sleep mode: Yes
Input voltage: 100 - 240 V
Power consumption (sleep): 1.4 W

Weight & dimensions

Width: 371 mm
Depth: 208 mm
Height: 219 mm
Weight: 5.8 kg

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Cables included: USB
Bundled software: Epson Document Capture (Mac), Epson Document Capture Pro (Windows), Epson Scan 2

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported: Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 25 - 60 °C
Operating relative humidity (H-H): 15 - 80%
Storage relative humidity (H-H): 15 - 85%

Downloads

Product brochure (PDF)User manual (PDF)
