Home/Catalogue/Canon/1009C002

Drag to turn · 3 views

CanonScanners

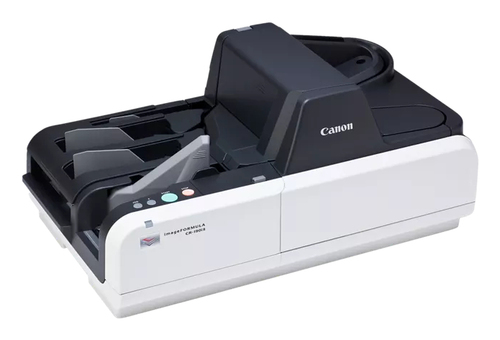

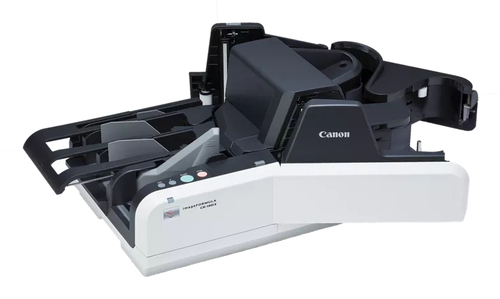

imageFORMULA CR-190i II ADF scanner 1200 x 1200 DPI Black, White

Part # 1009C002UPC 013803267266Warranty: 1 year18.5 lb

Scans up to 190 checks per minute
Magnetic Ink Character Recognition (MICR)
Optical Character Recognition (OCR)
Both physical and virtual endorsement, and imprinter, capabilities included
TAA Compliant Device

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Deliver high performance, reliability, and image quality to production check processing with Canon’s imageFORMULA CR-190i II high-volume check transport. With a convenient countertop design and versatile document handling, the CR-190i II check transport can help meet even the toughest challenges.

WIDE RANGE OF USES

The CR-190i II check transport can assist in handling large volumes of checks to improve the efficiency of payment processes and treasury management in areas such as financial institutions, utilities, and other organizations. Many features of the CR-190i II check transport are ideal for high-volume remittance processing, lockbox, and back-office/branch capture. Bundled with the Silver Bullet Ranger API, this check transport can help ensure compatibility with virtually any check processing software application.

DYNAMIC AND RELIABLE PERFORMANCE

Capable of scanning up to 190 items per minute,* the CR-190i II check transport can perform real-time, dynamic, four-line endorsement. Equipped with a high-capacity, 250-item Automatic Document Feeder (ADF), it can reliably handle a wide variety of document types, including business and personal checks, thicker items such as rebate check cards, deposit and withdrawal slips, coupons, tickets, and envelopes. The CR-190i II check transport also includes two 200-item eject pockets that can be used individually or virtually combined to form one large pocket with output items “waterfalling” or alternating between each physical pocket for increased output capacity as required. These eject pockets are supplemented with an additional 50-item pocket for three-way sorting capability. The built-in jogger provides optimal item alignment to help eliminate misfeeds, and the ultrasonic double-feed detector helps to ensure no data is lost when double-feeds are detected.

PRECISE IMAGE QUALITY

The CR-190i II check transport builds on Canon’s high-precision optical technology expertise to deliver high image quality. Image processing features such as Fine Text Filtering allow for clear image capture with less distortion, resulting in better OCR accuracy. This scanner also uses magnetic/optical character recognition (MOCR) technology, which combines MICR reading with OCR processing, to help accurately capture MICR data. These features enable small details and other valuable check information to be captured and reproduced with clarity and precision.

EFFICIENT DESIGN

The CR-190i II check transport’s countertop size and easy-access design allows it to fit into environments that are vigorous with activity. Durable materials, enclosed mechanics, and an easyaccess paper path allow operators to conveniently perform basic maintenance tasks, such as changing the imprinter’s ink cartridge, clearing jams, and cleaning the scanning glass.

ENVIRONMENT IN MIND

The CR-190i II check transport is ENERGY STAR® certified and complies with both the EU RoHS and WEEE directives for the reduction of hazardous substances and waste products.

CUSTOMER CARE

For investment protection, eCarePAK options are available to extend service beyond the initial, one-year advanced exchange warranty period. This helps save on costs associated with post-purchasing maintenance and helps maximize uptime throughout the product life.

Specifications

Scanning

Maximum scan size: 109.22 x 243.84 mm
Optical scanning resolution: 1200 x 1200 DPI
Duplex scanning: Yes
Greyscale levels: 256

Design

Scanner type: ADF scanner
Product colour: Black, White
Built-in display: No

Performance

Sensor type: CMOS CIS
Daily duty cycle (max): 24000 pages
Built-in MICR: Yes
MICR font set: CMC-7, E-13B
Built-in OCR: Yes
Scan drivers: ISIS, TWAIN

Input capacity

Standard input capacity: 250 sheets

Paper handling

Media thickness (min): 0.08 mm
Paper tray media weight: 64 - 157 g/m²
Auto Document Feeder (ADF) media weight: 64 - 157 g/m²
Maximum scan width: 10.8 cm
Maximum scan length: 24.5 cm
Maximum scan area (ADF): 108 x 245 mm
Minimum scan area (ADF): 68 x 120 mm

Ports & interfaces

USB port: Yes
USB version: 2.0

Power

Power supply type: AC
Power consumption (typical): 49 W
Power consumption (standby): 2.7 W
AC input frequency: 50 - 60 Hz
Input voltage: 220 - 240 V

Weight & dimensions

Width: 272 mm
Depth: 476 mm
Height: 214 mm
Weight: 8.4 kg

Packaging data

Quantity per pack: 1 pc(s)

Sustainability

Sustainability certificates: ENERGY STAR

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP

Operational conditions

Operating temperature (T-T): 10 - 32.5 °C
Operating relative humidity (H-H): 20 - 80%

Other features

Compliance certificates: RoHS

Logistics data

Country of origin: Japan

Downloads

Product brochure (PDF)
