EpsonScanners

The fastest, smallest and lightest wireless mobile single-sheet-fed document scanner, the Epson

Part # B11B253202UPC 0103439450811.2 lb

Create editable text and searchable PDFs ― OCR and document management software included
Versatile paper handling ― scans documents up to 8.5" x 72", as well as business/ID cards and receipts
Powerful software included ― Document Capture makes it easy to scan, store and share important documents
Automatic Feeding Mode ― combine multi-page scans into one file; automatically accepts each new sheet as it’s inserted

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The wireless portable scanner with best-in-class speed1.

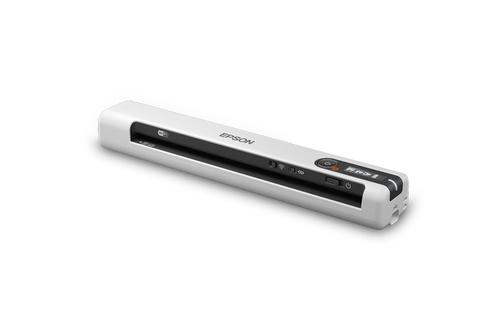

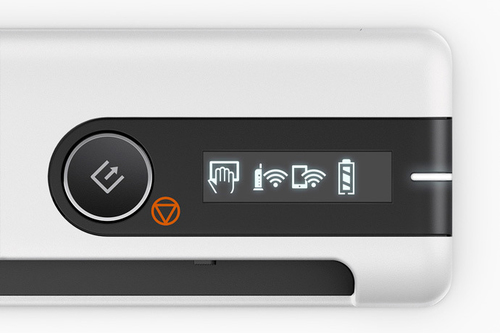

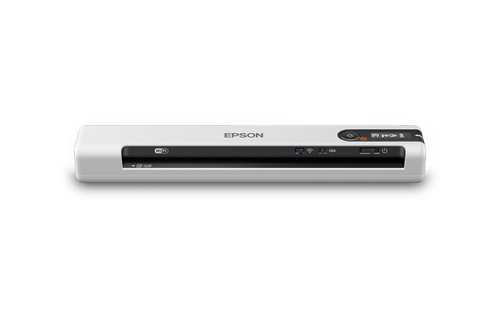

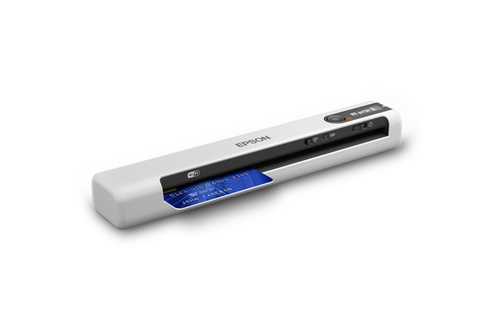

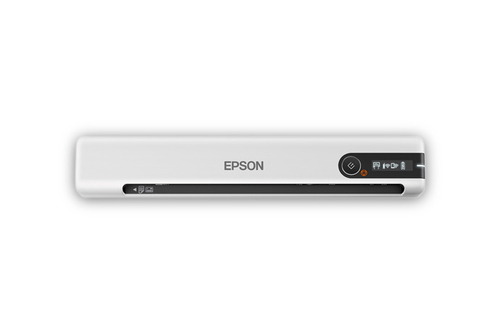

The fastest, smallest and lightest wireless mobile single-sheet-fed document scanner1, the Epson DS-80W features wireless scanning and groundbreaking speeds ― scanning a single page in as fast as 4 seconds2. Users can wirelessly scan critical documents to a PC, Mac®, iOS® or Android™ device3. The DS-80W automatically detects whether it’s in wireless or USB mode. There’s no intervention required. A convenient LCD displays the wireless status, as well as the battery level. With world-class service and support, this portable scanner includes a 3-year limited warranty4. And, it includes OCR and document management software to easily create editable text and searchable PDFs.

Specifications

Scanning

Optical scanning resolution: 600 x 600 DPI
Colour scanning: Yes
Duplex scanning: No
Input colour depth: 16 bit
Output colour depth: 8 bit
ADF scan speed (b/w, A4): 15 ppm

Design

Scanner type: Sheet-fed scanner
Product colour: Black, White
Built-in display: Yes

Performance

Sensor type: CIS
Light source: RGB LED
Scan file formats: BMP, JPEG, PDF, PNG, TIFF
Daily duty cycle (max): 300 pages
Scan drivers: TWAIN

Input capacity

Auto document feeder (ADF) input capacity: 1 sheets

Paper handling

Scanning media types supported: Business Card, Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size: A4
Auto Document Feeder (ADF) media weight: 35 - 270 g/m²

Ports & interfaces

USB port: Yes
USB version: 2.0
Standard interfaces: USB 2.0, Wireless LAN

Network

Wi-Fi: Yes

Power

Power supply type: USB/Battery
Power consumption (off): 0.3 W
Sleep mode: Yes
Power consumption (sleep): 1 W

Weight & dimensions

Width: 272 mm
Depth: 47 mm
Height: 34 mm
Weight: 300 g

Packaging content

Cables included: USB
Bundled software: Epson Scan 2 Document Capture Pro (Windows) Document Capture (Mac)

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -25 - 60 °C

Other features

Compliance certificates: RoHS

Logistics data

Country of origin: China

Downloads

Product brochure (PDF)
