Home/Catalogue/Epson/B11B205321

Drag to turn · 3 views

EpsonScanners

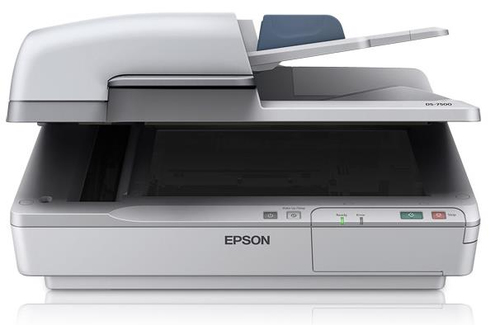

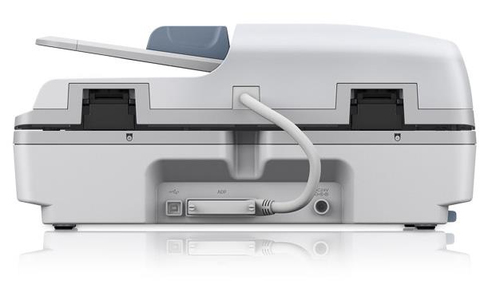

WorkForce DS-7500

Part # B11B205321UPC 01034388644527.4 lb

Scanner type: Flatbed & ADF scanner 1200 x 1200 DPI
Colour scanning Duplex scanning
A4
Maximum scan size: 216 x 1016 mm Sensor type: CCD
USB port Ethernet LAN
Power supply type: AC 45 W

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Built To Perform.

High-speed, 2-sided document imaging, along with flatbed versatility, is right at your fingertips with the fast, affordable WorkForce DS-7500. This high performance scanner delivers remarkable scans from 4" x 6" and up to 8.5" x 40", quickly scanning 2-sided documents in just one pass. Use the 100-sheet Automatic Document Feeder (ADF) to scan stacks of one- or 2-sided documents. Or, use the 8.5" x 11.7" flatbed to scan hard-bound books or other odd-sized items. The DS-7500 blazes through each task at speeds up to 40 ppm / 80 ipm1. And, its 4 line CCD sensor (RGB and black) consistently delivers vivid colors and crisp, sharp text. Plus, with productivity software included and the optional network scan module, each member of your team can access high performance scanning for critical project needs.

Features

- Capture large, two-sided documents in a single scan — scans documents as small as 4" x 6" and up to 8.5" x 40" via the ADF or 8.5" x 11.7" via the flatbed scanner bed

- Achieve remarkable results — 4 line CCD (RGB and black) provides vivid color and crisp, sharp text; included book spine correction eliminates distortion when scanning bound materials1

- Boost productivity — one-pass, duplex scanning at speeds of 40 ppm / 80 ipm1

- Work smarter and more efficiently — built-in 100-sheet Automatic Document Feeder, plus auto duplex scanning

- Ultrasonic double-feed detector — automatically stops the scan job if two pages have fed together

- Convenient, network scanning capabilities — use the optional networking module and included Document Capture Pro software to scan to any PC on the local network1

- Scan to popular cloud services1 — scan to SharePoint®, Evernote®, Google Docs and more

- Scan to searchable PDF — save scanned documents as PDF, PDF-A or jpeg files, and more

- Do more with powerful productivity software — includes Epson® Scan, Document Capture Pro and ABBYY® FineReader® Sprint OCR

- One-touch scanning — create up to 30 user-programmable jobs

Specifications

Scanning

Maximum scan size: 216 x 1016 mm
Optical scanning resolution: 1200 x 1200 DPI
Colour scanning: Yes
Duplex scanning: Yes
Input colour depth: 48 bit
Output colour depth: 24 bit
Greyscale levels: 16
ADF scan speed (b/w, A4): 40 ppm
ADF scan speed (colour, A4): 40 ppm
Duplex ADF scan speed (b/w, A4): 80 ipm
Duplex ADF scan speed (colour, A4): 80 ipm

Design

Scanner type: Flatbed & ADF scanner
Product colour: White

Performance

Sensor type: CCD
Light source: ReadyScan LED
Scan file formats: JPG, PDF, TIFF
Daily duty cycle (max): 4000 pages

Input capacity

Auto document feeder (ADF) input capacity: 100 sheets

Paper handling

Maximum ISO A-series paper size: A4
ISO A-series sizes (A0...A9): A4, A5
ISO B-series sizes (B0...B9): B5
Letter: Yes
Legal: Yes
Auto Document Feeder (ADF) media weight: 50 - 128 g/m²
Maximum scan area (ADF): 216 x 1016 mm
Minimum scan area (ADF): 100 x 148 mm

Ports & interfaces

USB port: Yes
USB version: 2.0
Optional connectivity: Ethernet
Standard interfaces: USB 2.0

Network

Ethernet LAN: Yes

Power

Power supply type: AC
Power consumption (typical): 45 W
Power consumption (standby): 1.6 W
AC input frequency: 50 - 60 Hz
Input voltage: 100-240 V

Weight & dimensions

Width: 495 mm
Depth: 360 mm
Height: 217 mm
Weight: 9.8 kg

Sustainability

Sustainability certificates: ENERGY STAR

System requirements

Windows operating systems supported: Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64, Yes
Mac operating systems supported: Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -25 - 60 °C
Operating relative humidity (H-H): 10 - 80%
Storage relative humidity (H-H): 10 - 85%

Downloads

Product brochure (PDF)
