EpsonScanners

WorkForce colour doc scanner DS-6500

Part # B11B205221UPC 01034388645227.2 lb

Scanner type: Flatbed & ADF scanner 1200 x 1200 DPI
Colour scanning
A4
Maximum scan size: 215 x 1016 mm Sensor type: CCD
USB port Ethernet LAN
Power supply type: AC 45 W

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Now, your workgroup can take advantage of fast 2-sided document imaging, along with flatbed versatility, without breaking the bottom line. The affordable WorkForce DS-6500 delivers remarkable scans from 4" x 6" and up to 8.5" x 40", quickly scanning 2-sided documents in just one pass. Use the 100-sheet Automatic Document Feeder (ADF) to scan stacks of one- or 2-sided documents. Or, use the 8.5" x 11.7" flatbed to scan hard-bound books or other odd-sized items. The DS-6500 scans documents at speeds up to 25 ppm / 50 ipm1. And, its 4 line CCD sensor (RGB and black) consistently delivers vivid colors and crisp, sharp text. Plus, with productivity software included and the optional network scan module, each member of your team can access high performance scanning for critical project needs.

Key Features

- Capture large, 2-sided documents in a single scan — scans as small as 4" x 6" and as large as 8.5" x 40" via the ADF or 8.5" x 11.7" via the flatbed

- Achieve remarkable results — 4 line CCD sensor (RGB and black) for crisp, sharp text; included book spine correction eliminates distortion when scanning bound materials1

- Get more done — one-pass, duplex scanning at speeds of up to 25 ppm / 50 ipm1

- Work smarter and more efficiently — built-in 100-sheet ADF, plus auto duplex scanning

- Ultrasonic double-feed detector — automatically stops the scan job if two pages have fed together

- Convenient network scanning capabilities — use the optional networking module and included Document Capture Pro software to scan to any PC on the local network1

- Scan to popular cloud services1 — scan to SharePoint®, Evernote®, Google Docs and more

- Scan to searchable PDF — save scanned documents as PDF, PDF-A or jpeg files and more

- Do more with powerful productivity software — includes Epson® Scan, Document Capture Pro (Windows only) and ABBYY® FineReader® Sprint OCR

- One-touch scanning — create up to 30 user-programmable jobs

Specifications

Scanning

Maximum scan size: 215 x 1016 mm
Optical scanning resolution: 1200 x 1200 DPI
Colour scanning: Yes
Input colour depth: 48 bit
Output colour depth: 48 bit
ADF scan speed (b/w, A4): 25 ppm
ADF scan speed (colour, A4): 25 ppm

Design

Scanner type: Flatbed & ADF scanner
Product colour: White

Performance

Sensor type: CCD
Light source: ReadyScan LED
Daily duty cycle (max): 3000 pages

Input capacity

Standard input capacity: 100 sheets

Paper handling

Maximum ISO A-series paper size: A4
ISO A-series sizes (A0...A9): A4, A5
ISO B-series sizes (B0...B9): B5
Letter: Yes
Legal: Yes
Auto Document Feeder (ADF) media weight: 50 - 128 g/m²
Maximum scan area (ADF): 215 x 1016 mm
Minimum scan area (ADF): 100 x 148 mm

Ports & interfaces

USB port: Yes
USB version: 2.0
Optional connectivity: Ethernet
Standard interfaces: USB 2.0

Network

Ethernet LAN: Yes

Power

Power supply type: AC
Power consumption (typical): 45 W
Power consumption (standby): 12 W
AC input frequency: 50 - 60 Hz
Input voltage: 100-240 V

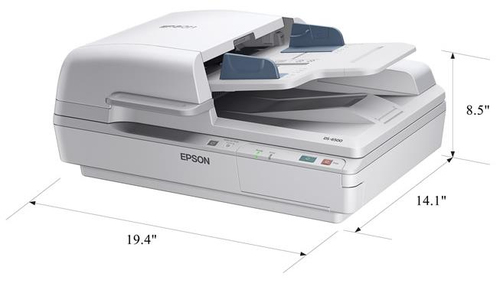

Weight & dimensions

Width: 492 mm
Depth: 360 mm
Height: 217 mm
Weight: 9.8 kg

Sustainability

Sustainability certificates: ENERGY STAR

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 10 - 80%
Storage relative humidity (H-H): 10 - 85%
