EatonUninterruptible Power Supplies (UPSs)

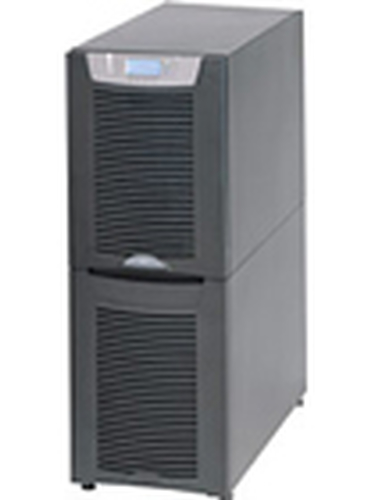

9155 uninterruptible power supply (UPS) 12 kVA 10800 W
- 12 kVA 10800 W
- Sealed Lead Acid (VRLA)
- Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The Eaton 9155 is a Double-Conversion Online, Split-Phase UPS and requires a hardwired input connection of 200-240VAC with Neutral or with Optional Input Transformer Module. The optional input transformer module is used to provide a neutral connection for the UPS input when none exists in present building wiring. Output Voltage is 100/200, 110/220, 120/240 with 180° phase displacement or 120/208, 127/220 with 120° phase displacement.
Specifications
Features
- Output power capacity
- 12 kVA
- Output power
- 10800 W
- Input operation voltage (min)
- 200 V
- Input operation voltage (max)
- 240 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 100 V
- Output operation voltage (max)
- 220 V
- Response time
- 1 ms
- Efficiency
- 91%
- Power factor
- 0.99
- Input current Total Harmonic Distortion (THD)
- 5%
- Noise level
- 53 dB
- Audible alarm(s)
- Yes
Ports & interfaces
- RS-232 ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Number of battery cells
- 32
- Typical backup time at full load
- 6 min
- Typical backup time at half load
- 18 min
- Battery recharge time
- 3 h
Design
- Form factor
- Tower
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 25 °C
- Operating altitude
- 0 - 1000 m
Certificates
- Certification
- IEC 62040-2, FCC Part 15, ICES-003, VCCI ISO 9001: 2000, ISO 14001:1996 UL, cUL, CSA, CE, NOM-NYCE
Safety regulation & standards
- Safety
- NOM-0190SCFI-1993, UL 1778, CSA C22.2, No. 107.3; EN 5502 Class A, IEC 60950, IEC 62040-1-1
Weight & dimensions
- Width
- 304.8 mm
- Depth
- 856 mm
- Height
- 817.9 mm
- Weight
- 159.7 kg
Other features
- Battery type
- 9Ah
- Nominal output voltage
- 208 V
- Relative humidity
- 0 - 95%
- Overload protection
- Yes
