Home/Catalogue/Eaton/K40811000000000
EatonUninterruptible Power Supplies (UPSs)
PW9155-8, 11mins, 208V
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

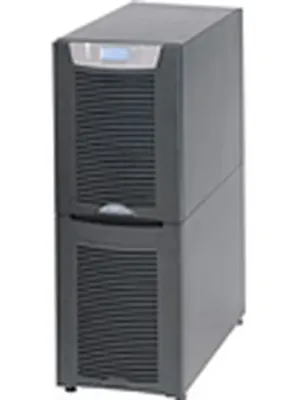

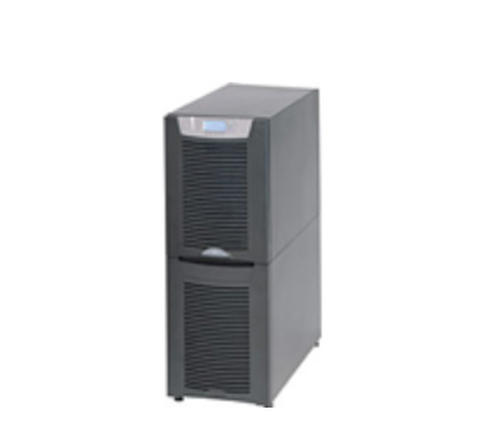

The Eaton 9155 is a Double-Conversion Online, Split-Phase UPS and requires a hardwired input connection of 200-240VAC with Neutral or with Optional Input Transformer Module. The optional input transformer module is used to provide a neutral connection for the UPS input when none exists in present building wiring. Output Voltage is 100/200, 110/220, 120/240 with 180° phase displacement or 120/208, 127/220 with 120° phase displacement.
Specifications
Features
- Output power capacity
- 8 kVA
- Output power
- 7200 W
- Input operation voltage (min)
- 200 V
- Input operation voltage (max)
- 240 V
- Output operation voltage (min)
- 100 V
- Output operation voltage (max)
- 240 V
- Efficiency
- 92%
Ports & interfaces
- Power plug
- Terminal
Design
- Form factor
- Tower
- Product colour
- Black
Weight & dimensions
- Width
- 304.8 mm
- Depth
- 856 mm
- Height
- 817.8 mm
- Weight
- 159.7 kg
Downloads
