EatonUninterruptible Power Supplies (UPSs)

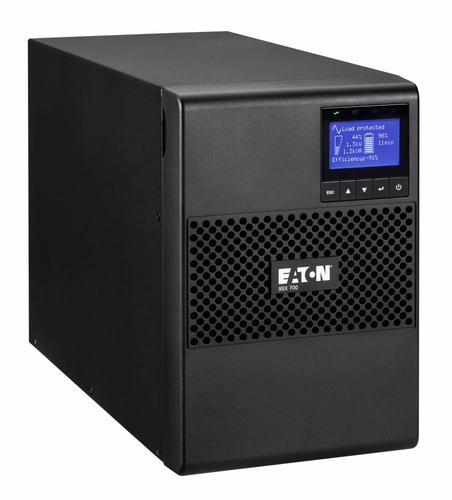

9SX UPS 700VA 630 Watt
- Double-conversion (Online)
- 0.9 kVA 630 W
- Waveform: Sine
- 6 AC outlet(s)
- Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 0.9 kVA
- Output power
- 630 W
- Waveform
- Sine
- Input operation voltage (min)
- 120 V
- Input operation voltage (max)
- 120 V
- Input frequency
- 40/70 Hz
- Output operation voltage (min)
- 200 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Number of input phases
- 1
- Number of output phases
- 1
- Power factor
- 0.9
- Output power factor
- 0.9
- Power protection features
- Overdischarge
Ports & interfaces
- AC outlets quantity
- 6 AC outlet(s)
- USB port
- Yes
- USB port type
- USB Type-B
- Serial interface
- Yes
- Serial interface type
- RS-232
Battery

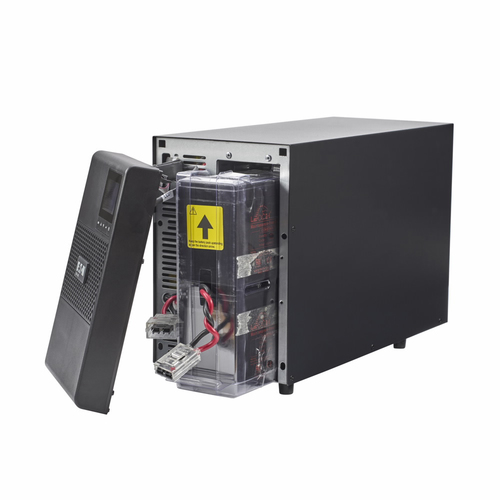

- Hot-swap battery
- Yes
Design
- Form factor
- Tower
- Product colour
- Black
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Certificates
- Certification
- cULus Listed
Weight & dimensions
- Width
- 160 mm
- Depth
- 353.1 mm
- Height
- 251.5 mm
- Weight
- 12 kg
