EatonUninterruptible Power Supplies (UPSs)

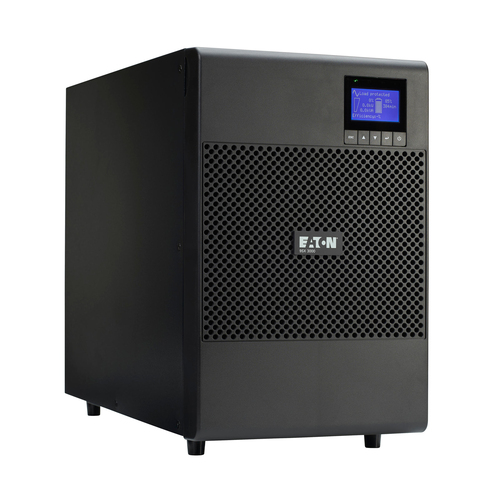

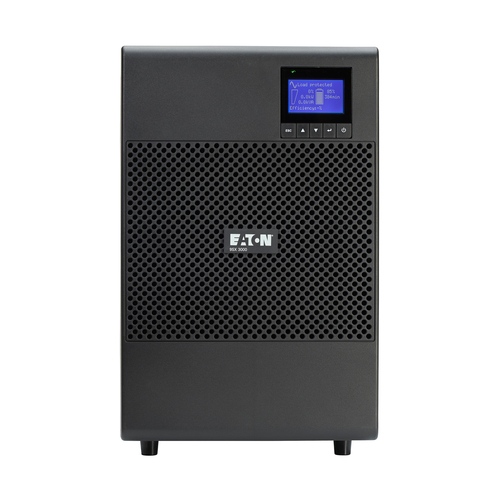

9SX3000G uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)
- Double-conversion (Online)
- 3 kVA 2700 W
- Waveform: Square
- 9 AC outlet(s)
- Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 3 kVA
- Output power
- 2700 W
- Waveform
- Square
- Input frequency
- 40/70 Hz
- Output operation voltage (min)
- 200 V
- Output operation voltage (max)
- 250 V
- Output frequency
- 50/60 Hz
- Input power factor
- 99
- Output power factor
- 9

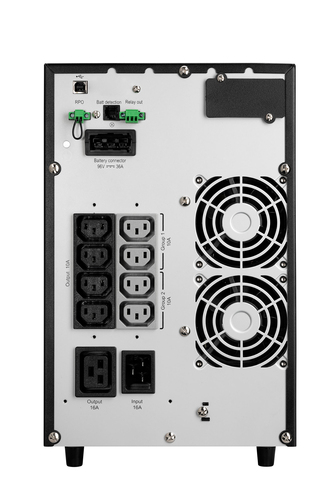

Ports & interfaces
- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 9 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- Serial interface
- Yes
- Serial interface type
- RS-232
- Serial ports quantity
- 1
- RS-232 ports
- 1
Design
- Form factor
- Tower
- Cable length
- 0.244 m
- Built-in fan
- Yes
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Certificates
- Certification
- cULus Listed

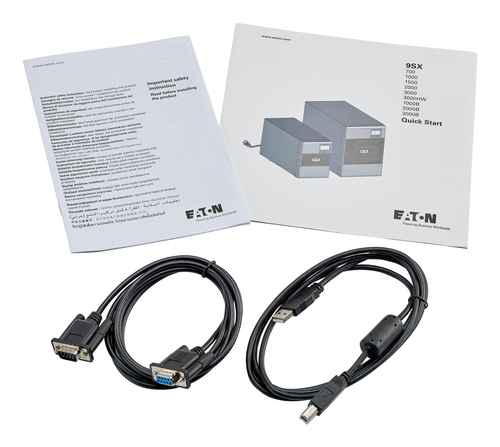

Packaging content
- Cables included
- Serial, USB cable
- Quick installation guide
- Yes
Weight & dimensions
- Width
- 20.3 mm
- Depth
- 41.1 mm
- Height
- 33 mm
- Weight
- 33.4 g
